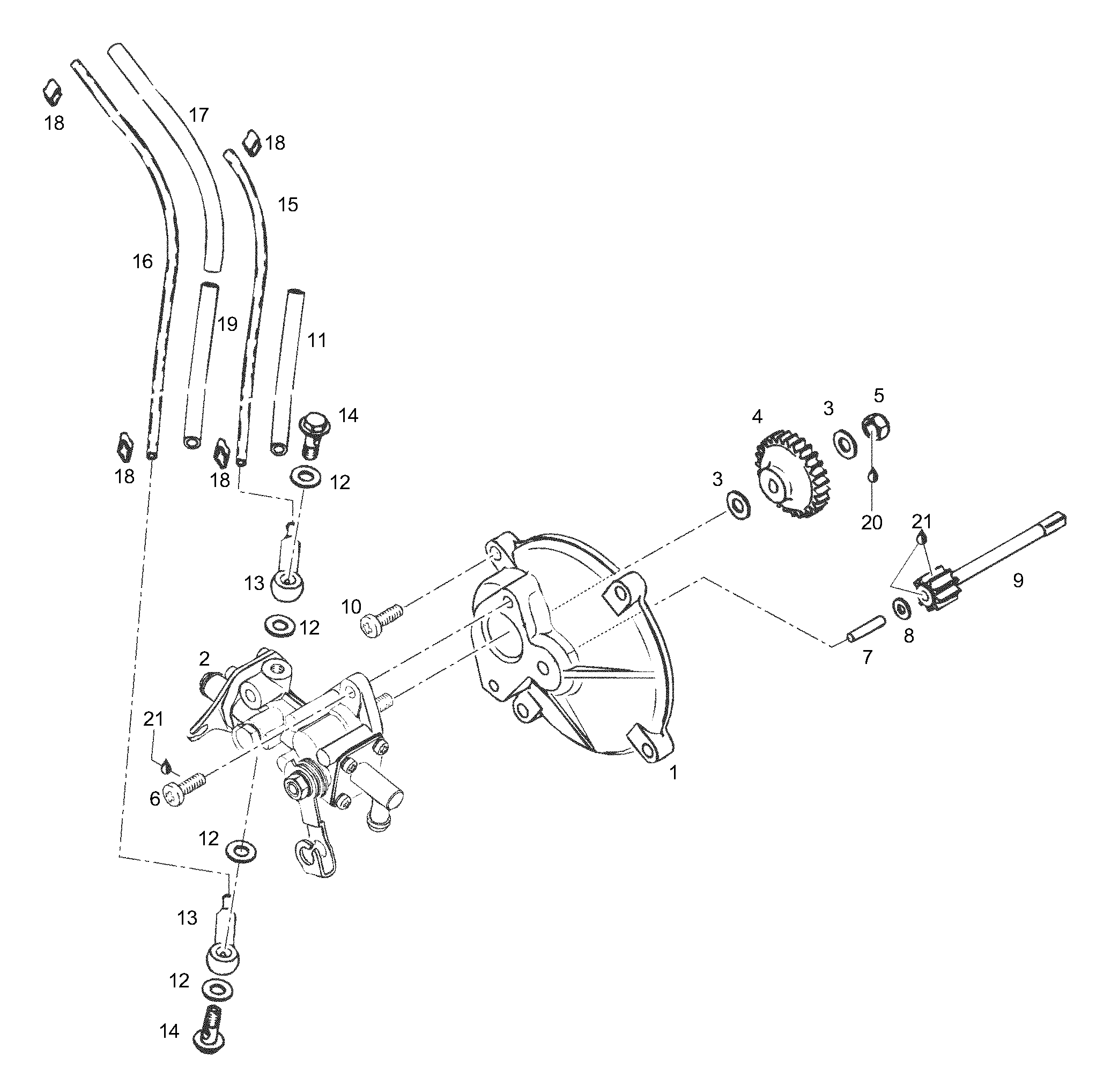

01- Oil Pump для BRP Lynx 5900 FCE - 2001
-
№АртикулНазвание
-
1420910160 Mounting flangeMounting flange
-
2420887993 Oil pump assyOil pump assy
-
3420927945 WasherWasher
-
4420935930 Gear, Z-27Gear, Z-27
-
5420842040 Nut elastic M6Nut elastic M6
-
6420841970 ScrewScrew
-
7420832260 Needle pinNeedle pin
-
8420244073 WasherWasher
-
9420935970 Gear Z-9Gear Z-9
-
10420841970 Screw M5.5x16Screw M5.5x16
-
11420960750 Isolating hoseIsolating hose
-
12420227500 Gasket ringGasket ring
-
13420956010 Check valve assyCheck valve assy
-
14420241830 Banjo bolt M6x16Banjo bolt M6x16
-
15420960563 Oil line MAG. sideOil line MAG. side
-
16420960045 Oil line P.T.O. sideOil line P.T.O. side
-
17420960729 Isolation hose P.T.O.Isolation hose P.T.O.
-
18420853840 ClampClamp
-
19420960728 Isolation hose P.T.O.Isolation hose P.T.O.
-
20420899785 Loctite 221 violetLoctite 221 violet
