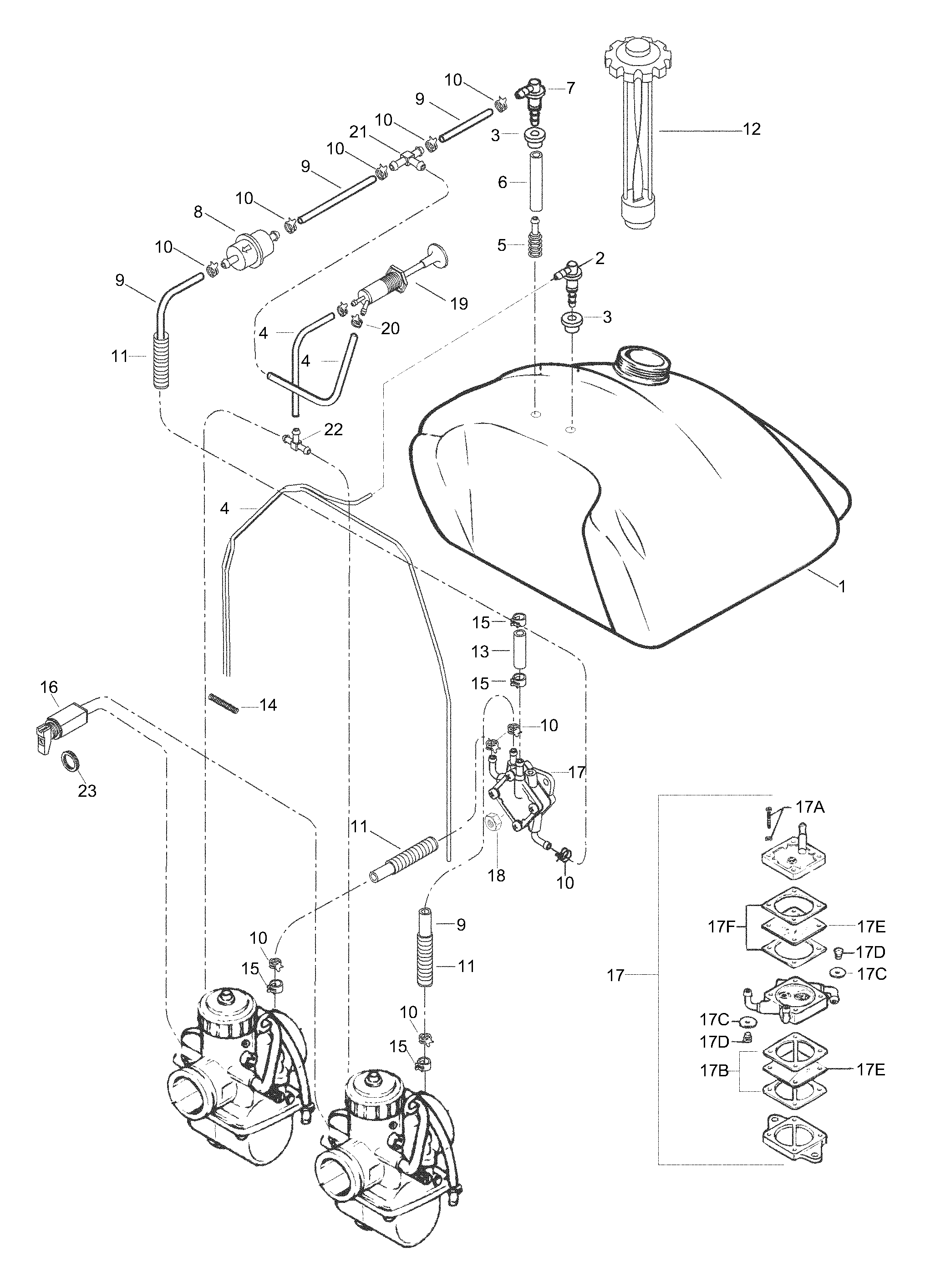

02- Fuel Tank для BRP Lynx 5900 FCE - 2001
-
№АртикулНазвание
-
1519393 Fuel tank 42 lFuel tank 42 l
-
2533535 Connector-maleConnector-male
-
328037 GrommetGrommet
-
439035 Airpipe 5/3Airpipe 5/3
-
5414872100 Fuel FilterFuel Filter
-
639048 hose 12.5/7.5hose 12.5/7.5
-
75341709 Connector-maleConnector-male
-
8414363600 Fuel filterFuel filter
-
939004 Fuel hose 8/5Fuel hose 8/5
-
1027086 ClampClamp
-
1128012 Spiral tubeSpiral tube
-
12572161200 CapCap
-
1339001 Fuel hose 11/6Fuel hose 11/6
-
1425006 SpringSpring
-
15414420700 ClampClamp
-
16535482 ChokeChoke
-
17c404902100 GrommetGrommet
-
17d275500042 ValveValve
-
17E404902200 DiaphragmDiaphragm
-
17F404902400 GasketGasket
-
1719058 Fuel pumpFuel pump
-
17b404902300 GasketGasket
-
1833010 Nut elastic M6Nut elastic M6
-
19415060500 PrimerPrimer
-
20543230 ClampClamp
-
2121067 T-pieceT-piece
-
2221062 T-pieceT-piece
-
23414977200 Plastic nutPlastic nut
