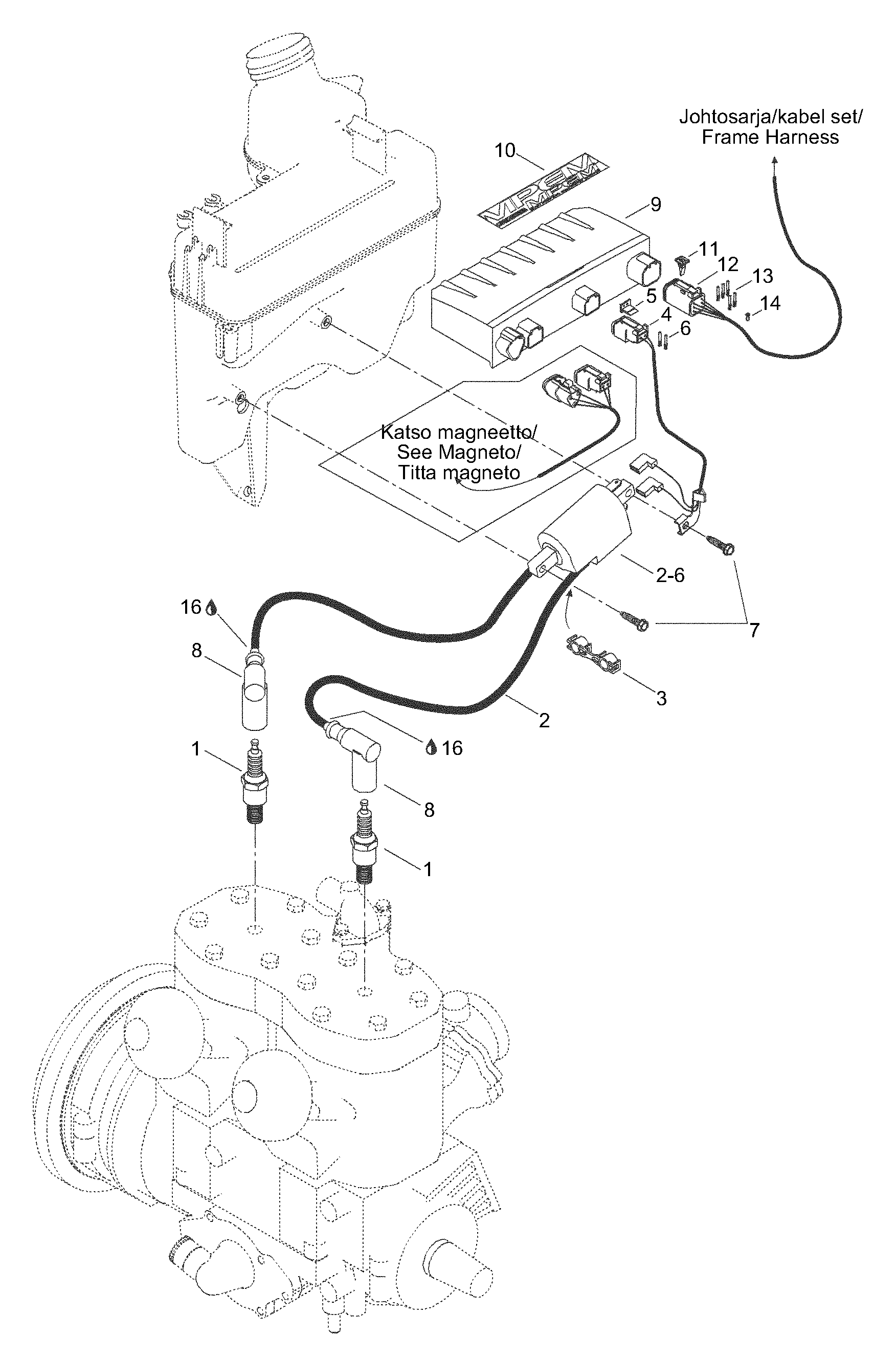

01- DPM для BRP Lynx Enduro 700 Special - 2001
-
№АртикулНазвание
-
1414961100 Spark plug BR9ESSpark plug BR9ES
-
2512059039 Ignition coil assy. Includes items 2 thru 6Ignition coil assy. Includes items 2 thru 6
-
2278001268 Spark plug wireSpark plug wire
-
3410914600 Plastic clipPlastic clip
-
4409207300 Female terminal housinFemale terminal housin
-
5409207100 Female lock (2 circuits)Female lock (2 circuits)
-
6278000632 Female terminalFemale terminal
-
740375 ScrewScrew
-
8278000237 Spark plug protectorSpark plug protector
-
9512059383 Calibration moduleCalibration module
-
10516000245 Label, MPEMLabel, MPEM
-
11278000737 Female lock (6 circuits)Female lock (6 circuits)
-
12278000736 Female terminal housinFemale terminal housin
-
13278000632 Female terminalFemale terminal
-
14293000052 PlugPlug
