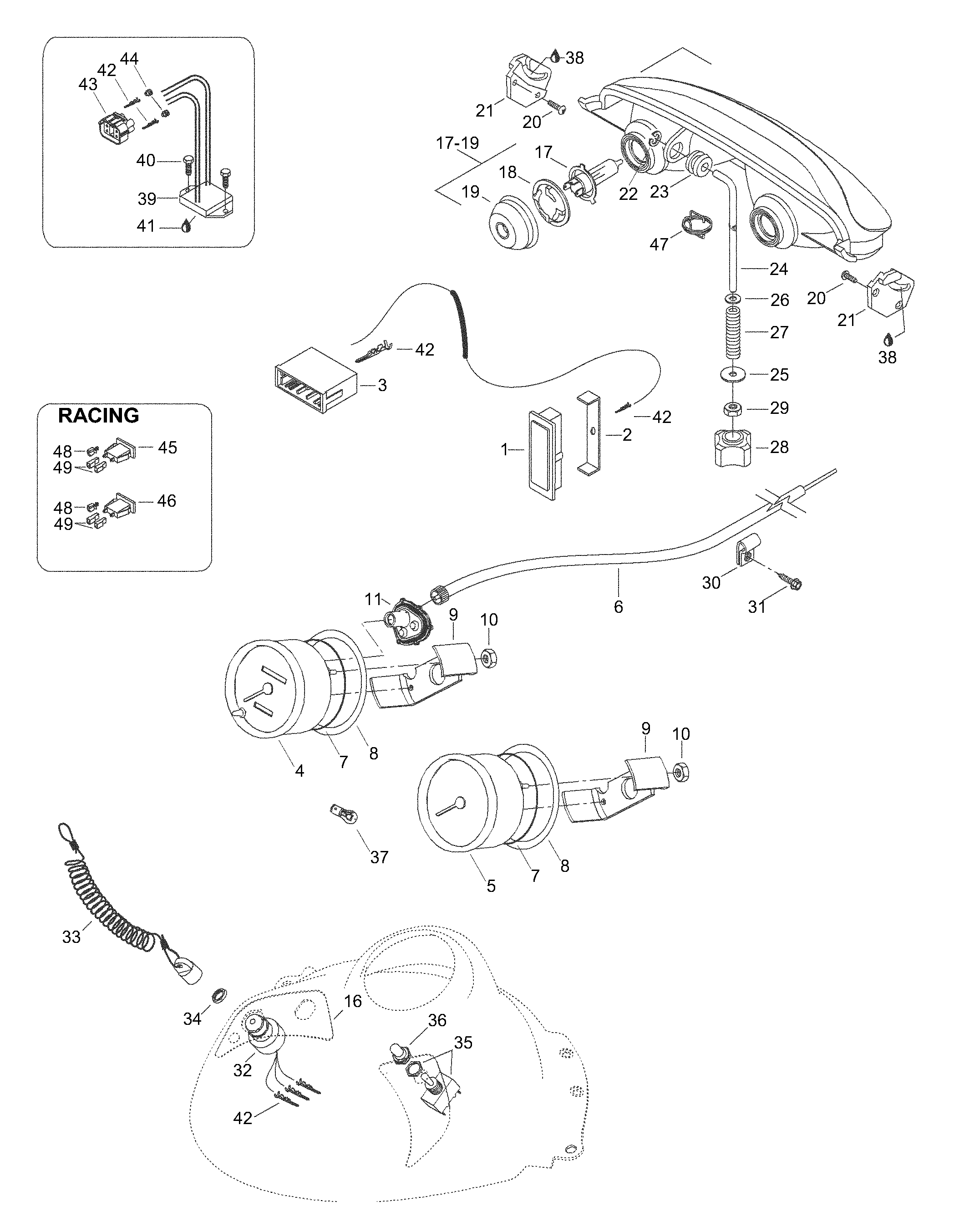

10- Electric для BRP Lynx Enduro 700 Special - 2001
-
№АртикулНазвание
-
15447089 Signal lamp assySignal lamp assy
-
25442157 Fit plateFit plate
-
342036 Connector HousingConnector Housing
-
4515175335 Speedometer whiteSpeedometer white
-
5515175340 Tachometer whiteTachometer white
-
6415101500 Speedometer cableSpeedometer cable
-
7414807100 O-ringO-ring
-
8517258500 WasherWasher
-
9414806500 HolderHolder
-
1033062 Nut M6Nut M6
-
11515175400 Drive angleDrive angle
-
17515175158 Halogen headlamp ass. Includes items 17 thru 19Halogen headlamp ass. Includes items 17 thru 19
-
17410504401 Halogen bulb 60/55WHalogen bulb 60/55W
-
18410608300 Bulb holderBulb holder
-
19410607100 CoverCover
-
2040177 Headlamp screwHeadlamp screw
-
21517289400 L.H. headlamp supportL.H. headlamp support
-
21517289300 R.H. headlamp supportR.H. headlamp support
-
22732610072 Nut pushNut push
-
23415100800 GrommetGrommet
-
24517295800 Adjuster rodAdjuster rod
-
2520038 WasherWasher
-
2620003 WasherWasher
-
27415100600 SpringSpring
-
28515175548 HandleHandle
-
2933010 Nut elastic M6Nut elastic M6
-
3027025 ClampClamp
-
3140870 ScrewScrew
-
32515175145 D.E.S.S switchD.E.S.S switch
-
33515166900 D.E.S.S. capD.E.S.S. cap
-
34278000508 Safety switch nutSafety switch nut
-
35410107300 SwitchSwitch
-
36515175281 Rubber cover for switchRubber cover for switch
-
37410504200 Instrumentation bulbInstrumentation bulb
-
38413707500 Grease tube LMZ 400 gGrease tube LMZ 400 g
-
39515175491 Regulator AssyRegulator Assy
-
4040322 Screw M6x35Screw M6x35
-
41413707500 Litium-greaseLitium-grease
-
4242603 Male terminalMale terminal
-
4342604 Connector HousingConnector Housing
-
4442605 SealSeal
-
475447238 SpringSpring
