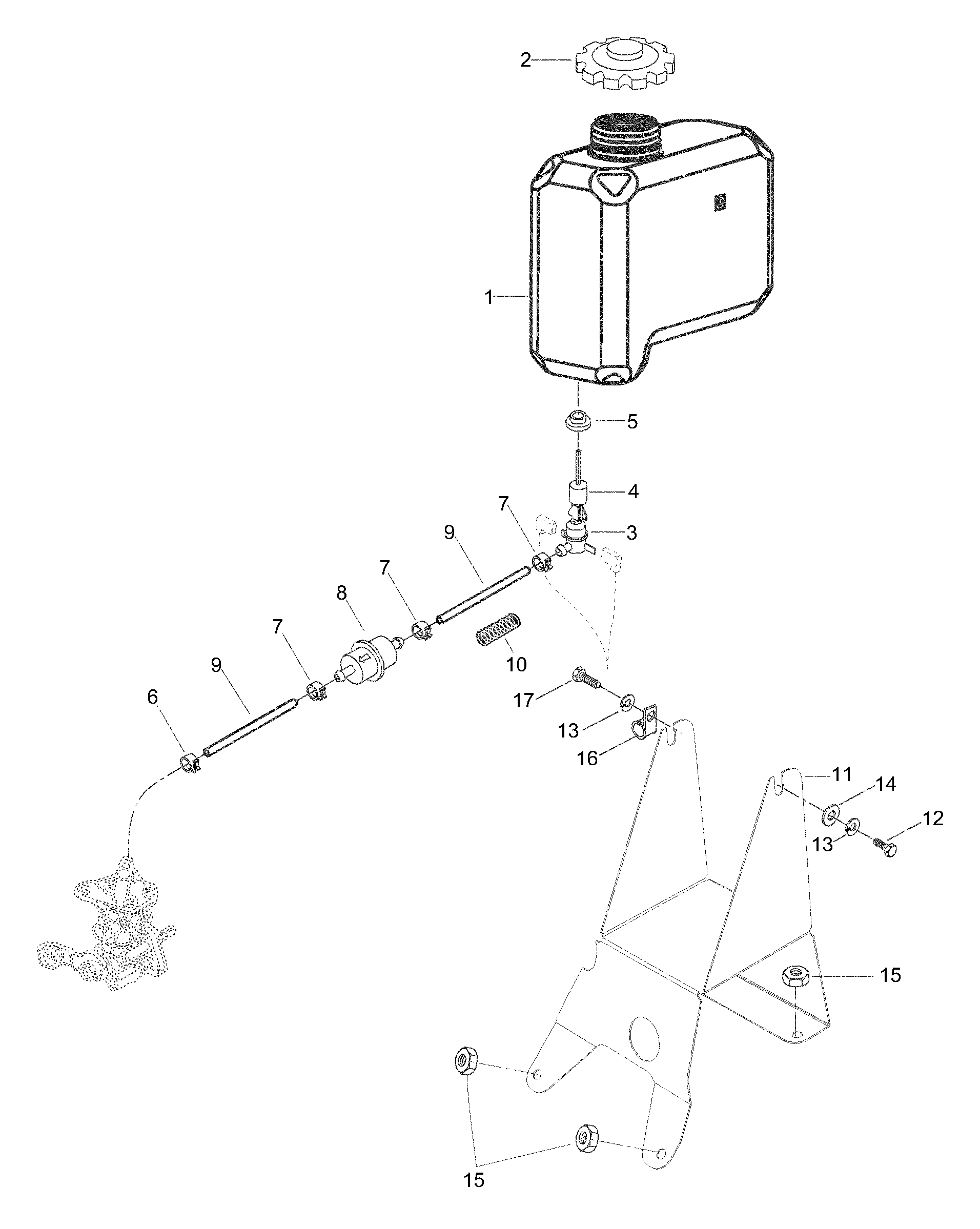

01- Oil Tank для BRP Lynx Forest - 2001
-
№АртикулНазвание
-
1572106700 Oil tankOil tank
-
2572071000 CapCap
-
3414681800 Oil lever sensorOil lever sensor
-
4414681900 FloatFloat
-
5570023000 GrommetGrommet
-
6414420700 ClampClamp
-
727119F ClampClamp
-
8414536500 Oil filterOil filter
-
939046 Hose 11/8Hose 11/8
-
10250003 SpringSpring
-
115246036 Oil tank supportOil tank support
-
1240114 Screw M6x10Screw M6x10
-
1320052 Spring washerSpring washer
-
1420009 WasherWasher
-
1533200 Elastic flanged nutElastic flanged nut
-
1627039 ClampClamp
-
1740114 Screw M6x12Screw M6x12
