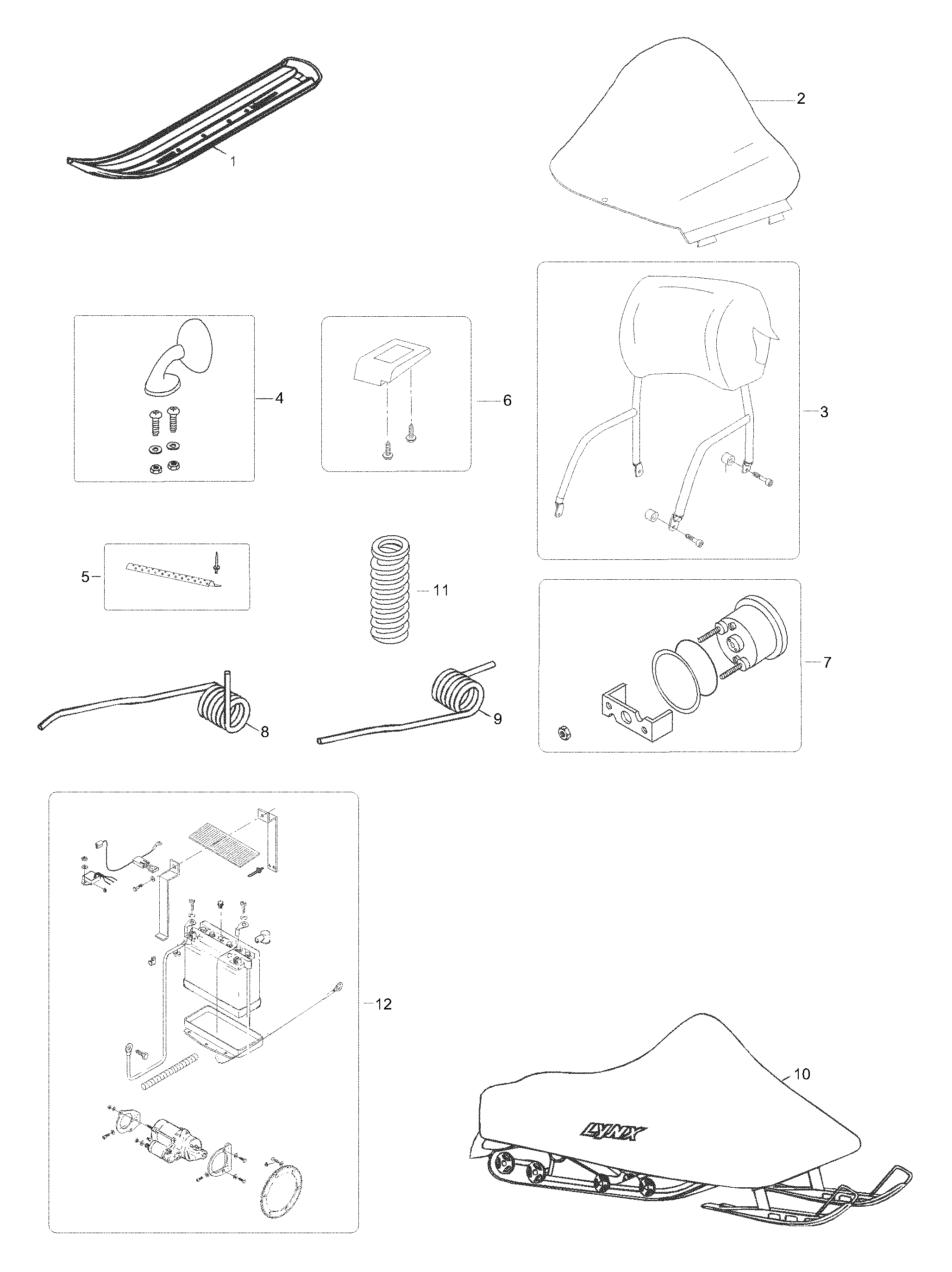

11- Accessories для BRP Lynx Forest - 2001
-
№АртикулНазвание
-
15144415 Skiliner, wideSkiliner, wide
-
25241686 Windscreen, lowWindscreen, low
-
25245105 Tuulilasi, mediumTuulilasi, medium
-
25343754 Windscreen, highWindscreen, high
-
35346626 Back rest kitBack rest kit
-
4211216501 Mirror assyMirror assy
-
55346807 Non-skid runn.board kitNon-skid runn.board kit
-
6861752800 Footrest kitFootrest kit
-
75346651 Tachometer assyTachometer assy
-
8538798 Spring R.H. d=9Spring R.H. d=9
-
8538797 Spring L.H. d=9Spring L.H. d=9
-
8529896 Spring R.H. d=10Spring R.H. d=10
-
8529895 Spring L.H. d=10Spring L.H. d=10
-
95342228 Spring R.H. d=11Spring R.H. d=11
-
95342229 Spring L.H. d=11Spring L.H. d=11
-
107820062 CoverCover
-
11414803000 Spring, 11,4 N/mmSpring, 11,4 N/mm
-
115240895 Spring, 18 N/mmSpring, 18 N/mm
-
11529756 Spring, 22 N/mmSpring, 22 N/mm
-
125346624 Electric starter kitElectric starter kit
