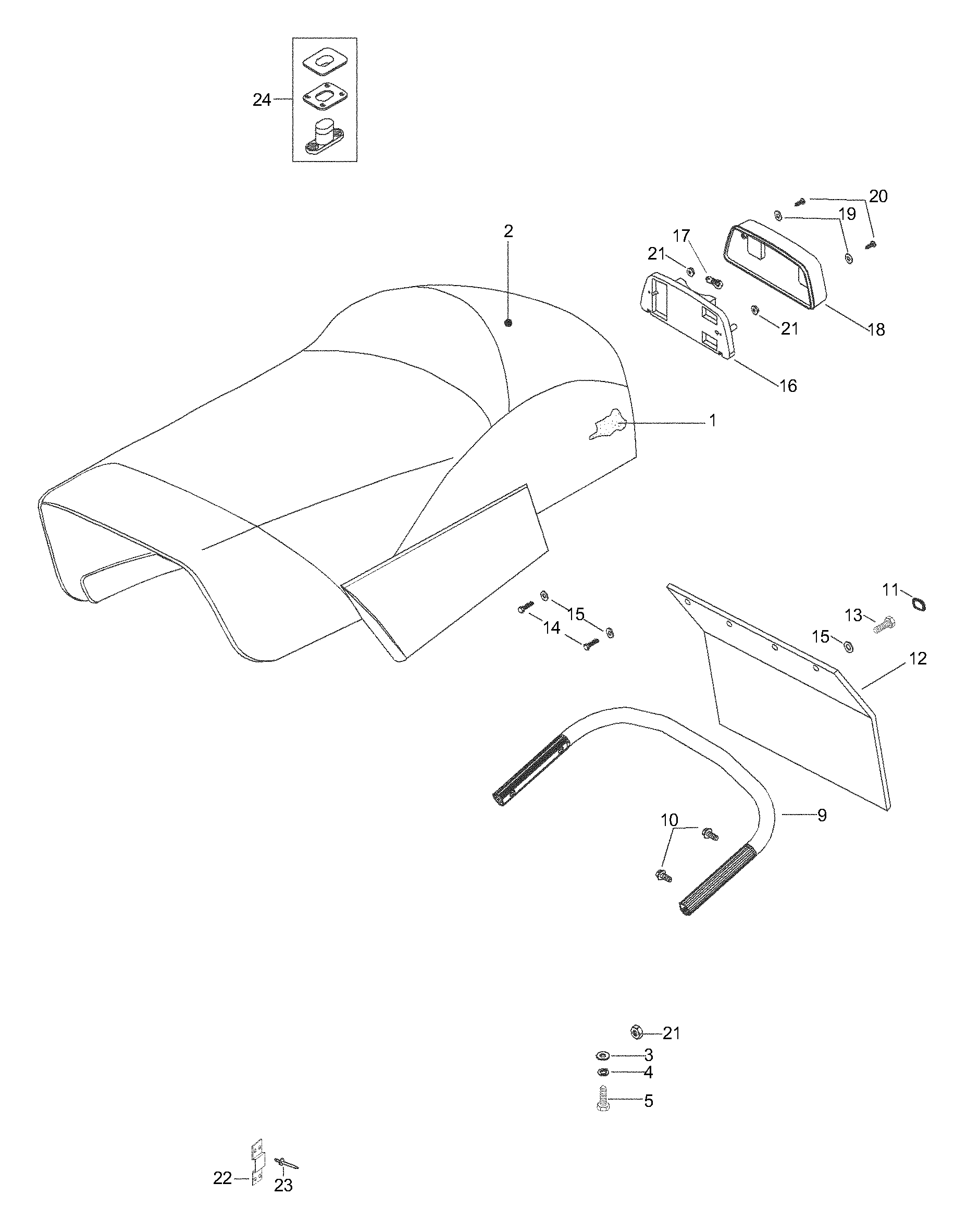

09- Body для BRP Lynx Rave Cross - 2001
-
№АртикулНазвание
-
15243866 Seat foamSeat foam
-
25146537 Seat coverSeat cover
-
320010 WasherWasher
-
420014 Lock washerLock washer
-
540047 Screw M8x30Screw M8x30
-
9518322438 Rear bumper, brightRear bumper, bright
-
1040336 Screw M8x20Screw M8x20
-
11415073300 CapCap
-
125246131 Snow guardSnow guard
-
1340078 Screw M6x22Screw M6x22
-
1440002 Screw M6x40Screw M6x40
-
1520009 WasherWasher
-
165341214 Taillamp assy. Includes items 16 thru 21Taillamp assy. Includes items 16 thru 21
-
16414979400 Taillamp housingTaillamp housing
-
17410504000 BulbBulb
-
18414513700 LensLens
-
19414516400 WasherWasher
-
2040613 ScrewScrew
-
2133200 Nut M6Nut M6
-
225447025 Seat fastening plateSeat fastening plate
-
2336489 RivetRivet
-
245444390 Seat BuckleSeat Buckle
