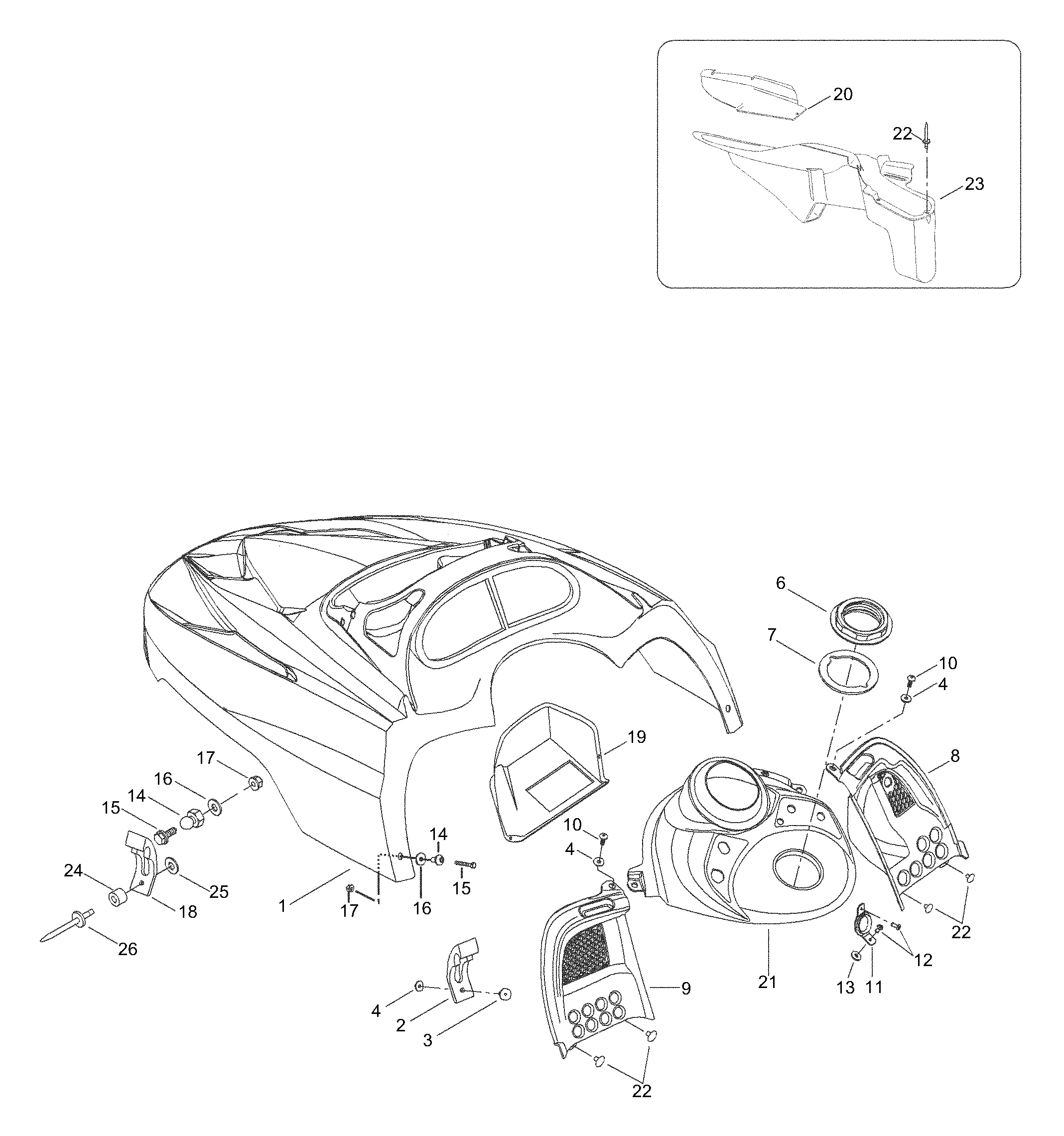

09- Hood для BRP Lynx Rave Cross - 2001
-
№АртикулНазвание
-
15146851 Hood, redHood, red
-
2570027100 Hood latchHood latch
-
336037 RivetRivet
-
420008 WasherWasher
-
6517302043 Console nutConsole nut
-
75447116 GasketGasket
-
8517302005 R.H.consoleR.H.console
-
9517302006 L.H.consoleL.H.console
-
10732600030 ScrewScrew
-
11517302129 Rope guideRope guide
-
1236002 RivetRivet
-
13517302286 Rubber stopperRubber stopper
-
14542307 Counter rollCounter roll
-
1540168 Screw M4x25Screw M4x25
-
1620037 WasherWasher
-
1733008 Nut elastic M4Nut elastic M4
-
18531955 Hood latchHood latch
-
195347586 Air intake channelAir intake channel
-
205347587 Cover plateCover plate
-
21517302464 Center consoleCenter console
-
2236036 RivetRivet
-
235247084 Air intake, brakeAir intake, brake
-
24543417 SleeveSleeve
-
25543392 WasherWasher
-
2636072 RivetRivet
