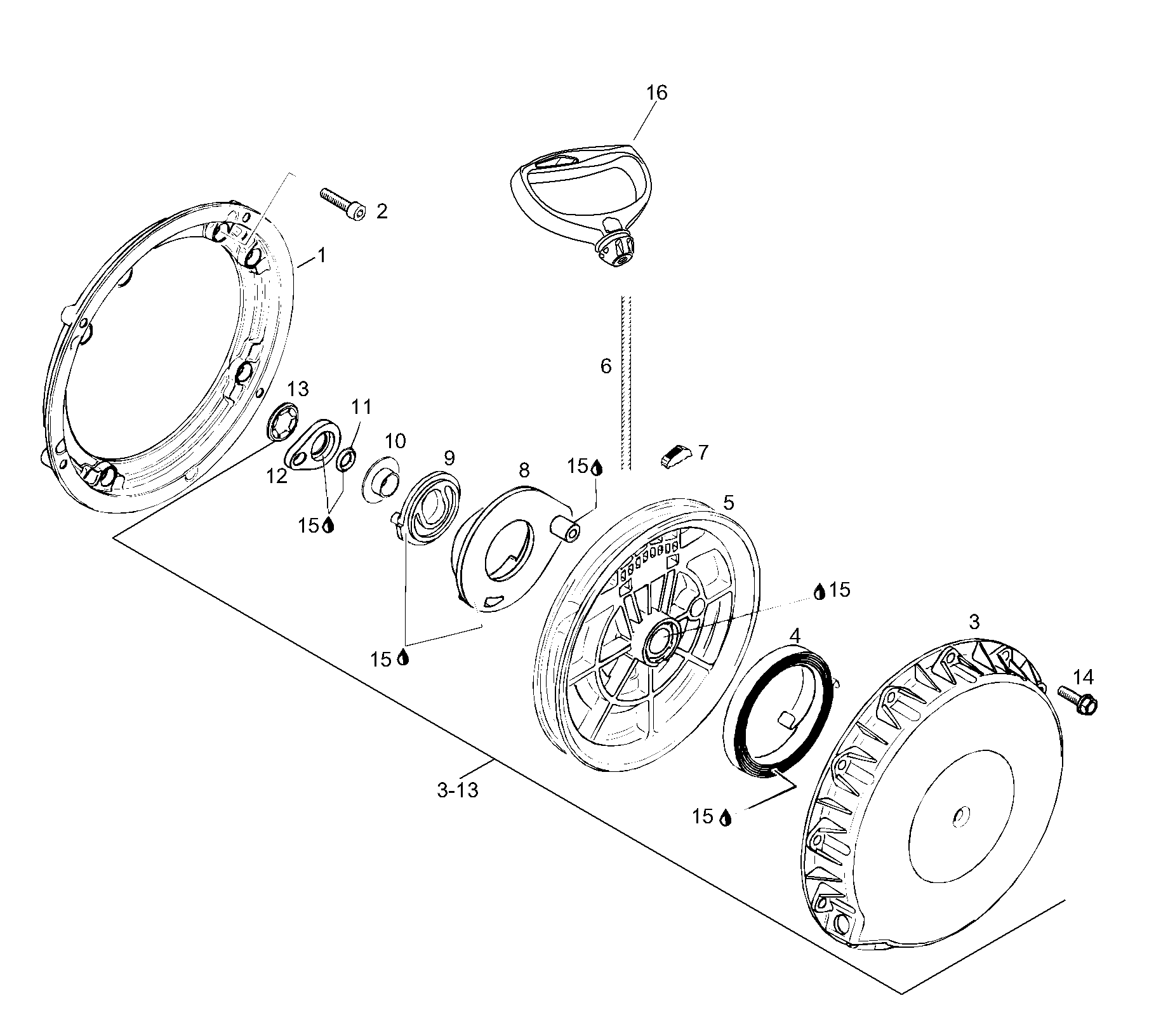

04- Rewind Starter для BRP Lynx Ranger LCE - 2002
-
№АртикулНазвание
-
1420810865 Connecting flangeConnecting flange
-
2420241236 Screw M6x16Screw M6x16
-
3420887445 Rewind starter assy. Includes items 3 thru 13Rewind starter assy. Includes items 3 thru 13
-
3420811400 Starter housing assyStarter housing assy
-
4420939115 Spring assySpring assy
-
5420852285 Rope sheaveRope sheave
-
6420852491 Starter rope (2.2 m)Starter rope (2.2 m)
-
6412500100 Starter rope (30 m)Starter rope (30 m)
-
7420852070 KeyKey
-
8420852297 PawlPawl
-
9420852303 Pawl lockPawl lock
-
16572084400 HandleHandle
