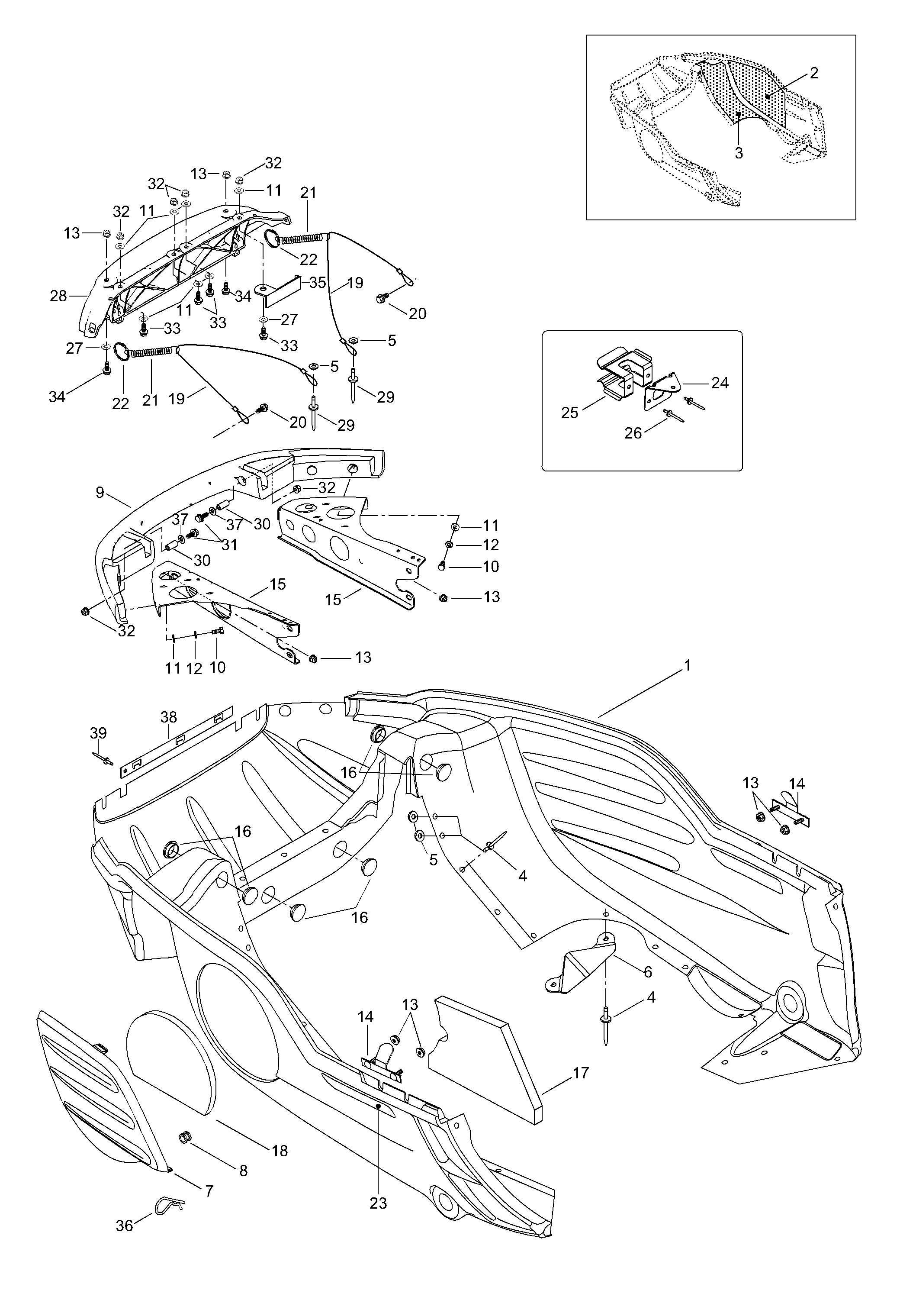

09- Bottom Pan для BRP Lynx Ranger LCE - 2002
-
№АртикулНазвание
-
15148036 Bottom pan, blackBottom pan, black
-
2514052718 IsolationIsolation
-
3514052719 IsolationIsolation
-
436037 RivetRivet
-
520008 WasherWasher
-
6502006563 Deflector snowDeflector snow
-
7502006506 Bottom pan doorBottom pan door
-
8414036300 GrommetGrommet
-
9502006536 Bumper, blackBumper, black
-
1040029 Screw M6x16Screw M6x16
-
1120009 WasherWasher
-
1220052 Spring washerSpring washer
-
1333200 Elastic flange nut M6Elastic flange nut M6
-
14502006645 BracketBracket
-
15502006597 R.H. supportR.H. support
-
15502006596 L.H. supportL.H. support
-
16414916600 Nylon capNylon cap
-
17502006558 Bottom foamBottom foam
-
18502006559 Bottom pan door foamBottom pan door foam
-
19549882 Retainer cableRetainer cable
-
2040177 Hex. tapping screwHex. tapping screw
-
21415043300 SpringSpring
-
22415058300 RingRing
-
23415064400 R.H. reflector, yellowR.H. reflector, yellow
-
23415064401 L.H. reflector, yellowL.H. reflector, yellow
-
24502006599 BracketBracket
-
25517281905 Belt supportBelt support
-
2636489 RivetRivet
-
2720117 Washer, blackWasher, black
-
28517302631 Hinge-halfHinge-half
-
2936036 RivetRivet
-
30517302179 SleeveSleeve
-
3140003 Screw M6x35Screw M6x35
-
3233010 Nut elastic M6Nut elastic M6
-
3340030 Screw M6x20Screw M6x20
-
3440381 Allen screw M6x20Allen screw M6x20
-
355448263 R.H. BracketR.H. Bracket
-
355448264 L.H. BracketL.H. Bracket
-
36414575600 PinPin
-
3720003 WasherWasher
-
38502006647 Support plateSupport plate
-
3936005 RivetRivet
