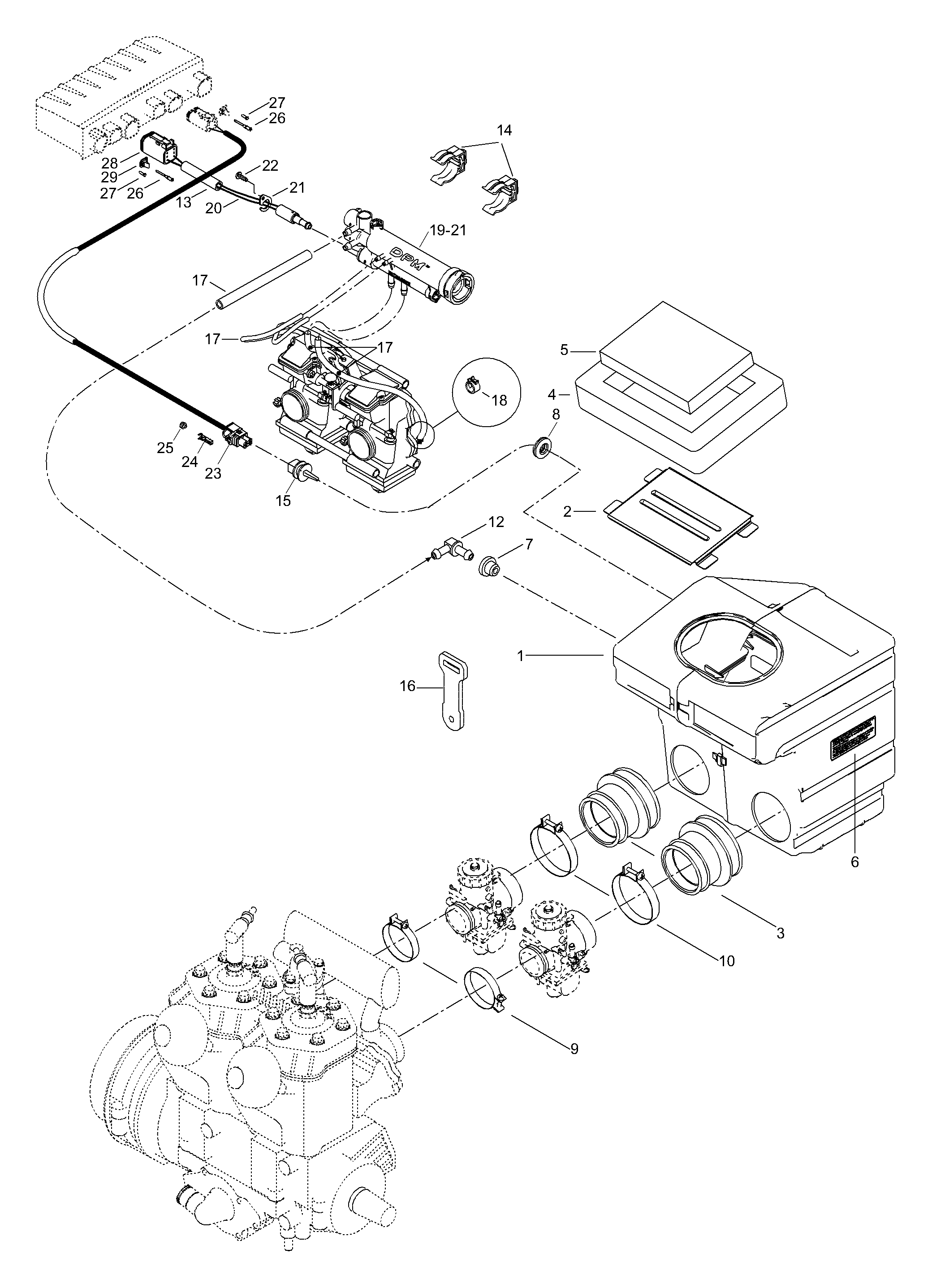

01- Air Silencer для BRP Lynx Rave Cross - 2002
-
№АртикулНазвание
-
1508000263 Air intake assy. Includes items 1 thru 8Air intake assy. Includes items 1 thru 8
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9512059305 ClampClamp
-
9512059497 Pressure manifold assy. Includes items 9 thru 2Pressure manifold assy. Includes items 9 thru 2
-
1027046 ClampClamp
-
12414580600 ConnectorConnector
-
13404161880 HoseHose
-
14512058919 SupportSupport
-
15270600000 Air temperature sensorAir temperature sensor
-
16512059372 LatchLatch
-
1739004 HoseHose
-
18414554800 ClampClamp
-
20515175271 Harness assyHarness assy
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Screw K40x10Screw K40x10
-
23278001005 Connector housingConnector housing
-
24278000998 Female terminalFemale terminal
-
25278000999 SealSeal
-
26278000632 Female terminalFemale terminal
-
27293000052 PlugPlug
-
28515175673 Connector housingConnector housing
-
29409014900 LockLock
