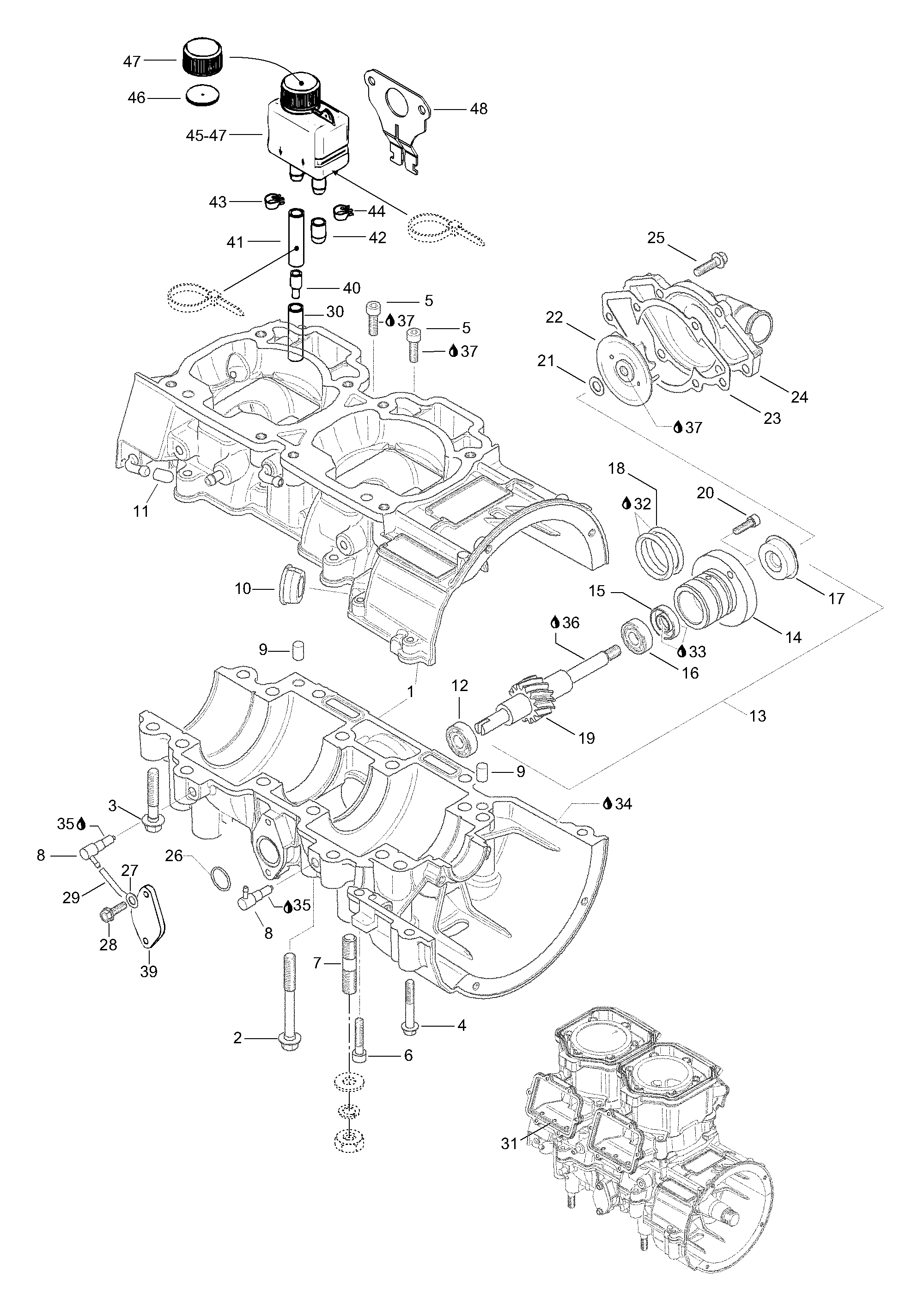

05- Crankcase для BRP Lynx Rave Cross - 2002
-
№АртикулНазвание
-
1420888084 Crankcase assy. Includes items 1 thru 12Crankcase assy. Includes items 1 thru 12
-
2420640836 Screw M8x75Screw M8x75
-
3420640431 Screw M8x45Screw M8x45
-
4420640311 Screw M6x45Screw M6x45
-
5420840401 Allen screw M6x22Allen screw M6x22
-
6420840880 Allen screw M6x30Allen screw M6x30
-
7420941644 Stud M10x23Stud M10x23
-
8420956510 Checkvalve assyCheckvalve assy
-
9420632010 PinPin
-
10420860965 Cable grommetCable grommet
-
11420960770 Closure capClosure cap
-
12420232100 Ball bearingBall bearing
-
13420837421 Waterpump/oilpump shaft. Includes items 13 thru 1Waterpump/oilpump shaft. Includes items 13 thru 1
-
15420230195 Oil sealOil seal
-
16420232100 Ball bearingBall bearing
-
17420650370 Rotary sealRotary seal
-
18420950890 O-ringO-ring
-
20420840511 Allen screw M5x16Allen screw M5x16
-
21420227945 Thrust washerThrust washer
-
22420222505 ImpellerImpeller
-
23420931810 GasketGasket
-
24420922630 Pump housingPump housing
-
25420240031 Screw M6x25Screw M6x25
-
26420230400 O-ringO-ring
-
2720008 WasherWasher
-
2840026 Taptite screw M5x12Taptite screw M5x12
-
29414413800 Oil lineOil line
-
31300079304 Short block engineShort block engine
-
33420899271 Klueber petamo, 250gr.Klueber petamo, 250gr.
-
34420297906 Sealing compound, 310mlSealing compound, 310ml
-
35420899788 Loctite, green, 5gr.Loctite, green, 5gr.
-
36320007 Transmission oilTransmission oil
-
37293800060 Loctite 243, 10mlLoctite 243, 10ml
-
39548957 Cover plateCover plate
-
40420874370 Reduction fittingReduction fitting
-
41420956237 Oil lineOil line
-
42420960279 CapCap
-
43420951260 ClampClamp
-
44420951240 ClampClamp
-
45420956240 Oil tank assy. Includes items 45 thru 4Oil tank assy. Includes items 45 thru 4
-
46420850350 GasketGasket
-
47420956250 CapCap
-
48548872043 Oil tank supportOil tank support
