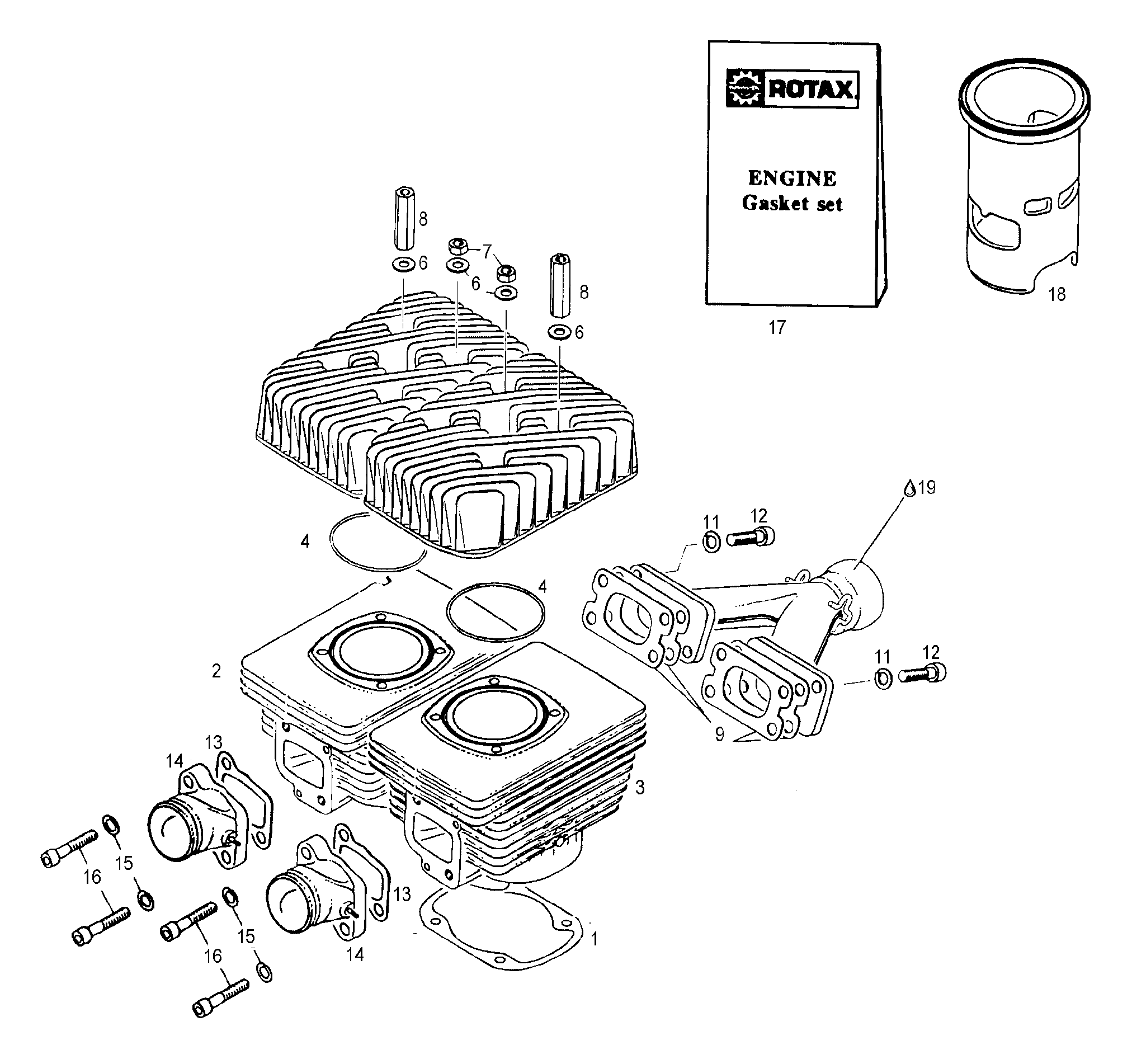

01- Cylinder для BRP Lynx Safari 400 - 2002
-
№АртикулНазвание
-
1420931781 Gasket, cyl.bottom 0.4Gasket, cyl.bottom 0.4
-
2420923403 Cylinder,var.sideCylinder,var.side
-
3420923408 Cylinder, mag.sideCylinder, mag.side
-
4420931380 Gasket, cylinder headGasket, cylinder head
-
5420613630 Cylinder headCylinder head
-
620004 WasherWasher
-
7420242206 Nut M8Nut M8
-
8420842385 Nut M8x42Nut M8x42
-
9420850114 Gasket 1.0mmGasket 1.0mm
-
10420878938 Branch-YBranch-Y
-
1120014 Spring washerSpring washer
-
1240135 Allen screw M8x30Allen screw M8x30
-
13420831866 Intake gasket 1,0 mmIntake gasket 1,0 mm
-
14420867408 Intake manifoldIntake manifold
-
1520014 Spring washerSpring washer
-
16420841591 Allen screw M8x35Allen screw M8x35
-
17420994232 Gasket setGasket set
-
18420823781 Spare cylinder sleeveSpare cylinder sleeve
-
19420297434 LoctiteLoctite
