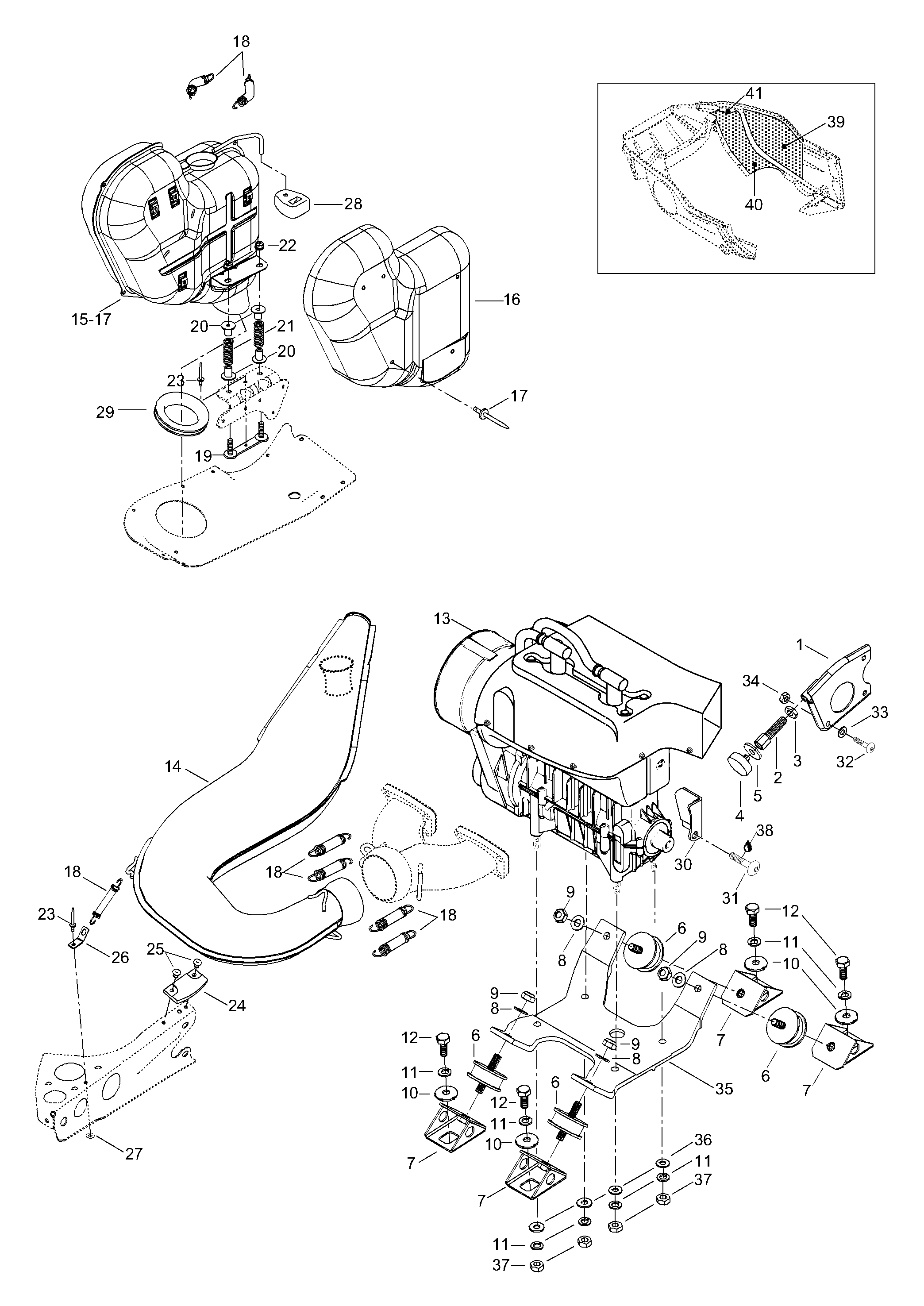

01- Engine Mount Plate/Muffler для BRP Lynx Safari 400 - 2002
-
№АртикулНазвание
-
1512059446 Support plateSupport plate
-
2512058800 Stopper screwStopper screw
-
333218 Jam nut M12Jam nut M12
-
4512059056 StopperStopper
-
55147306 WasherWasher
-
6570127700 Rubber mountRubber mount
-
7512050900 Engine supportEngine support
-
820005 WasherWasher
-
933082 Nut elastic M10Nut elastic M10
-
10512056700 Lock washerLock washer
-
1120113 Spring washerSpring washer
-
1240040 Screw M10x25Screw M10x25
-
1311000071 Engine 377Engine 377
-
14514053243 MufflerMuffler
-
15514053387 Muffler assy. 15 Includes items 17Muffler assy. 15 Includes items 17
-
16514053389 L.H. heat shieldL.H. heat shield
-
17390910000 RivetRivet
-
18415107100 SpringSpring
-
19514053263 BracketBracket
-
20514053343 SleeveSleeve
-
21414913700 SpringSpring
-
2233029 Elastic flanged nut M8Elastic flanged nut M8
-
2336489 RivetRivet
-
24570044100 Rubber padRubber pad
-
2536037 RivetRivet
-
265447086 Spring bracketSpring bracket
-
2720008 WasherWasher
-
28514052704 Rubber pumberRubber pumber
-
29570039000 Rubber grommetRubber grommet
-
30512059399 Support plateSupport plate
-
3140882 Screw M8x20Screw M8x20
-
3240344 Allen screw M8x25Allen screw M8x25
-
3320004 WasherWasher
-
3433011 Nut elastic M8Nut elastic M8
-
35512059397 Engine supportEngine support
-
3620105 WasherWasher
-
3733004 Nut M10Nut M10
-
38293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
39514052718 IsoleringIsolering
-
40514053363 IsoleringIsolering
-
41514053390 IsoleringIsolering
