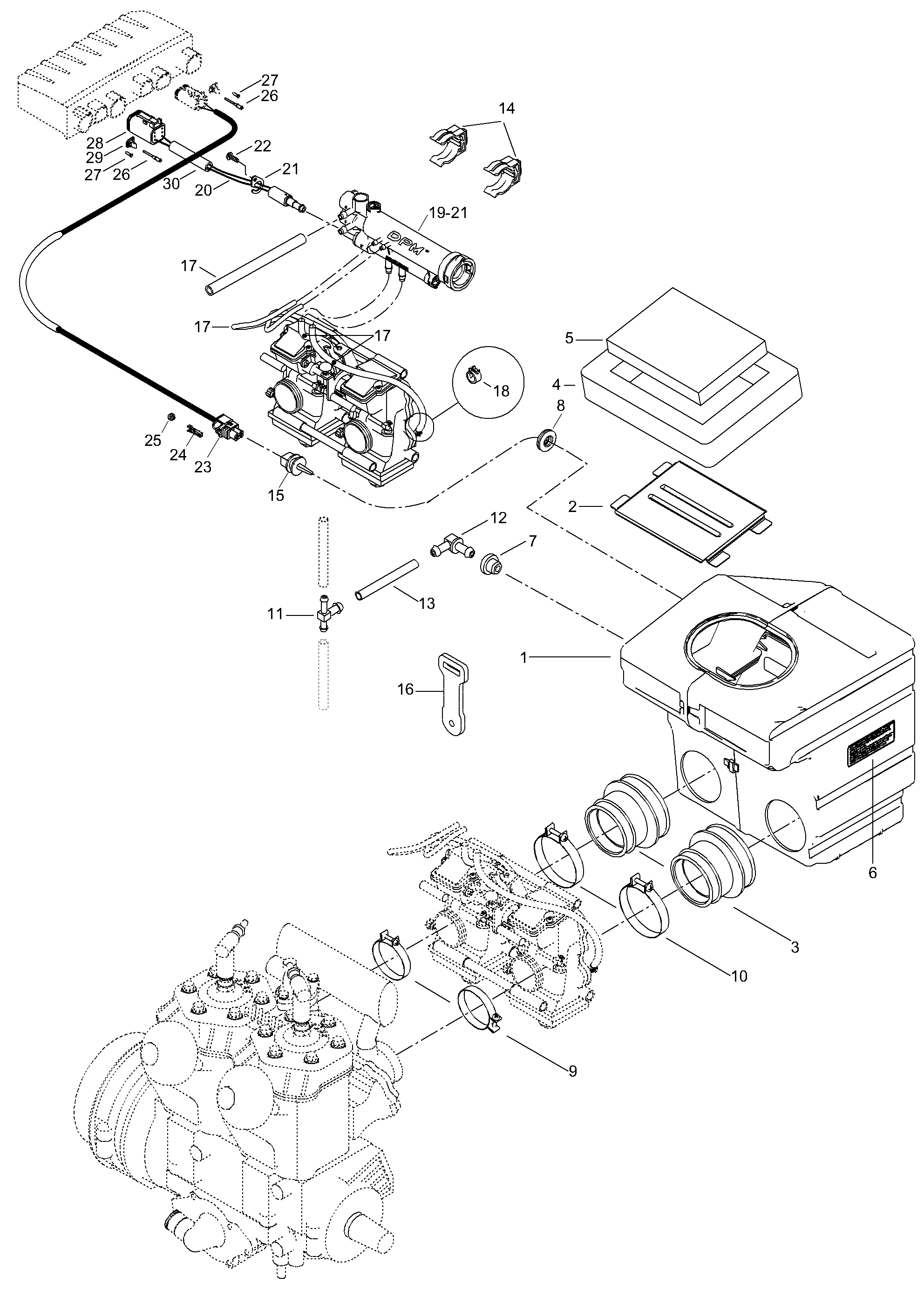

01- Air Silencer для BRP Lynx Super Touring 500 - 2002
-
№АртикулНазвание
-
1508000261 Air intake assy. Includes items 1 thru 7Air intake assy. Includes items 1 thru 7
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
9512059305 ClampClamp
-
1027046 ClampClamp
-
11572045500 T-fittingT-fitting
-
12414580600 ConnectorConnector
-
1339038 Hose 6.5/9.5Hose 6.5/9.5
-
16512059372 LatchLatch
-
18414554800 ClampClamp
-
26278000632 Female terminalFemale terminal
-
27293000052 PlugPlug
-
28515175673 Connector housingConnector housing
Все узлы модели:
- • 01- Air Silencer
- 01- Crankshaft Assy
- 01- Cylinder
- 01- DPM
- 01- Engine Mount Plate/Muffler
- 01- Oil Tank
- 01- Radiator, Hoses
- 02- Carburetor
- 02- Fuel Tank
- 03- Fly Wheel
- 04- Rewind Starter
- 05- Chaincase
- 05- Clutch
- 05- Crankcase
- 05- Drive Axle
- 05- Driven Pulley
- 06- Brake Assy
- 07- Steering
- 08- Front Suspension
- 08- Rear Suspension
- 09- Backrest
- 09- Body
- 09- Bottom Pan
- 09- Decals
- 09- Frame
- 09- Hood
- 10- Electric
- 10- Electric Starter
- 10- Electric Starter
- 11- Accessories
