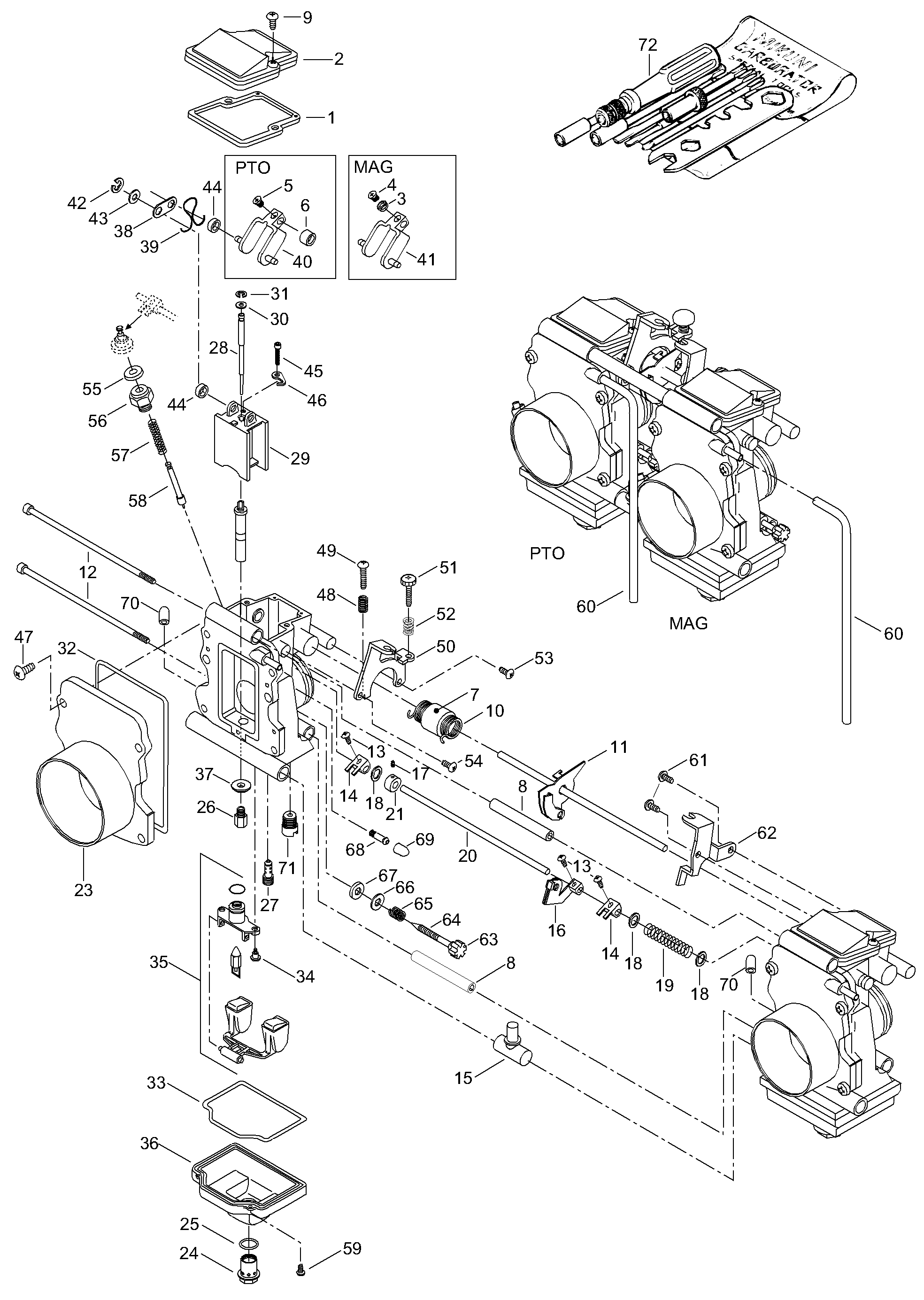

02- Carburetor для BRP Lynx Super Touring 500 - 2002
-
№АртикулНазвание
-
1404161940 GasketGasket
-
2404161939 CoverCover
-
3404161937 RingRing
-
4404161936 ScrewScrew
-
5404161928 ScrewScrew
-
6404161926 RingRing
-
7404161925 RingRing
-
8404161924 RingRing
-
9404161923 ScrewScrew
-
10404161915 SpringSpring
-
11404161914 Throttle shaftThrottle shaft
-
12404161911 ScrewScrew
-
13404161910 ScrewScrew
-
14404161909 LeverLever
-
15404161905 NippleNipple
-
16404161901 Starter leverStarter lever
-
17404161949 ScrewScrew
-
18404161894 PackingPacking
-
19404103500 SpringSpring
-
20404161952 ShaftShaft
-
21404161951 RingRing
-
23404161959 Funnel, PTOFunnel, PTO
-
23404161958 Funnel, MAGFunnel, MAG
-
24404161955 Screw drainScrew drain
-
25404161945 O-ringO-ring
-
26404108200 Main jet 500Main jet 500
-
27404161944 Pilot jet 17,5Pilot jet 17,5
-
28404161980 Jet needle 9HGY1-58Jet needle 9HGY1-58
-
29404161950 Trottle valve 2.0Trottle valve 2.0
-
30404137600 PackingPacking
-
31404152200 E-ringE-ring
-
32404161935 O-ringO-ring
-
33404161934 O-ringO-ring
-
34404161933 ScrewScrew
-
35404161932 FloatFloat
-
36404161931 Float body assyFloat body assy
-
37404161862 WasherWasher
-
38404161930 PlatePlate
-
39404161929 ClipClip
-
40404161927 LeverLever
-
41404161938 LeverLever
-
42404138300 CirclipCirclip
-
43404161922 WasherWasher
-
44404161921 RingRing
-
45404161920 ScrewScrew
-
46404161919 PlatePlate
-
47404138800 ScrewScrew
-
48404161918 SpringSpring
-
49404161917 ScrewScrew
-
50404161916 BracketBracket
-
51404137500 Adjustment screwAdjustment screw
-
52404161913 SpringSpring
-
53404161912 ScrewScrew
-
54404136100 ScrewScrew
-
55404140000 CapCap
-
56404136900 Guide halderGuide halder
-
57404161908 SpringSpring
-
58404161907 Plunger-assyPlunger-assy
-
59404161906 ScrewScrew
-
60404161904 HoseHose
-
61404161903 ScrewScrew
-
62404161902 BracketBracket
-
63404161899 CapCap
-
64404161898 AdjusterAdjuster
-
65404161897 SpringSpring
-
66404161896 WasherWasher
-
67404161895 PackingPacking
-
68404153400 NippleNipple
-
69404154900 CapCap
-
70404156600 CapCap
-
71404161900 JetJet
-
72404112000 Tool kitTool kit
