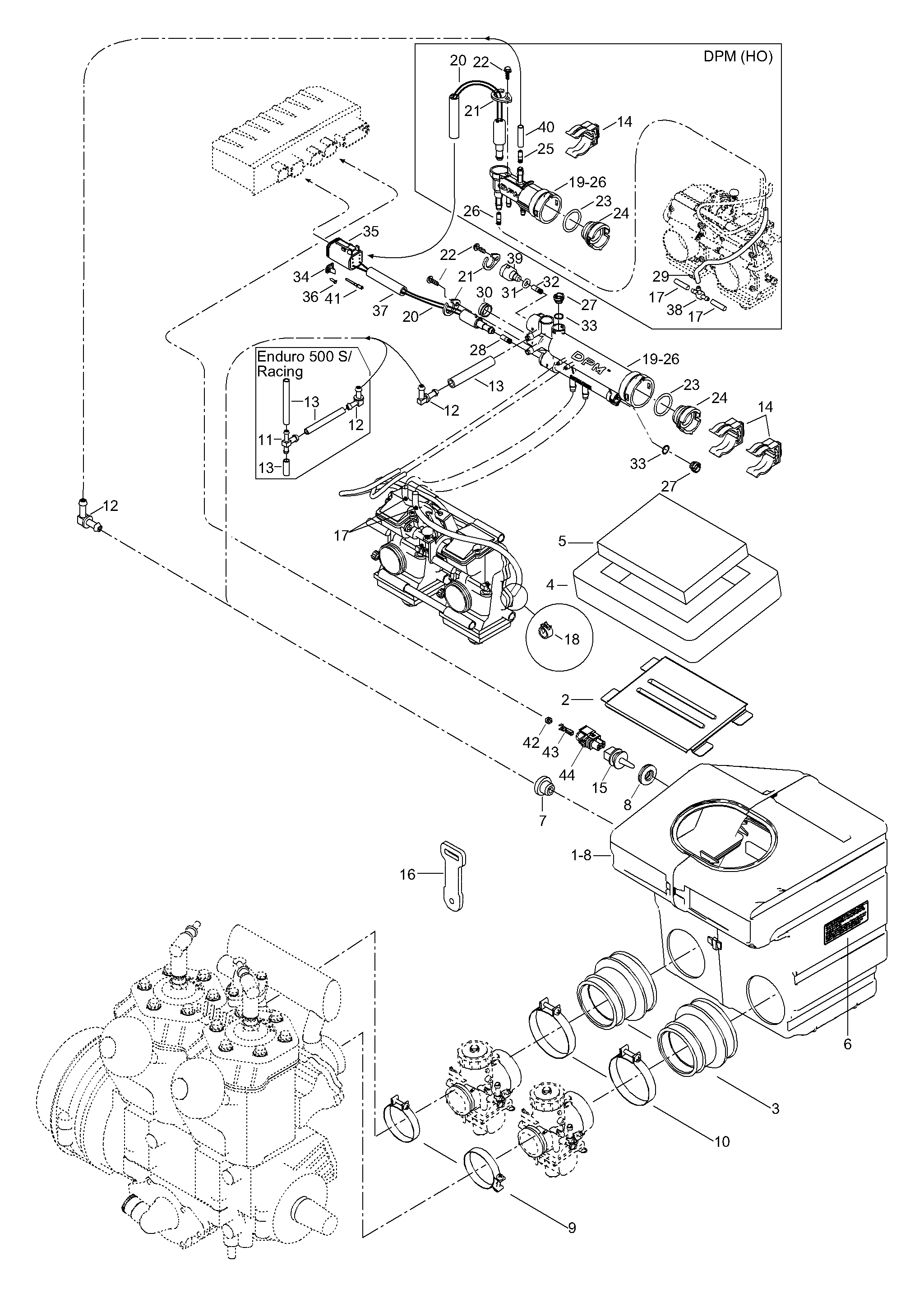

01- Air Silencer для BRP Lynx Enduro 600 Special - 2003
-
№АртикулНазвание
-
1415128454 Air intake assy. Includes items 1 thru 7Air intake assy. Includes items 1 thru 7
-
2508000004 Intake grillIntake grill
-
3508000092 Intake adaptorIntake adaptor
-
4508000099 Lower foamLower foam
-
5508000154 Air filterAir filter
-
6516001191 Label cautionLabel caution
-
7513032908 GrommetGrommet
-
8570065500 GrommetGrommet
-
9512059305 ClampClamp
-
1027046 ClampClamp
-
12414580600 ConnectorConnector
-
14512058919 SupportSupport
-
15270600000 Air temperature sensorAir temperature sensor
-
16512059372 LatchLatch
-
1739004 HoseHose
-
18414554800 ClampClamp
-
19512059633 Pressure manifold assy. Includes items 19 thru 26Pressure manifold assy. Includes items 19 thru 26
-
20515175701 Harness assyHarness assy
-
21415061600 Solenoid lockSolenoid lock
-
22241140060 Screw K40x10Screw K40x10
-
23293300042 O-ringO-ring
-
24270600009 CapCap
-
25404161819 Starter jetStarter jet
-
26404161825 Starter jetStarter jet
-
29512059524 HoseHose
-
34515175678 LockLock
-
35278000736 Connector housingConnector housing
-
36293000052 PlugPlug
-
38414729300 T-fittingT-fitting
-
40512059651 HoseHose
-
41278000632 Female terminalFemale terminal
