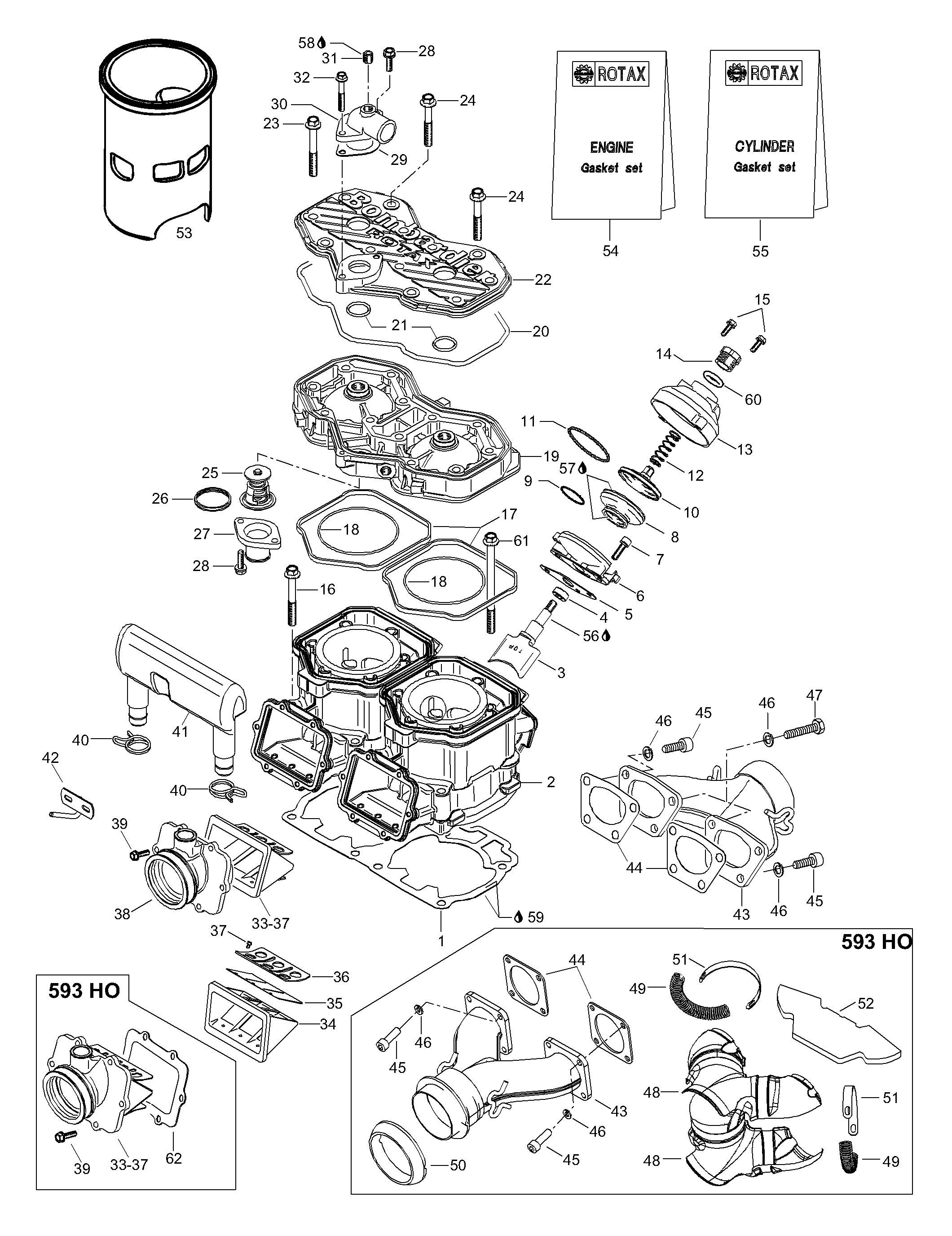

01- Cylinder для BRP Lynx Enduro 600 Special - 2003
-
№АртикулНазвание
-
1420931892 Gasket, double 0.6 mmGasket, double 0.6 mm
-
1420931894 Gasket, double 0.7 mmGasket, double 0.7 mm
-
1420931895 Gasket, double 0.8 mmGasket, double 0.8 mm
-
1420931893 Gasket, double 0.5 mmGasket, double 0.5 mm
-
2420613710 CylinderCylinder
-
3420854650 Exhaust valveExhaust valve
-
4420430110 O-ringO-ring
-
5420931542 Oil sealOil seal
-
6420854455 Valve rod housingValve rod housing
-
7420840861 Allen screw M6x25Allen screw M6x25
-
8420260729 BellowsBellows
-
9420838253 Hose springHose spring
-
10420854449 Exhaust valve pistonExhaust valve piston
-
11420239048 Compression springCompression spring
-
12420239944 Spring, brownSpring, brown
-
13420911558 Valve coverValve cover
-
14420241220 Adjustment screwAdjustment screw
-
15420241270 Screw M5x25Screw M5x25
-
16420640524 Screw M10x80Screw M10x80
-
17420931590 Square ringSquare ring
-
18293300026 O-ringO-ring
-
19420613700 Cylinderhead, silverCylinderhead, silver
-
20420950320 O-ringO-ring
-
21420430782 O-ringO-ring
-
22420923460 Cylinderh. cover, silverCylinderh. cover, silver
-
23420841306 Screw M8x65Screw M8x65
-
24420941621 Screw M8x56,5Screw M8x56,5
-
25420922517 ThermostatThermostat
-
26420931272 Thermostat gasketThermostat gasket
-
27420922025 Water outlet socketWater outlet socket
-
28420941250 Screw M6x20Screw M6x20
-
29420850338 GasketGasket
-
30420922062 Bent otlet socketBent otlet socket
-
31420240480 Plug screwPlug screw
-
32420941451 Screw M6x40Screw M6x40
-
33420867874 Reed valve assy. Includes items 33 thru 37Reed valve assy. Includes items 33 thru 37
-
35420924680 Reed pedalReed pedal
-
36420924695 Reed pedal stopReed pedal stop
-
37420941215 Screw M3x5Screw M3x5
-
39420941925 Screw M5x16Screw M5x16
-
42512059504 HookHook
-
43420973593 Exhaust manifoldExhaust manifold
-
44420850552 GasketGasket
-
4540052 Allen screw M6x20Allen screw M6x20
-
4620052 Lock washerLock washer
-
48514053593 Enveloppe, manif. exh.Enveloppe, manif. exh.
-
49514053643 SpringSpring
-
50514053487 GasketGasket
-
51514053603 Strap retainingStrap retaining
-
52514053588 Wool insulationWool insulation
-
54420889921 Gasket kit, engineGasket kit, engine
-
55420889926 Gasket kit, cylinderGasket kit, cylinder
-
56420297433 Molykote G-N Slide pasteMolykote G-N Slide paste
-
58420297906 Sealing compoundSealing compound
-
59293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
60420430220 O-ringO-ring
-
61420640534 Screw M10x120Screw M10x120
-
62420630815 GasketGasket
