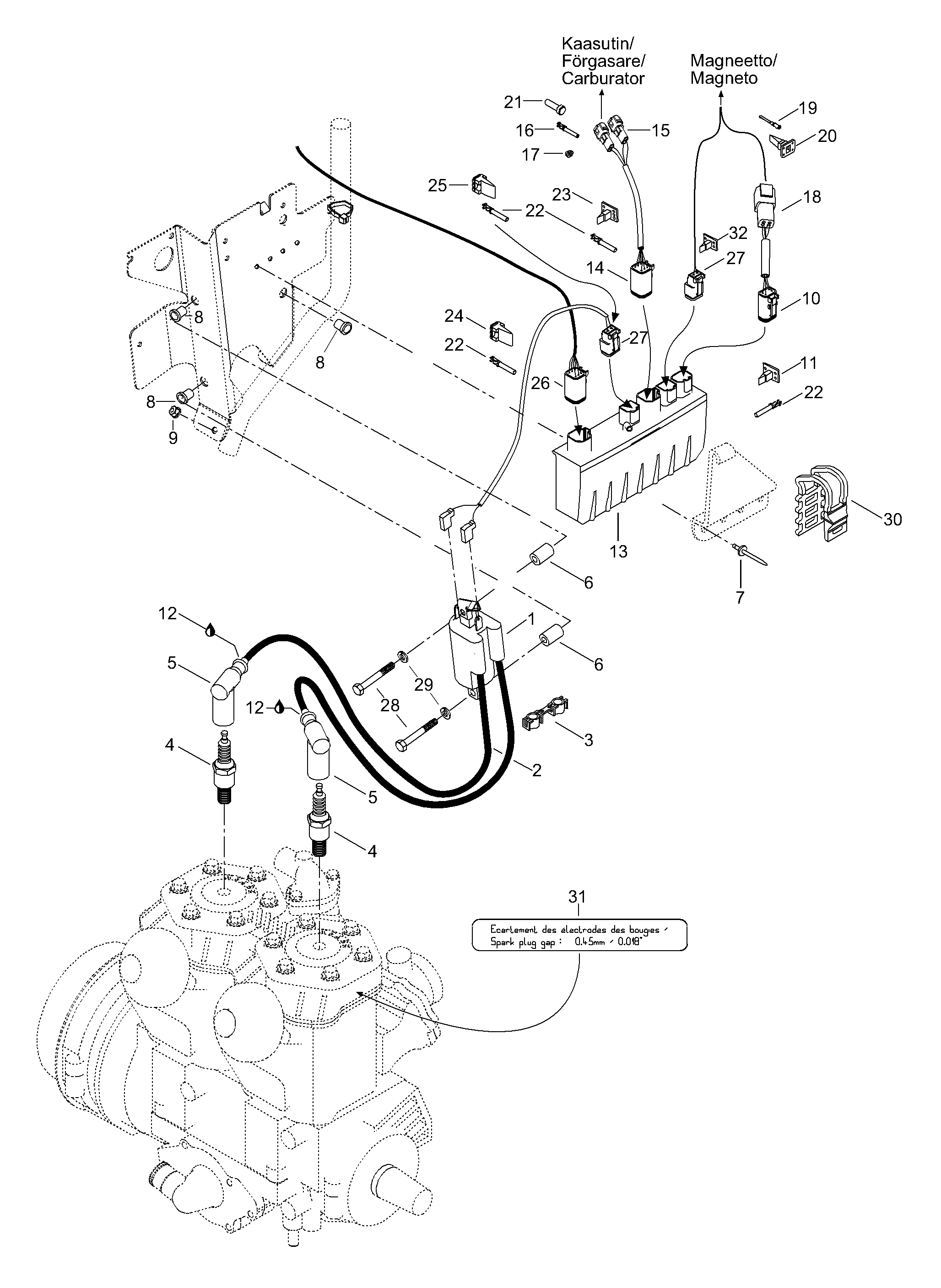

01- DPM для BRP Lynx Racing - 2003
-
№АртикулНазвание
-
1512059564 Ignition coilIgnition coil
-
2512059499 Spark plug wire, 515mmSpark plug wire, 515mm
-
2512059500 Spark plug wire, 595mmSpark plug wire, 595mm
-
3410914600 Plastic clipPlastic clip
-
4512059533 Spark plug BR9ECSSpark plug BR9ECS
-
5278000237 Spark plug protectorSpark plug protector
-
6544419 SleeveSleeve
-
736083 RivetRivet
-
8415107300 InsertInsert
-
933200 Elastic flanged nut M6Elastic flanged nut M6
-
10278001739 Female terminal housinFemale terminal housin
-
11278000738 Female lockFemale lock
-
12293550004 Dielectric grease, 150gDielectric grease, 150g
-
13512059476 Calibration moduleCalibration module
-
14515175673 Female terminal housinFemale terminal housin
-
15409209200 Female terminal housinFemale terminal housin
-
16409012100 Female terminalFemale terminal
-
17409012300 SealSeal
-
18710000045 Male terminal housingMale terminal housing
-
19409014800 Male terminalMale terminal
-
20710000046 Male lockMale lock
-
21293000052 Sealing capSealing cap
-
22278000632 Female terminalFemale terminal
-
23515175678 Female lockFemale lock
-
24515175705 Female lockFemale lock
-
25409207100 Female lockFemale lock
-
26278000736 Female terminal housinFemale terminal housin
-
27409207300 Female terminal housinFemale terminal housin
-
2840084 Screw M6x45Screw M6x45
-
2920052 Spring washerSpring washer
-
30570069700 LatchLatch
-
31516000986 Spark plug decalSpark plug decal
-
3242615 Male lockMale lock
