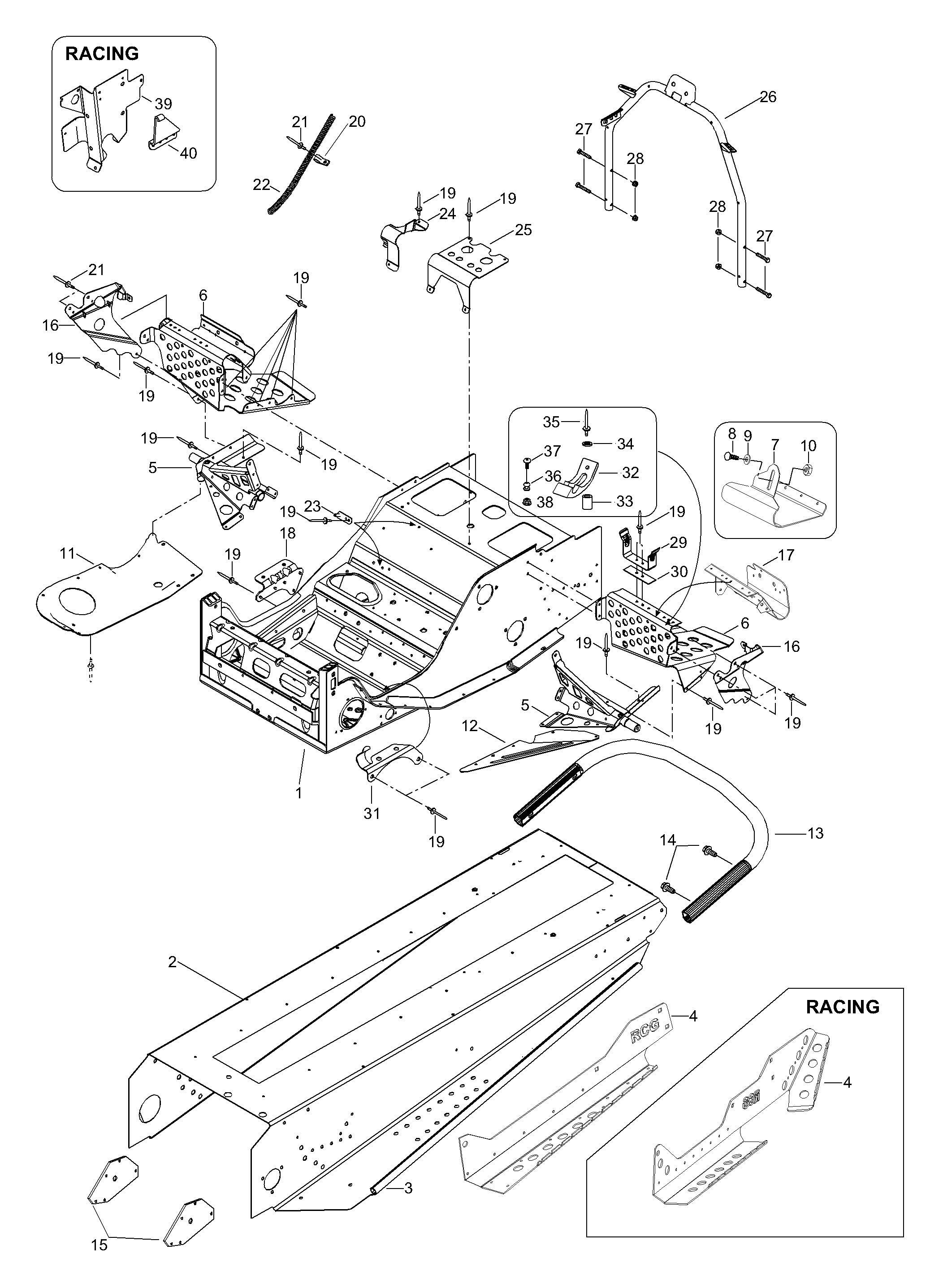

09- Frame для BRP Lynx Racing - 2003
-
№АртикулНазвание
-
1605149266 Frame assy, Alum.. Includes items 1 thru 17Frame assy, Alum.. Includes items 1 thru 17
-
35347257 SupportSupport
-
4605249290 R.H. holed corner plateR.H. holed corner plate
-
4605249291 L.H. holed corner plateL.H. holed corner plate
-
5605248447 R.H. supportR.H. support
-
5605248448 L.H. supportL.H. support
-
65147867 R.H. front footrestR.H. front footrest
-
65147868 L.H. front footrestL.H. front footrest
-
75248038 R.H. toe holdR.H. toe hold
-
75248039 L.H. toe holdL.H. toe hold
-
840058 Locking screw M8x20Locking screw M8x20
-
920005 WasherWasher
-
1033201 Elastic flanged nut M8Elastic flanged nut M8
-
11518319760 R.H. bottom pan plateR.H. bottom pan plate
-
12605349267 L.H. reinf. plateL.H. reinf. plate
-
13605349543 Rear bumper, redRear bumper, red
-
1440336 Screw M8x20Screw M8x20
-
15605449345 SupportSupport
-
165147871 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
165147872 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
175147869 R.H. toe holdR.H. toe hold
-
175147870 L.H. toe holdL.H. toe hold
-
18518206300 Muffler supportMuffler support
-
1936489 RivetRivet
-
2027092 ClipClip
-
2136036 RivetRivet
-
22518321569 Rope guideRope guide
-
23518319728 Double bracketDouble bracket
-
24518322699 Hose supportHose support
-
25518310400 Air intake supportAir intake support
-
265247856 Handle steering supp.Handle steering supp.
-
2740002 Screw M6x40Screw M6x40
-
2833200 Nut M6Nut M6
-
29518202100 Pulley Guard bracketPulley Guard bracket
-
30518207500 ReinforcementReinforcement
-
31515175254 Cable supportCable support
-
32531955 LatchLatch
-
33543417 SleeveSleeve
-
34543392 WasherWasher
-
3536072 RivetRivet
-
36605449087 Counter rollCounter roll
-
3740168 Screw M4x25Screw M4x25
-
3833008 Nut M4Nut M4
-
39518322927 SupportSupport
-
40518322928 Bracket, coilBracket, coil
