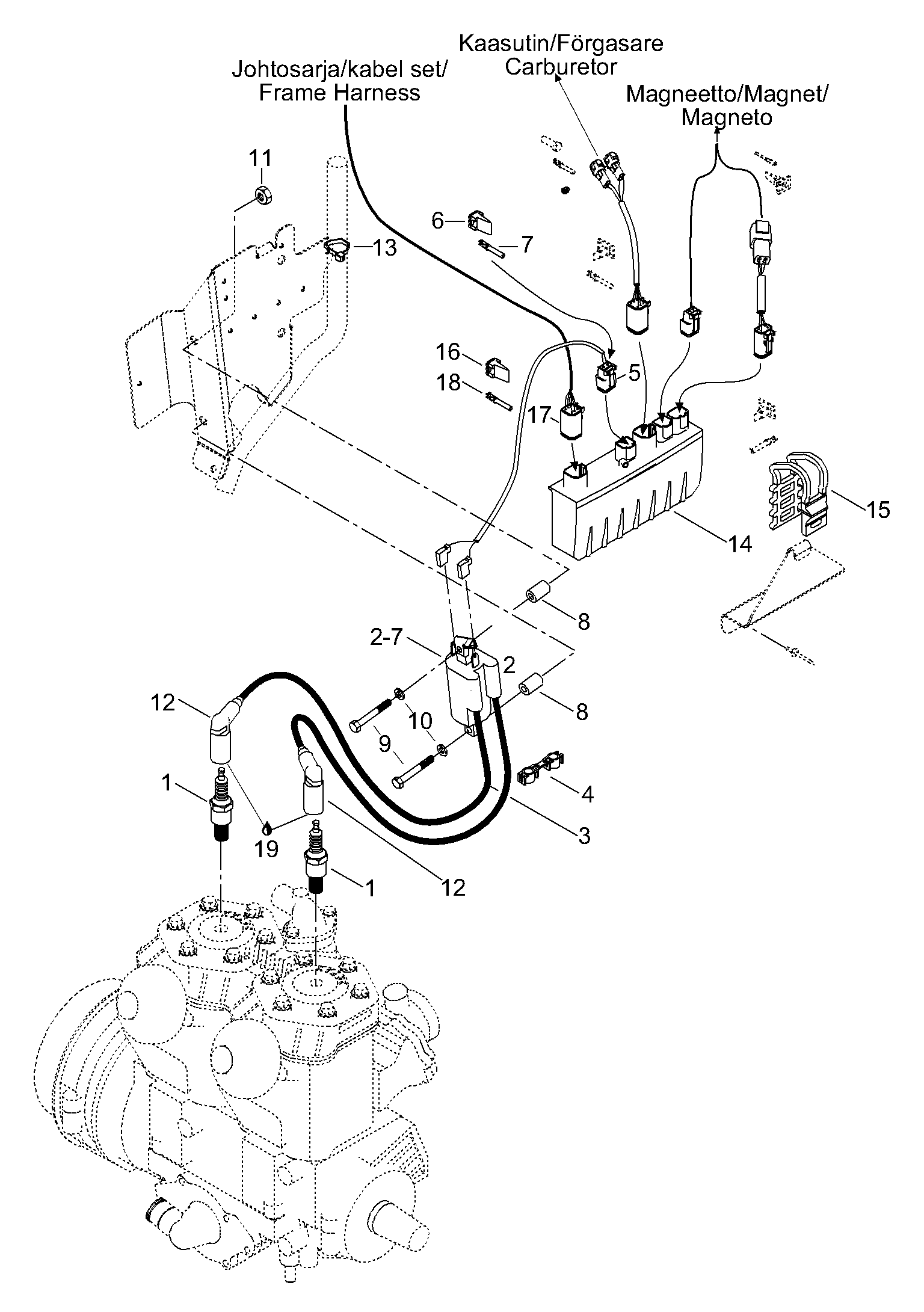

01- DPM для BRP Lynx Rave Cross - 2003
-
№АртикулНазвание
-
1512059533 Spark plug BR9ECSSpark plug BR9ECS
-
2512059564 Ignition coilIgnition coil
-
3512059499 Ignition cable 515 mmIgnition cable 515 mm
-
3512059500 Ignition cable 595 mmIgnition cable 595 mm
-
4410914600 Plastic clipPlastic clip
-
542610 Female terminal housingFemale terminal housing
-
642609 Female lock (2 circuits)Female lock (2 circuits)
-
7278000632 Female terminalFemale terminal
-
8544419 SleeveSleeve
-
940084 Screw M6x45Screw M6x45
-
1020052 Spring washerSpring washer
-
1133200 Elastic flanged nut M6Elastic flanged nut M6
-
12278000237 Spark plug protectorSpark plug protector
-
1327036 Tie rapTie rap
-
14512059466 Calibration moduleCalibration module
-
15570069700 LatchLatch
-
16515175705 Female lock (6 circuits)Female lock (6 circuits)
-
17515175673 Female terminal housingFemale terminal housing
-
18278000632 Female terminalFemale terminal
-
19293550004 Dielectric grease, 140gDielectric grease, 140g
