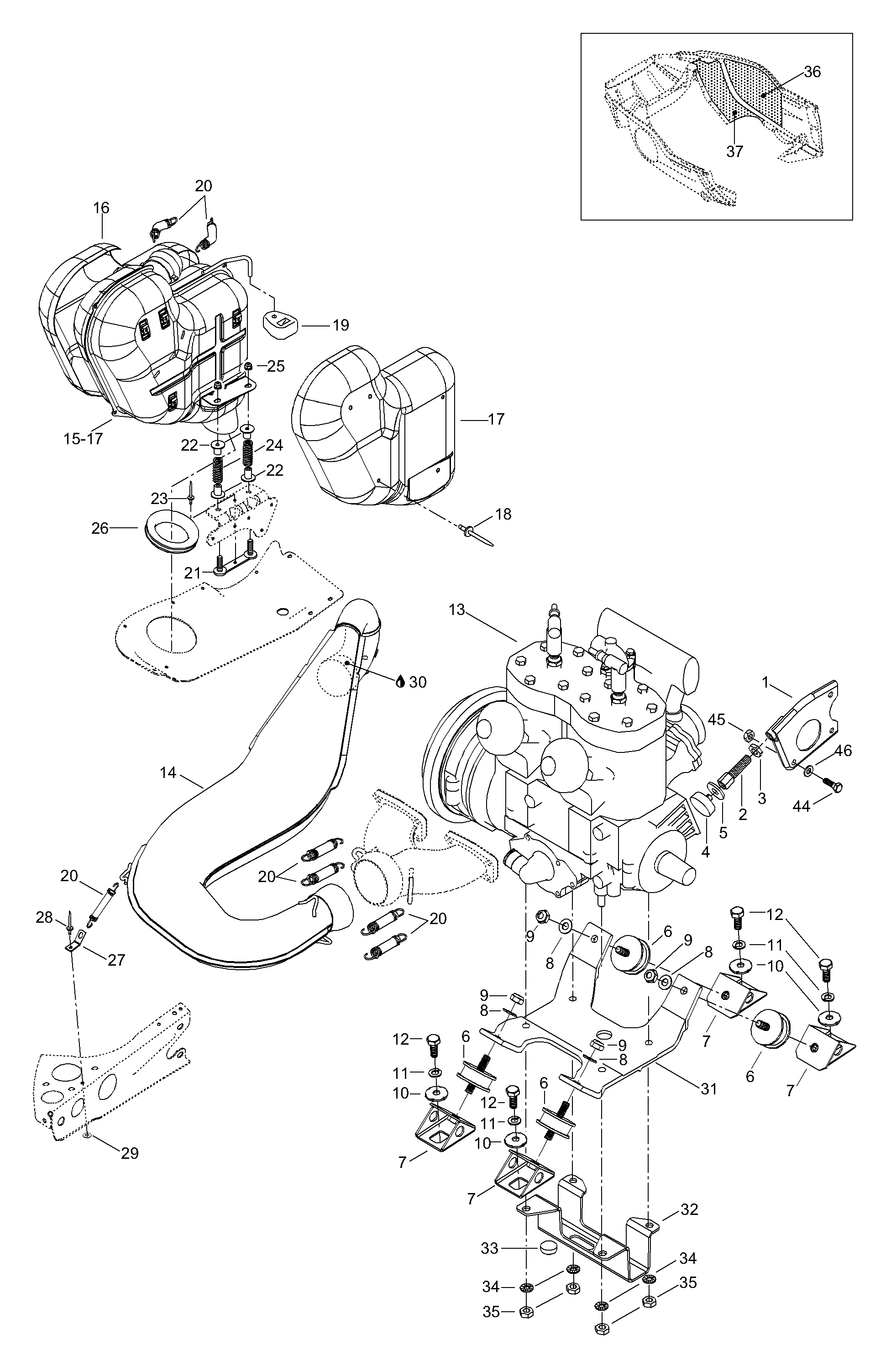

01- Engine Mount Plate/Muffler для BRP Lynx Rave Cross - 2003
-
№АртикулНазвание
-
1512058500 Support plateSupport plate
-
2512058800 Stopper screwStopper screw
-
333218 Jam nut M12Jam nut M12
-
4512059056 StopperStopper
-
520023 WasherWasher
-
6570128700 Rubber mountRubber mount
-
7512050900 Engine supportEngine support
-
820005 WasherWasher
-
933012 Nut elastic M10Nut elastic M10
-
10512056700 Lock washerLock washer
-
1120047 Spring washerSpring washer
-
1240040 Screw M10x25Screw M10x25
-
145248296 MufflerMuffler
-
15514053349 Muffler assy. Includes items 15 thru 18Muffler assy. Includes items 15 thru 18
-
16514051700 R.H. heat shieldR.H. heat shield
-
17514052960 L.H. heat shieldL.H. heat shield
-
18390910000 RivetRivet
-
19514052704 Rubber pumberRubber pumber
-
20415107100 SpringSpring
-
215447628 BracketBracket
-
225447626 SleeveSleeve
-
2336083 RivetRivet
-
2425009 SpringSpring
-
2533029 Elastic flanged nut M8Elastic flanged nut M8
-
26570039000 Rubber grommetRubber grommet
-
275447086 Spring bracketSpring bracket
-
2836489 RivetRivet
-
2920008 WasherWasher
-
30413710300 Sealant, loctite 17914Sealant, loctite 17914
-
31512059173 Engine supportEngine support
-
325247051 Support engineSupport engine
-
33570048700 Rubber damperRubber damper
-
3420068 Lock washerLock washer
-
3533004 Nut M10Nut M10
-
36514052718 IsoleringIsolering
-
37514053390 IsoleringIsolering
