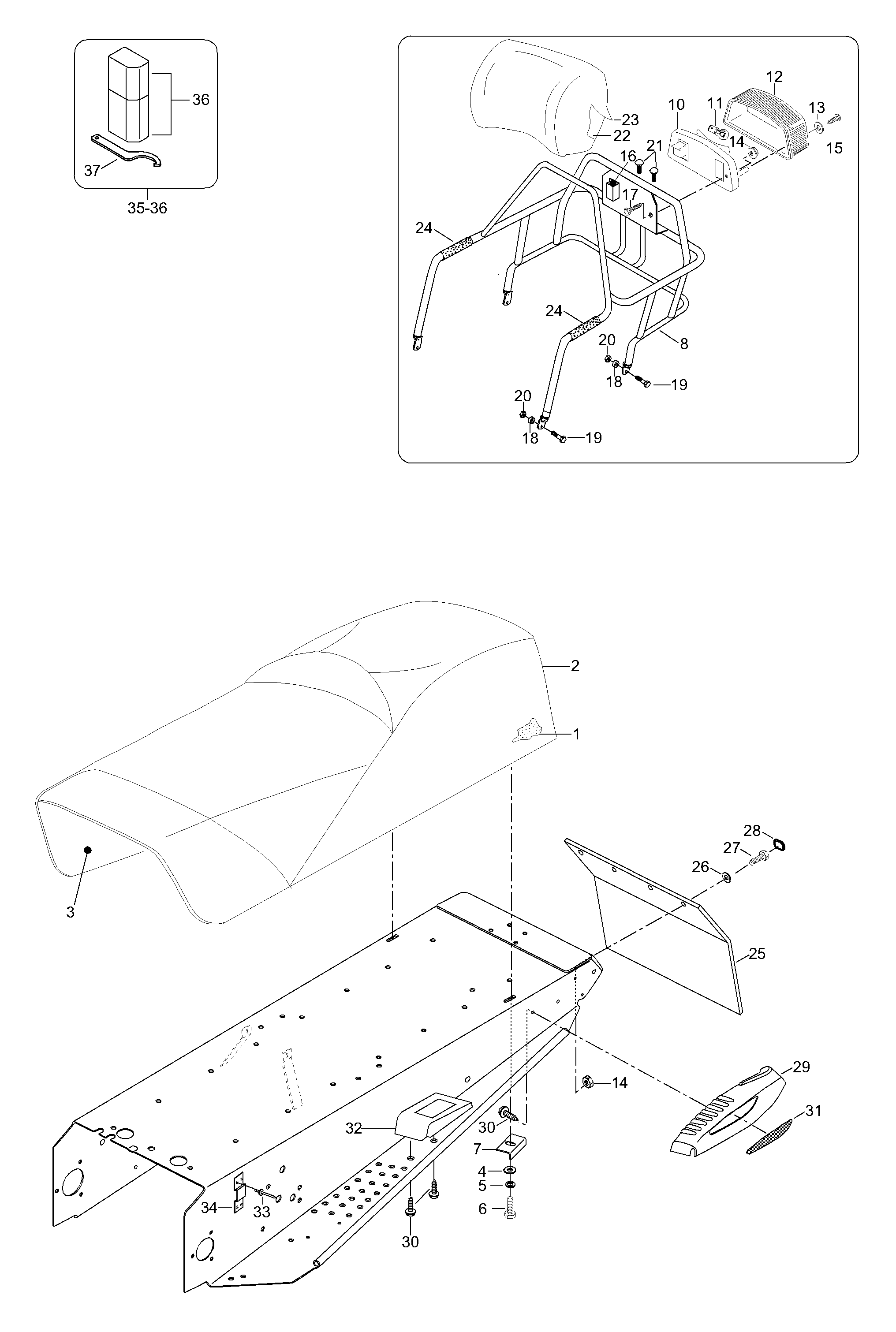

09- Body для BRP Lynx Safari 400 F - 2003
-
№АртикулНазвание
-
15146604 Seat foamSeat foam
-
2605148618 Seat coverSeat cover
-
35146603 Seat baseSeat base
-
420010 WasherWasher
-
520014 Lock washerLock washer
-
640015 Screw M8x30Screw M8x30
-
75447994 Support plateSupport plate
-
8605249018 Rack assyRack assy
-
95341214 Taillamp assy. Includes items 9 thru 15Taillamp assy. Includes items 9 thru 15
-
10414979400 Taillamp housingTaillamp housing
-
11410504000 BulbBulb
-
12414513700 LensLens
-
13414516400 WasherWasher
-
1433200 Nut M6Nut M6
-
15414516300 ScrewScrew
-
165345713 CoverCover
-
1740032 Screw M6x30Screw M6x30
-
18548491 SleeveSleeve
-
1940387 Screw M8x30Screw M8x30
-
2033201 Elastic flanged nut M8Elastic flanged nut M8
-
2140866 Locking screw M6x20Locking screw M6x20
-
22539399 FoamFoam
-
235340917 CoverCover
-
24415050300 GripGrip
-
255246859 Snow guardSnow guard
-
2620009 WasherWasher
-
2740078 Screw M6x22Screw M6x22
-
28415073300 CapCap
-
29861777700 R.H. mouldingR.H. moulding
-
29861777800 L.H. mouldingL.H. moulding
-
3040870 Hex. tapping screwHex. tapping screw
-
31516000241 R.H. rear reflectorR.H. rear reflector
-
31516000242 L.H. rear reflectorL.H. rear reflector
-
32572088700 GT SE Foot Rest RHGT SE Foot Rest RH
-
32572088800 GT SE Foot Rest LHGT SE Foot Rest LH
-
3336489 RivetRivet
-
345447908 BracketBracket
-
355445402 Tool box with tools. 35 Includes items 36Tool box with tools. 35 Includes items 36
-
36572036310 Tool boxTool box
-
37529032900 Wrench adjustWrench adjust
