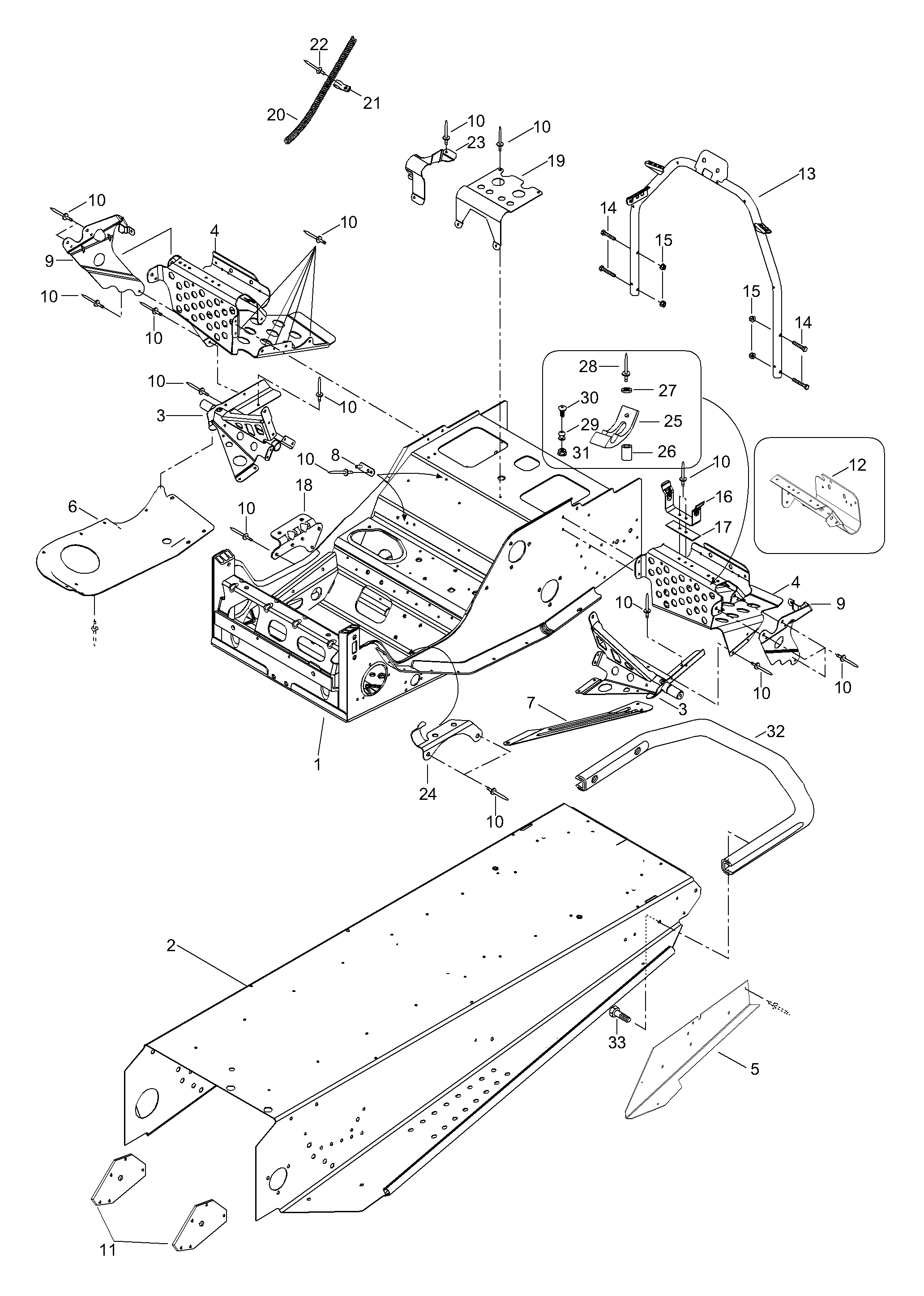

09- Frame для BRP Lynx Safari 400 F - 2003
-
№АртикулНазвание
-
15147120 Frame assy. Includes items 1 thru 12Frame assy. Includes items 1 thru 12
-
35246775 R.H. supportR.H. support
-
35246776 L.H. supportL.H. support
-
45146822 R.H. front footrestR.H. front footrest
-
45146823 L.H. front footrestL.H. front footrest
-
55348013 R.H. bracketR.H. bracket
-
55348012 L.H. bracketL.H. bracket
-
6518322636 R.H. bottom pan plateR.H. bottom pan plate
-
7518322119 L.H. reinf. plateL.H. reinf. plate
-
8518319728 Double bracketDouble bracket
-
95146912 R.H. footrest reinforcem.R.H. footrest reinforcem.
-
95146913 L.H. footrest reinforcem.L.H. footrest reinforcem.
-
1036489 RivetRivet
-
115348321 SupportSupport
-
125146917 R.H. toe holdR.H. toe hold
-
125146918 L.H. toe holdL.H. toe hold
-
135247856 Handle steering supp.Handle steering supp.
-
1440002 Screw M6x40Screw M6x40
-
1533200 Nut M6Nut M6
-
16518202100 Pulley guard bracketPulley guard bracket
-
17518207500 ReinforcementReinforcement
-
18518322635 Muffler supportMuffler support
-
19518310400 Air intake supportAir intake support
-
20518321569 Rope guideRope guide
-
2127092 ClipClip
-
2236036 RivetRivet
-
23518322699 Hose supportHose support
-
24515175254 Cable supportCable support
-
25531955 LatchLatch
-
26543417 SleeveSleeve
-
27543392 WasherWasher
-
2836072 RivetRivet
-
29605449087 Counter rollCounter roll
-
3040168 Screw M4x25Screw M4x25
-
3133008 Nut elastic M4Nut elastic M4
-
32517243800 Rear pumberRear pumber
-
3340336 Screw M8x20Screw M8x20
