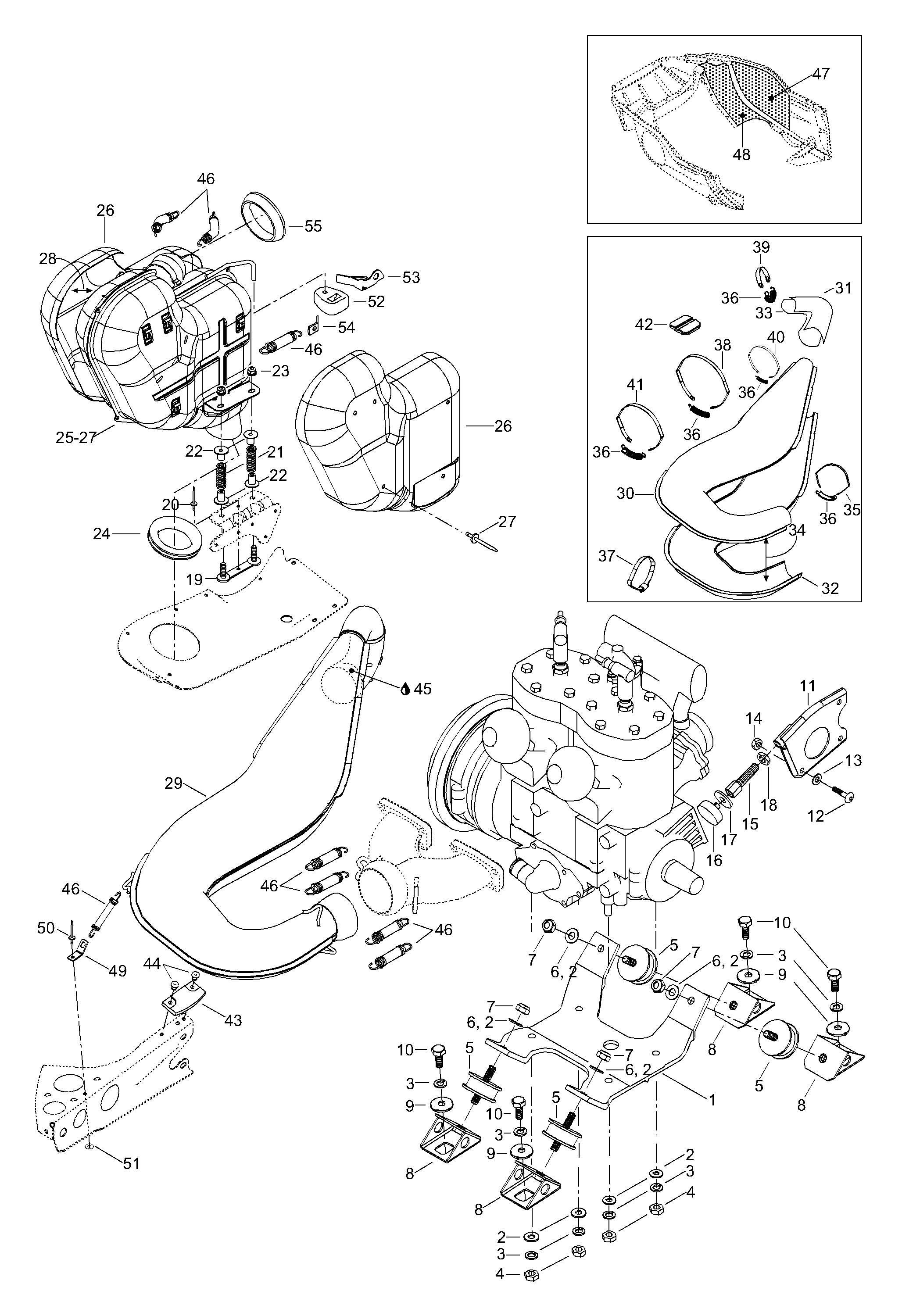

01- Engine Mount Plate/Muffler для BRP Lynx Super Touring 600 - 2003
-
№АртикулНазвание
-
1512059488 Engine supportEngine support
-
220105 Washer, hardenedWasher, hardened
-
320047 Spring washerSpring washer
-
433004 Nut M10Nut M10
-
5570127700 Rubber mountRubber mount
-
620005 WasherWasher
-
733012 Nut elastic M10Nut elastic M10
-
8512050900 Engine supportEngine support
-
9512056700 Lock washerLock washer
-
1040040 Screw M10x25Screw M10x25
-
11512058500 Support plateSupport plate
-
1240344 Allen screw M8x25Allen screw M8x25
-
1320104 Washer, hardenedWasher, hardened
-
1433011 Nut elastic M8Nut elastic M8
-
15512058800 Stopper screwStopper screw
-
16512059056 StopperStopper
-
1720023 WasherWasher
-
1833218 Jam nut M12Jam nut M12
-
195447628 BracketBracket
-
2036108 RivetRivet
-
2125009 SpringSpring
-
225447626 SleeveSleeve
-
2333029 Elastic flanged nut M8Elastic flanged nut M8
-
24570039000 Rubber grommetRubber grommet
-
25514053325 Muffler assy. Includes items 25 thru 27Muffler assy. Includes items 25 thru 27
-
26514052733 L.H. heat shieldL.H. heat shield
-
26514053160 R.H. heat shieldR.H. heat shield
-
27390910000 RivetRivet
-
29514053325 MufflerMuffler
-
30514053181 Upper enveloppeUpper enveloppe
-
31514053193 Rear upper enveloppeRear upper enveloppe
-
32514053367 Lower enveloppeLower enveloppe
-
33514053196 Rear lower enveloppeRear lower enveloppe
-
34514053285 IsolationIsolation
-
35514053498 Norma gear clampNorma gear clamp
-
36514053643 SpringSpring
-
37514053501 Norma gear clampNorma gear clamp
-
38514053540 Norma gear clampNorma gear clamp
-
39293650491 Norma gear clampNorma gear clamp
-
40514053500 Norma gear clampNorma gear clamp
-
41514052512 Norma gear clampNorma gear clamp
-
42514053180 Rubber pumberRubber pumber
-
43570044100 Rubber padRubber pad
-
4436037 RivetRivet
-
45293800090 Sealant, loctite 17914Sealant, loctite 17914
-
46415107100 SpringSpring
-
47514052718 IsoleringIsolering
-
48514053390 IsoleringIsolering
-
495447086 Spring bracketSpring bracket
-
5036489 RivetRivet
-
5120008 WasherWasher
-
52514052704 Rubber pumberRubber pumber
