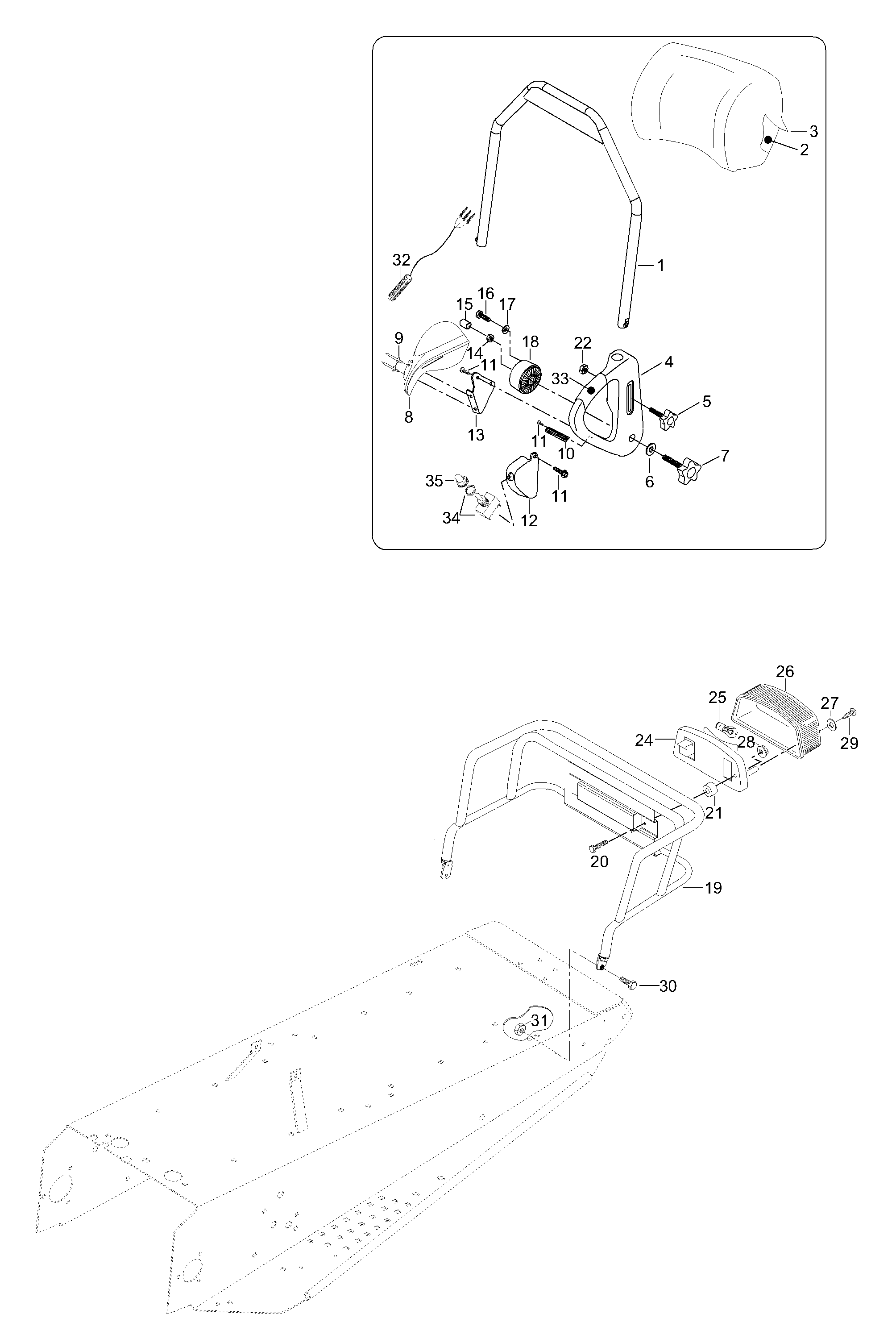

09- Body для BRP Lynx Super Touring 600 - 2003
-
№АртикулНазвание
-
1605249187 BackrestBackrest
-
2605349172 FoamFoam
-
3605349174 CoverCover
-
4510003542 R.H. armR.H. arm
-
4510003607 L.H. armL.H. arm
-
5510003533 Male handle M8x35Male handle M8x35
-
620027 WasherWasher
-
7510003534 Male handle M12x45Male handle M12x45
-
8572089400 R.H. Passeng. hand gr.R.H. Passeng. hand gr.
-
8572089500 L.H. Passeng. hand gr.L.H. Passeng. hand gr.
-
936037 RivetRivet
-
10605349166 HousingHousing
-
1140847 ScrewScrew
-
12605348889 BracketBracket
-
13605348911 R.H. Bracket hand gripR.H. Bracket hand grip
-
13605348912 L.H. Bracket hand gripL.H. Bracket hand grip
-
1433016 Nut elastic M16Nut elastic M16
-
15510003628 HoseHose
-
1640037 Screw M8x25Screw M8x25
-
1720072 Lock washerLock washer
-
18510003707 PivotPivot
-
19605249176 Rack assyRack assy
-
2040065 Locking screw M6x45Locking screw M6x45
-
21549103 SleeveSleeve
-
2233006 Nut M8Nut M8
-
235341214 Taillamp assy. Includes items 23 thru 27Taillamp assy. Includes items 23 thru 27
-
24414979400 Taillamp housingTaillamp housing
-
25410504000 BulbBulb
-
26414513700 LensLens
-
27414516400 WasherWasher
-
2833200 Nut M6Nut M6
-
29414516300 ScrewScrew
-
3040336 Screw M8x20Screw M8x20
-
3133201 Elastic flanged nut M8Elastic flanged nut M8
-
32605349534 HeaterHeater
-
33605449165 R.H. GripR.H. Grip
-
33605449536 L.H. GripL.H. Grip
-
34410110700 SwitchSwitch
-
35515175281 CoverCover
