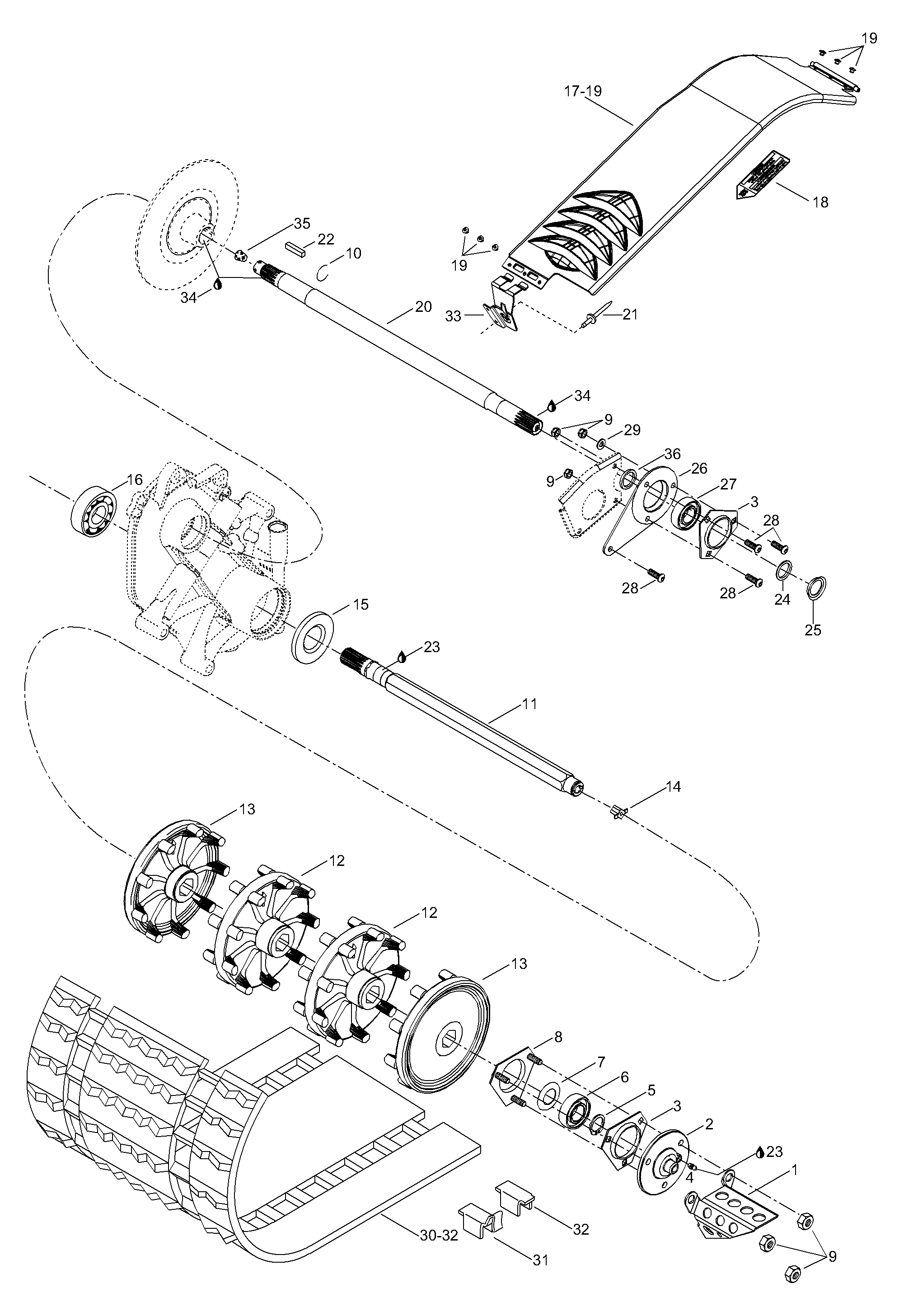

05- Drive Axle для BRP Lynx Enduro 400 F RC - 2004
-
№АртикулНазвание
-
1517290100 Cable protectorCable protector
-
2504151836 FlangeFlange
-
3501025000 FlangeFlange
-
434011 Grease fittingGrease fitting
-
531001 CirclipCirclip
-
6504152009 BearingBearing
-
7501017400 Ball bearing protectorBall bearing protector
-
8504151860 Bearing housingBearing housing
-
933011 Nut elastic M8Nut elastic M8
-
10371910000 CirclipCirclip
-
11501027400 Drive axleDrive axle
-
12504151781 Sprocket 9 teethSprocket 9 teeth
-
13504151782 Half sprocket 9 teethHalf sprocket 9 teeth
-
14572010100 Insert speedoInsert speedo
-
15504151918 Oil sealOil seal
-
16504152005 Bearing ballBearing ball
-
17417300173 Belt guard assy. Includes items 17 thru 19Belt guard assy. Includes items 17 thru 19
-
18516001190 Warning labelWarning label
-
19390402200 RivetRivet
-
20501026300 Clutch shaftClutch shaft
-
2136489 RivetRivet
-
22507021300 KeyKey
-
23413711500 Synthetic greaseSynthetic grease
-
24417300054 ShimShim
-
25417300055 ProtectorProtector
-
26080044200 Casting spacerCasting spacer
-
27504152026 Bearing ballBearing ball
-
2840344 Allen screw M8Allen screw M8
-
2920004 WasherWasher
-
301472038 Track (30), 50ShA. Includes items 30 thru 32Track (30), 50ShA. Includes items 30 thru 32
-
315318330 Guide cleatGuide cleat
-
325318329 CleatCleat
-
33417300172 BracketBracket
-
34293800023 Loctite 767, antiseizeLoctite 767, antiseize
-
35414784800 CorkCork
-
36504149100 SpacerSpacer
