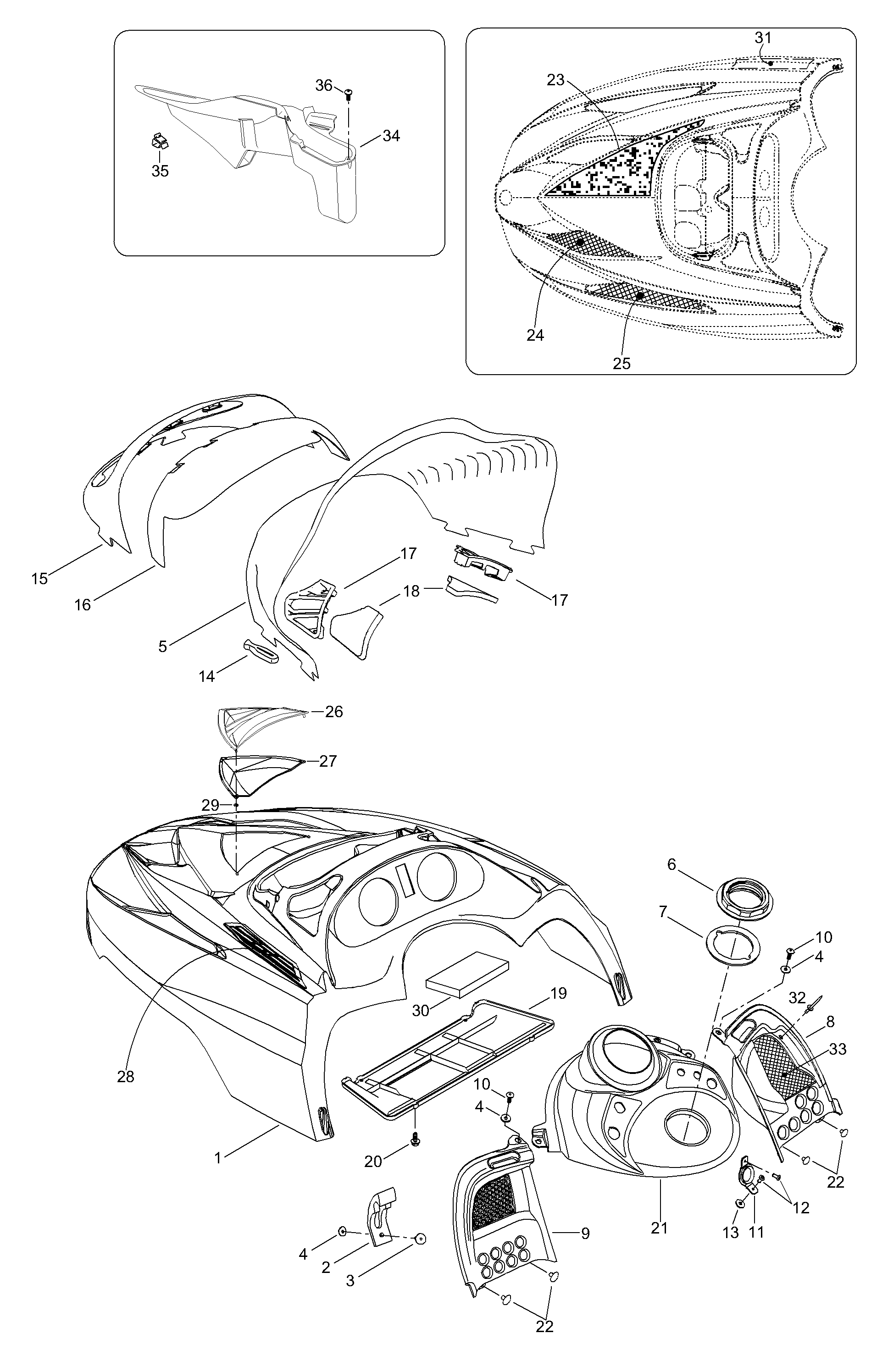

09- Hood для BRP Lynx Enduro 400 F RC - 2004
-
№АртикулНазвание
-
15147279 Hood, redHood, red
-
2570027100 Hood latchHood latch
-
336037 RivetRivet
-
420008 WasherWasher
-
55146770 Windshield, highWindshield, high
-
6517302043 Console nutConsole nut
-
75447116 GasketGasket
-
8605350854 R.H.consoleR.H.console
-
9517302006 L.H.consoleL.H.console
-
10732600030 ScrewScrew
-
11517302129 Rope guideRope guide
-
1236002 RivetRivet
-
13517302286 Rubber stopperRubber stopper
-
14570023800 Windshield latchWindshield latch
-
15517302158 Mold. head lampMold. head lamp
-
16517302003 Windshield supportWindshield support
-
17517302024 R.H. air intake grillR.H. air intake grill
-
17517302025 L.H. air intake grillL.H. air intake grill
-
18605450267 Air intake foamAir intake foam
-
19517302578 Air intake plateAir intake plate
-
20243141640 Screw M4 x 16Screw M4 x 16
-
215248076 Center consoleCenter console
-
2236036 RivetRivet
-
23414631900 Foam-acousticFoam-acoustic
-
245346887 L.H. GrillL.H. Grill
-
245346888 R.H. GrillR.H. Grill
-
255346889 L.H. GrillL.H. Grill
-
255346890 R.H. GrillR.H. Grill
-
265247486 Middle grillMiddle grill
-
275247487 Inlet duct, middleInlet duct, middle
-
285247488 L.H. outlet grill, sideL.H. outlet grill, side
-
2941034 CirclipCirclip
-
30605350268 Air intake foamAir intake foam
-
3236005 RivetRivet
-
33605350359 GrillGrill
-
34605348609 Air intake, brakeAir intake, brake
-
35414227300 ClipClip
-
3640177 Screw 4.8 x 16Screw 4.8 x 16
