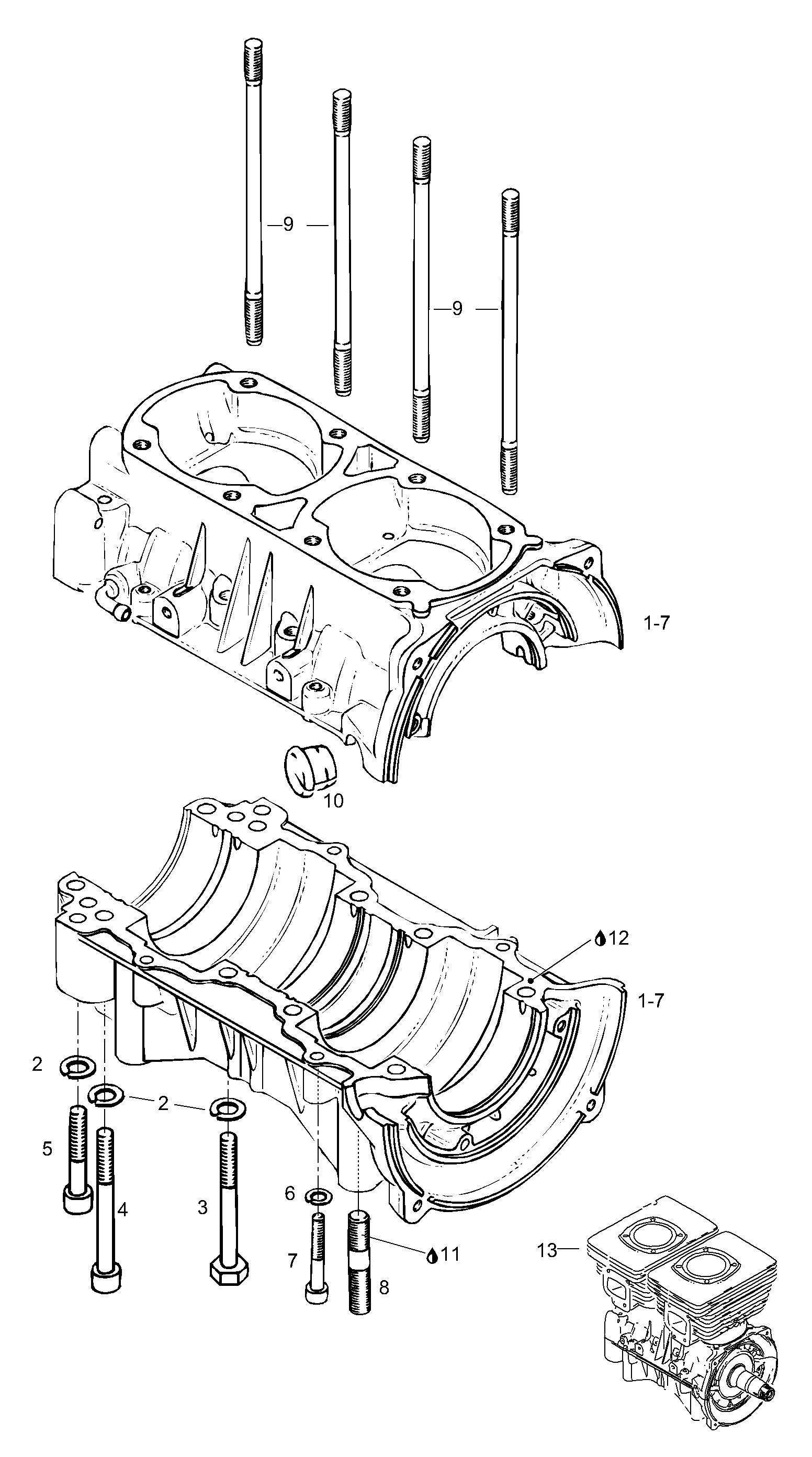

05- Crankcase для BRP Lynx Enduro 400 F - 2004
-
№АртикулНазвание
-
1420888481 Crankcase. Includes items 1 thru 7Crankcase. Includes items 1 thru 7
-
220014 Spring washerSpring washer
-
3420841201 Screw M8x70Screw M8x70
-
4420841831 Allen screw M8x75Allen screw M8x75
-
5420841566 Allen Screw M8x50Allen Screw M8x50
-
620052 Spring washerSpring washer
-
7420241816 Allen Screw M6x40Allen Screw M6x40
-
8420940190 StudStud
-
9420841149 StudStud
-
10420860962 Cable grommetCable grommet
-
11420899785 Loct 221/viol/6cm3Loct 221/viol/6cm3
-
12420899784 Loct 574/orange/50Loct 574/orange/50
-
13300037703 Short block engineShort block engine
