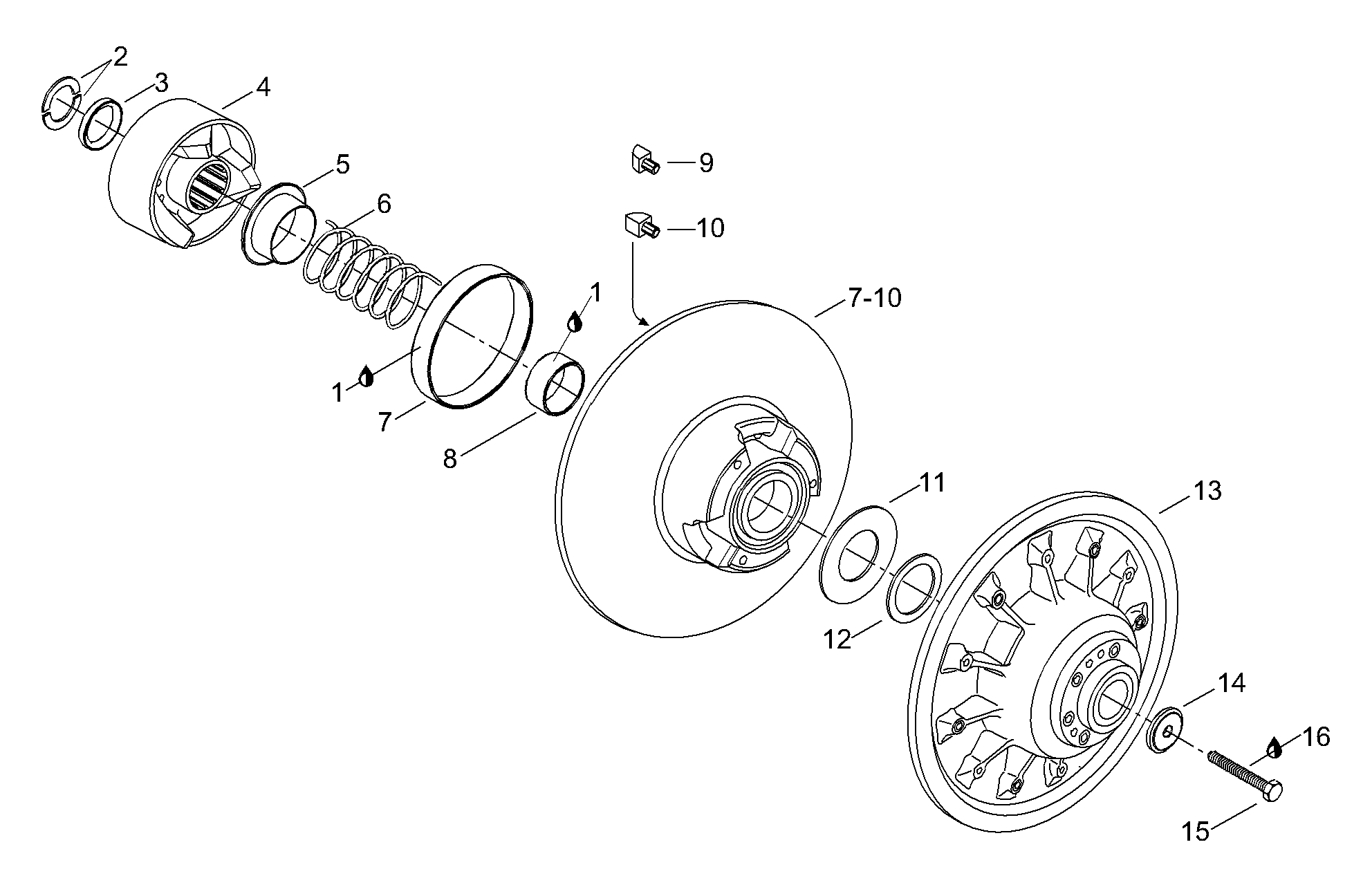

05- Driven Pulley для BRP Lynx Enduro 400 F - 2004
-
№АртикулНазвание
-
1413703100 Loctite 609 10ccLoctite 609 10cc
-
2371911000 Half keyHalf key
-
3417126368 SpacerSpacer
-
4417124700 grad. Cam 47-44 degr.grad. Cam 47-44 degr.
-
5415006000 ProtectorProtector
-
6415092800 Spring, violetSpring, violet
-
7417126403 Sliding pulley assy. Includes items 7 thru 10Sliding pulley assy. Includes items 7 thru 10
-
7415092700 Bushing garlockBushing garlock
-
8415092600 BushingBushing
-
9417126373 Cam slide shoe (rear)Cam slide shoe (rear)
-
10417126374 Cam slide shoe (front)Cam slide shoe (front)
-
11504099600 Stop washerStop washer
-
12504112300 ShimShim
-
13417126401 Fixed half pulley assyFixed half pulley assy
-
14517302322 WasherWasher
-
1540089 Screw M8x75Screw M8x75
