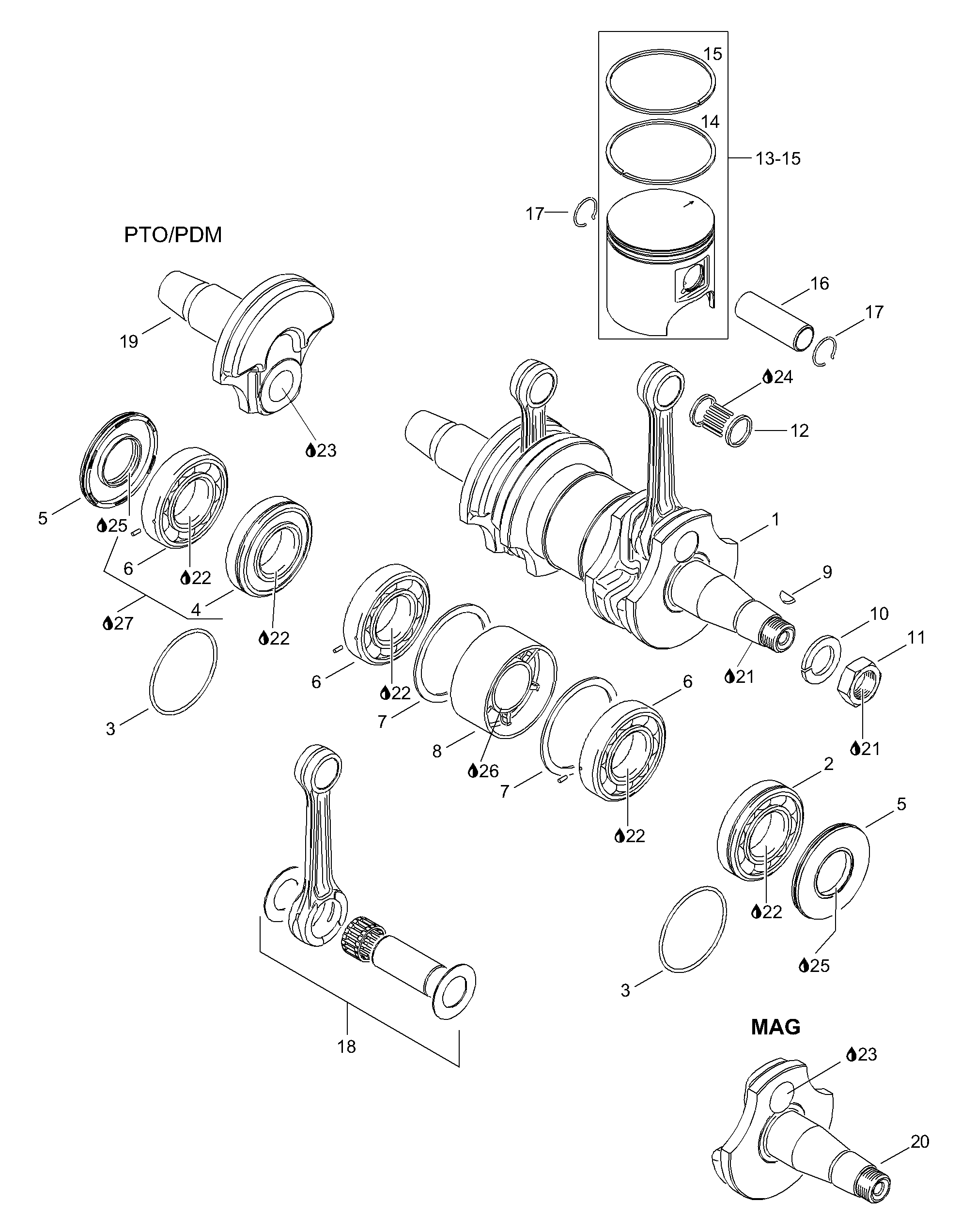

01- Crankshaft Assy для BRP Lynx Enduro 550 F - 2004
-
№АртикулНазвание
-
1420889062 Crankshaft assy. Includes items 1 thru 8Crankshaft assy. Includes items 1 thru 8
-
2420832571 Bearing 6207Bearing 6207
-
3420250165 O-ringO-ring
-
4420832637 Bearing 6207Bearing 6207
-
5290831952 Oil sealOil seal
-
6420832573 B.Bearing 6207B.Bearing 6207
-
7420927710 Retaining diskRetaining disk
-
8420850149 Labyrinth sleeveLabyrinth sleeve
-
9420246055 Woodruff KeyWoodruff Key
-
10420945759 Lock WasherLock Washer
-
11420842230 NutNut
-
12420832420 Needle cageNeedle cage
-
13420889050 Piston assy, 75.86mm. 13 Includes items 15Piston assy, 75.86mm. 13 Includes items 15
-
13420889051 Piston assy, 76.11mm. 13 Includes items 15Piston assy, 76.11mm. 13 Includes items 15
-
13420889052 Piston assy, 76.36mm. 13 Includes items 15Piston assy, 76.36mm. 13 Includes items 15
-
14420815300 Piston ring 76.00 mmPiston ring 76.00 mm
-
14420815301 Piston ring 76.25 mmPiston ring 76.25 mm
-
14420815302 Piston ring 76.50 mmPiston ring 76.50 mm
-
15420815155 Piston ring 76.00 mmPiston ring 76.00 mm
-
15420815156 Piston ring 76.25 mmPiston ring 76.25 mm
-
15420815157 Piston ring 76.50 mmPiston ring 76.50 mm
-
16420916405 Piston pinPiston pin
-
17420845106 CirclipCirclip
-
18420889064 Rod repair kitRod repair kit
-
19420819181 Crankhalf P.T.O sideCrankhalf P.T.O side
-
20420819210 Crankhalf MAG SideCrankhalf MAG Side
-
21420899785 Loctite 221, 10cm3Loctite 221, 10cm3
-
22293800070 Loctite 767, 8 ozLoctite 767, 8 oz
-
23420897341 Loctite,14486/10ccLoctite,14486/10cc
-
25420899271 Petamo greasePetamo grease
-
26413802900 Injection oil (12 x 1 l)Injection oil (12 x 1 l)
-
27293550021 Isoflex grease, 45 gIsoflex grease, 45 g
