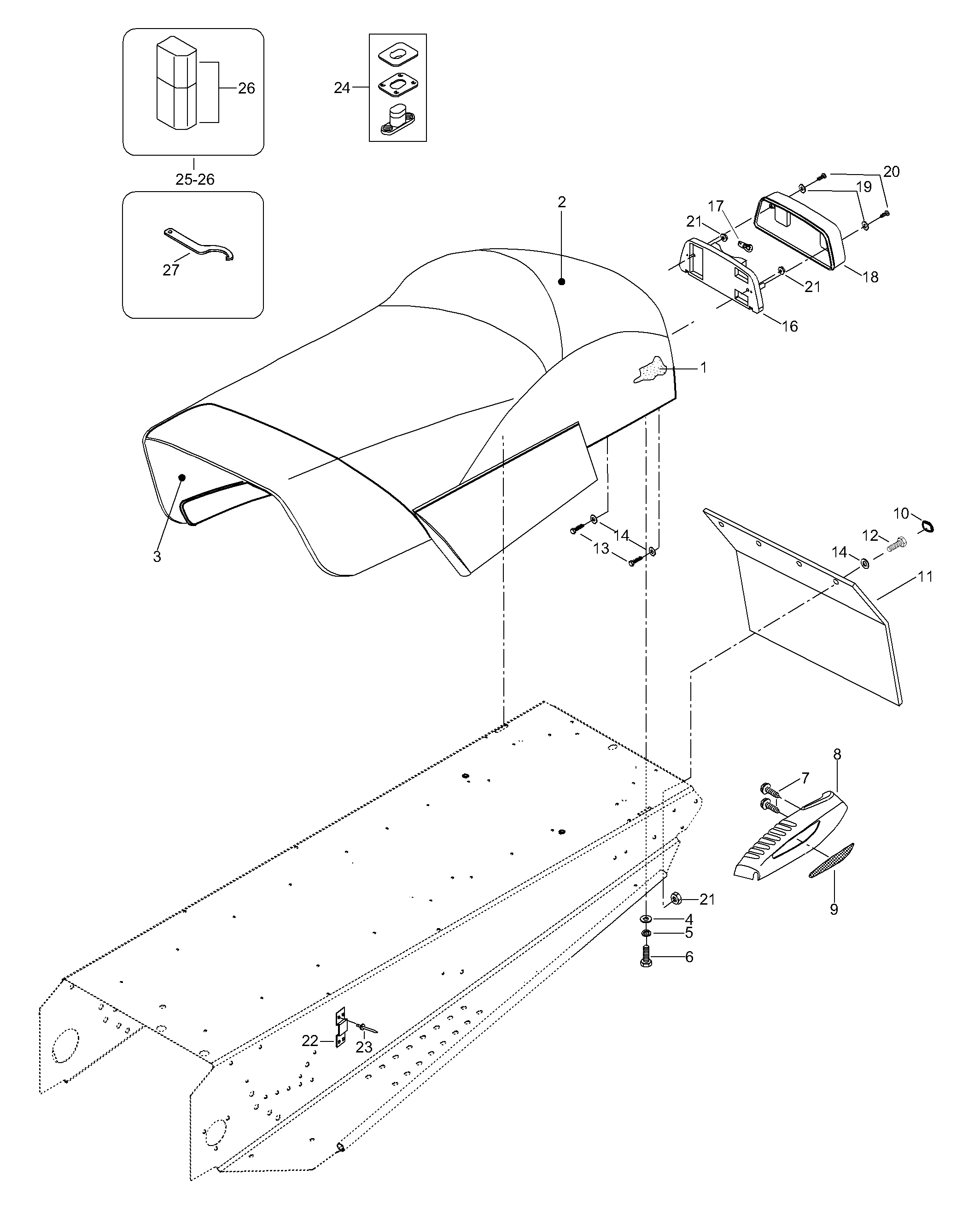

09- Body для BRP Lynx Enduro 550 F - 2004
-
№АртикулНазвание
-
15243866 Seat foamSeat foam
-
2605148612 Seat coverSeat cover
-
35146815 Seat bottomSeat bottom
-
420010 WasherWasher
-
520014 Lock washerLock washer
-
640015 Screw M8 x 30Screw M8 x 30
-
740870 Hex. tapping screwHex. tapping screw
-
8861777700 R.H. mouldingR.H. moulding
-
8861777800 L.H. mouldingL.H. moulding
-
9516000241 R.H. rear reflectorR.H. rear reflector
-
9516000242 L.H. rear reflectorL.H. rear reflector
-
10415073300 CapCap
-
115246131 Snow guardSnow guard
-
1240078 Screw M6 x 22Screw M6 x 22
-
1340002 Screw M6 x 40Screw M6 x 40
-
1420009 WasherWasher
-
155341214 Taillamp assy. Includes items 15 thru 20Taillamp assy. Includes items 15 thru 20
-
16414979400 Taillamp housingTaillamp housing
-
17410504000 BulbBulb
-
18414513700 LensLens
-
19414516400 WasherWasher
-
20414516300 ScrewScrew
-
2133200 Nut M6Nut M6
-
225447908 Seat fastening plateSeat fastening plate
-
2336489 RivetRivet
-
245444390 Seat BuckleSeat Buckle
-
255445403 Tool box with tools. Includes items 25 thru 26Tool box with tools. Includes items 25 thru 26
-
26572036310 Tool boxTool box
-
27529032900 Wrench adjustWrench adjust
