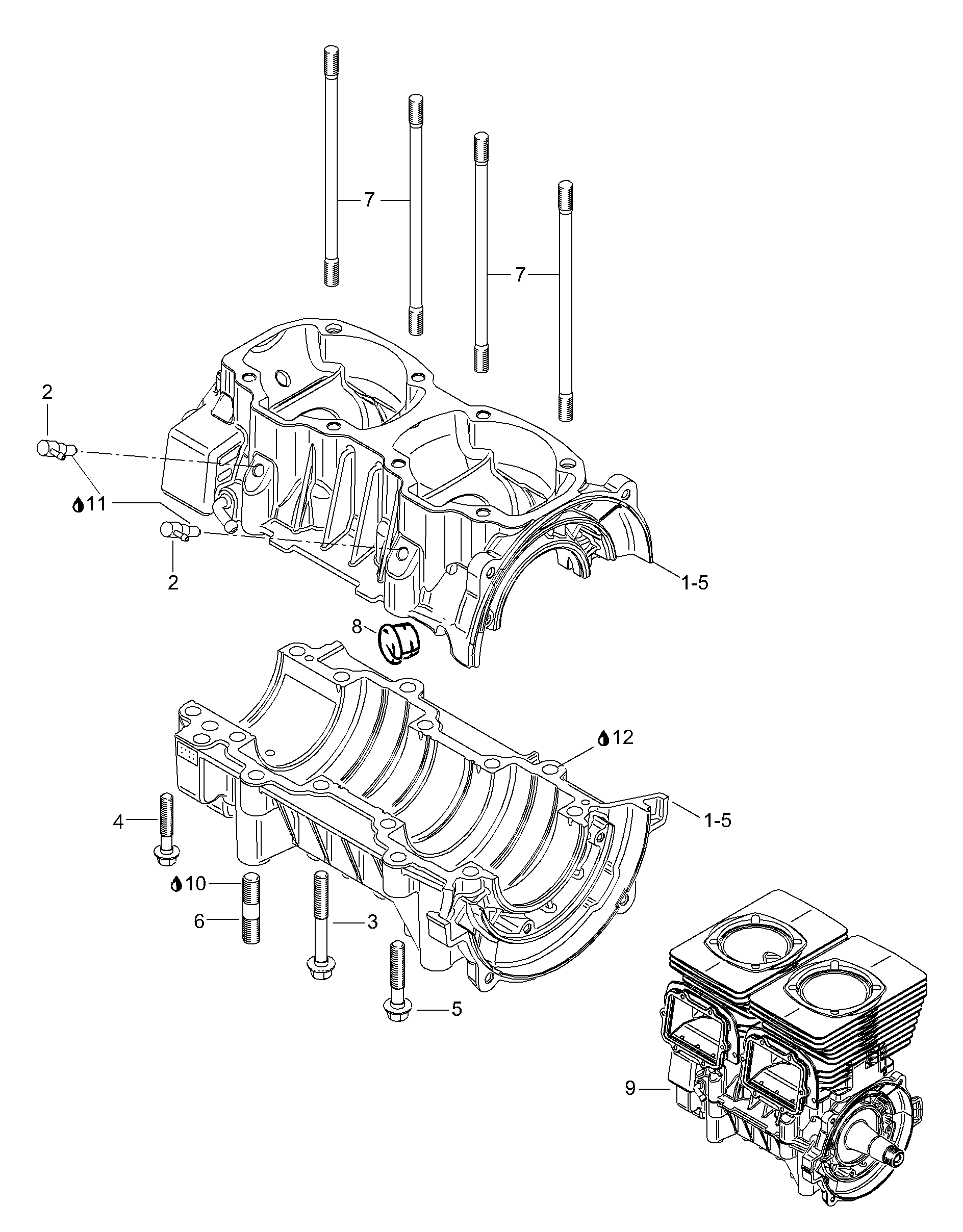

05- Crankcase для BRP Lynx Safari 400 - 2004
-
№АртикулНазвание
-
1420888486 Crankcase. Includes items 1 thru 5Crankcase. Includes items 1 thru 5
-
2420956510 Check valve assyCheck valve assy
-
3420640951 Screw M8 x 68,5Screw M8 x 68,5
-
4420640431 Screw M8 x 45Screw M8 x 45
-
5420941451 Screw M6 x 40Screw M6 x 40
-
6420940190 StudStud
-
7420841149 StudStud
-
8420860962 Cable grommetCable grommet
-
9300037705 Short block engineShort block engine
-
10420899785 Loct 221/6cm3Loct 221/6cm3
-
11413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
12420297906 Sealing compound, 30 mlSealing compound, 30 ml
