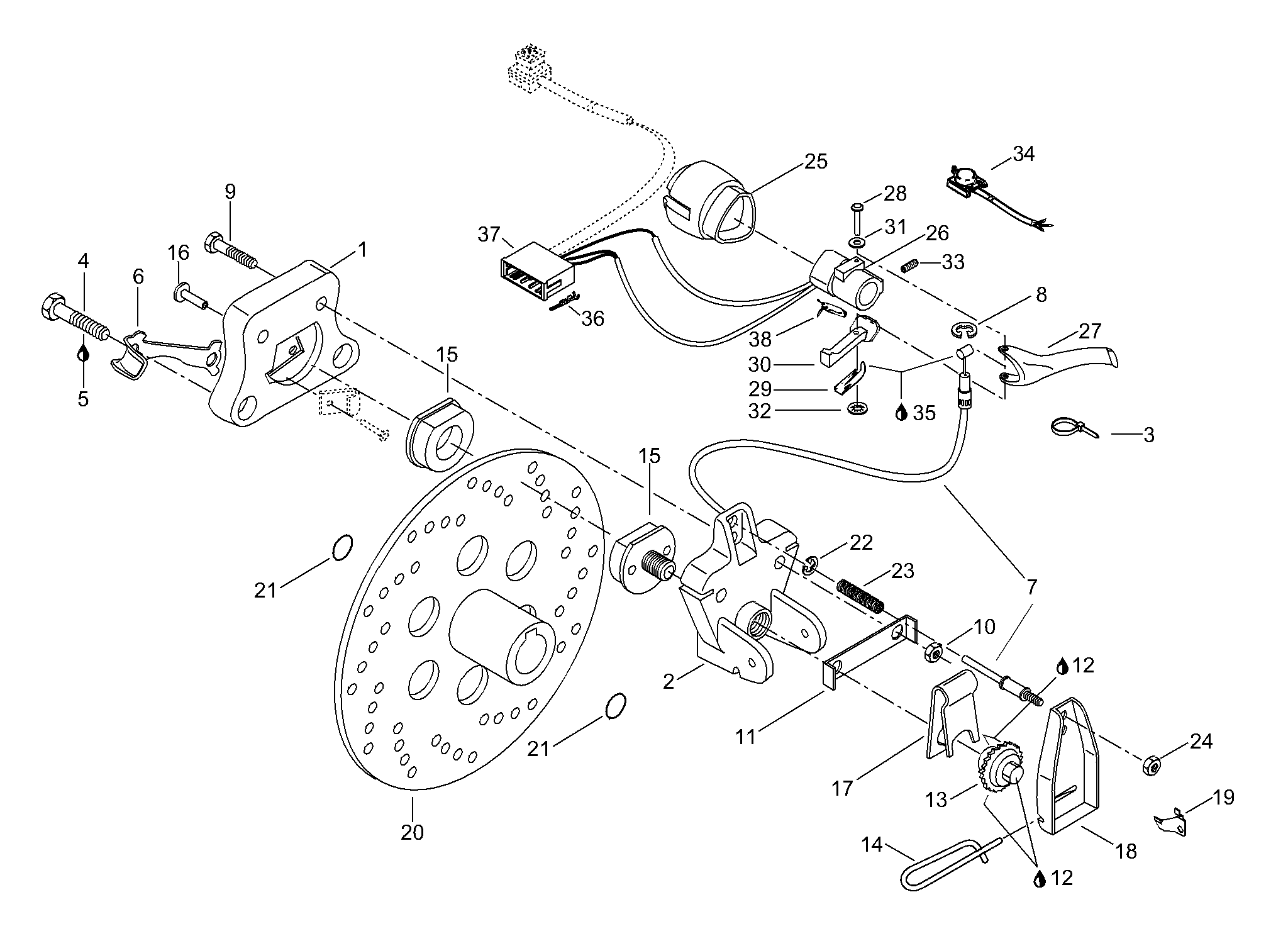

06- Brake Assy для BRP Lynx Safari 400 - 2004
-
№АртикулНазвание
-
1414466800 CaliperCaliper
-
2507032303 Brake lining holderBrake lining holder
-
327026 Tie rapTie rap
-
4207103544 Screw M10 x 35Screw M10 x 35
-
5293800060 Loctite 243Loctite 243
-
6507032316 Locking tabLocking tab
-
7507032315 Brake cableBrake cable
-
831038 CirclipCirclip
-
940010 Screw M8x55Screw M8x55
-
1033011 Nut elastic M8Nut elastic M8
-
11507020400 Locking tabLocking tab
-
12293800023 Loctite 767Loctite 767
-
13507032310 Ratchel wheelRatchel wheel
-
14507032306 PinPin
-
15860701700 Brake pad kitBrake pad kit
-
16390409600 RivetRivet
-
17507020200 SpringSpring
-
18507021500 Brake leverBrake lever
-
19507009400 Ratchet springRatchet spring
-
20507029000 Brake discBrake disc
-
21414928900 O-ringO-ring
-
22371901300 CirclipCirclip
-
23414460600 SpringSpring
-
2433010 Nut elastic M6Nut elastic M6
-
255448256 Brake coverBrake cover
-
26507032313 Brake handle housingBrake handle housing
-
27572025700 Handle brakeHandle brake
-
28517229400 PinPin
-
29507032317 SpringSpring
-
30572025200 Brake leverBrake lever
-
31414729400 Spring washerSpring washer
-
32389804300 Push nutPush nut
-
33414440800 Screw M8x10Screw M8x10
-
34415085800 Dimmer switchDimmer switch
-
35293550004 Dielectric greaseDielectric grease
-
3642603 Male terminalMale terminal
-
38415085700 Brake light switchBrake light switch
