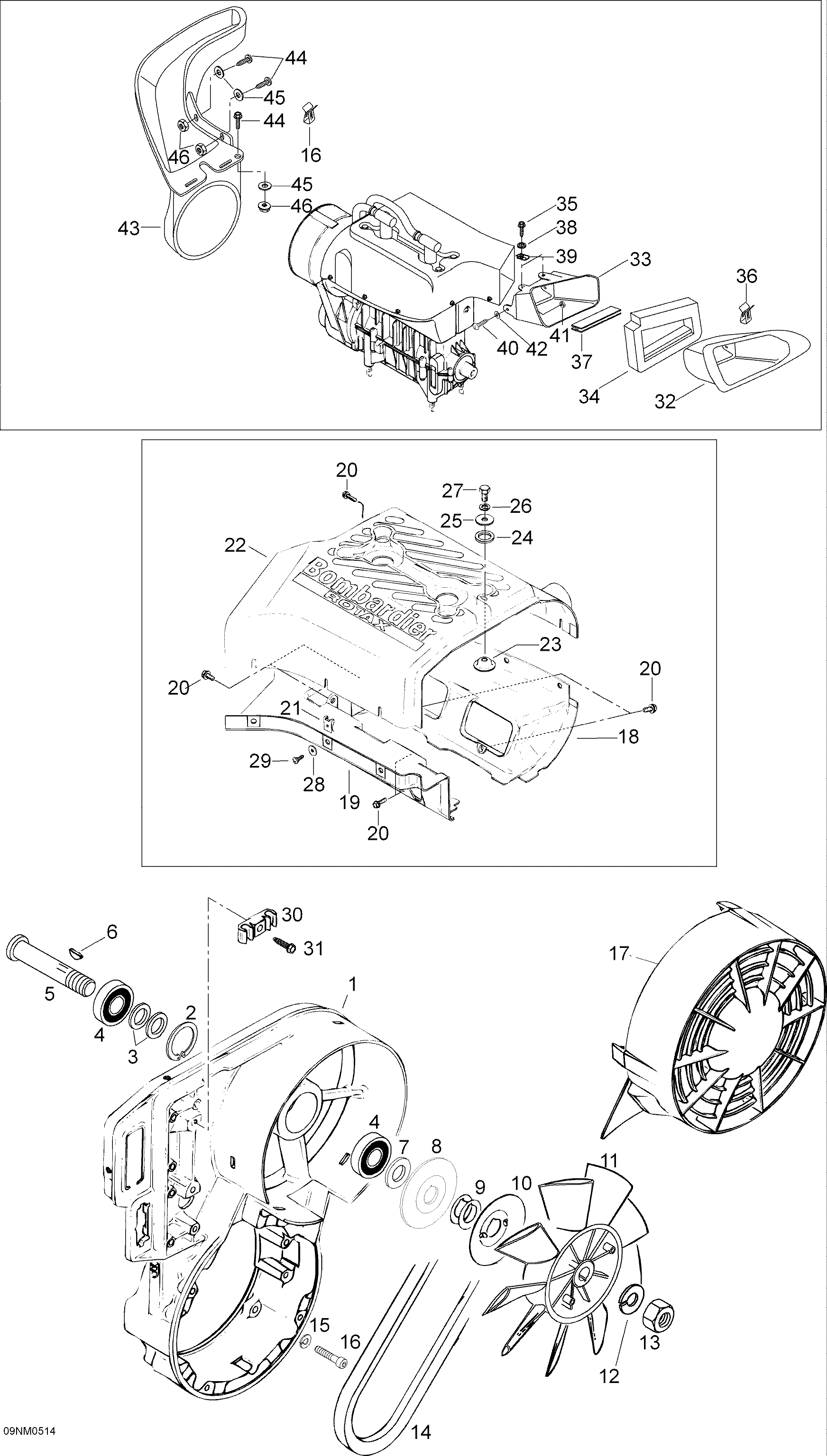

01- Fan для BRP Lynx Forest Fox - 2005
-
№АртикулНазвание
-
1420912203 Fan housingFan housing
-
2420945880 Retaining ringRetaining ring
-
3420244585 ShimShim
-
4420832161 BearingBearing
-
5420937940 ShaftShaft
-
6420246015 KeyKey
-
7420827650 Distance sleeveDistance sleeve
-
8420980496 Belt diskBelt disk
-
9420827080 Adj.washer 0.5Adj.washer 0.5
-
9420827082 Adj.washer 0.2Adj.washer 0.2
-
10420980523 Protection washerProtection washer
-
11420866294 FanFan
-
12420945756 Spring washerSpring washer
-
13420942285 NutNut
-
14414630800 V-beltV-belt
-
15420945751 Spring washerSpring washer
-
1640024 Socket head screw M6 x 30Socket head screw M6 x 30
-
17420975695 Fan coverFan cover
-
18420810764 Lower cowl (exhaust)Lower cowl (exhaust)
-
19420810792 Lower cowlLower cowl
-
20420240580 Taptite Screw M6x16Taptite Screw M6x16
-
21417300005 Sping NutSping Nut
-
22420810776 Upper caseUpper case
-
23420827817 Cup washerCup washer
-
24420960865 Rubber washerRubber washer
-
25420227935 WasherWasher
-
26420945752 Lock washerLock washer
-
27207181644 Screw M8x16Screw M8x16
-
28420926180 WasherWasher
-
29417300006 Selftapping screwSelftapping screw
-
30420860940 Wire clampWire clamp
-
31420941250 Taptite screw M6 x 20Taptite screw M6 x 20
-
325145108 Outlet ductOutlet duct
-
33572083700 Outlet ductOutlet duct
-
345346202 Seal foamSeal foam
-
3540870 ScrewScrew
-
36414227300 ClipClip
-
375446535 FoamFoam
-
38732900047 WasherWasher
-
39417300005 Nut springNut spring
-
4040247 Screw M5x16Screw M5x16
-
4133062 Elastic flanged nutElastic flanged nut
-
4220008 WasherWasher
-
435246991 Inlet ductInlet duct
-
4440308 Socket head screw M5 x 16Socket head screw M5 x 16
-
4520002 Washer A5,3Washer A5,3
-
4633062 Elastic flanged nut M5Elastic flanged nut M5
