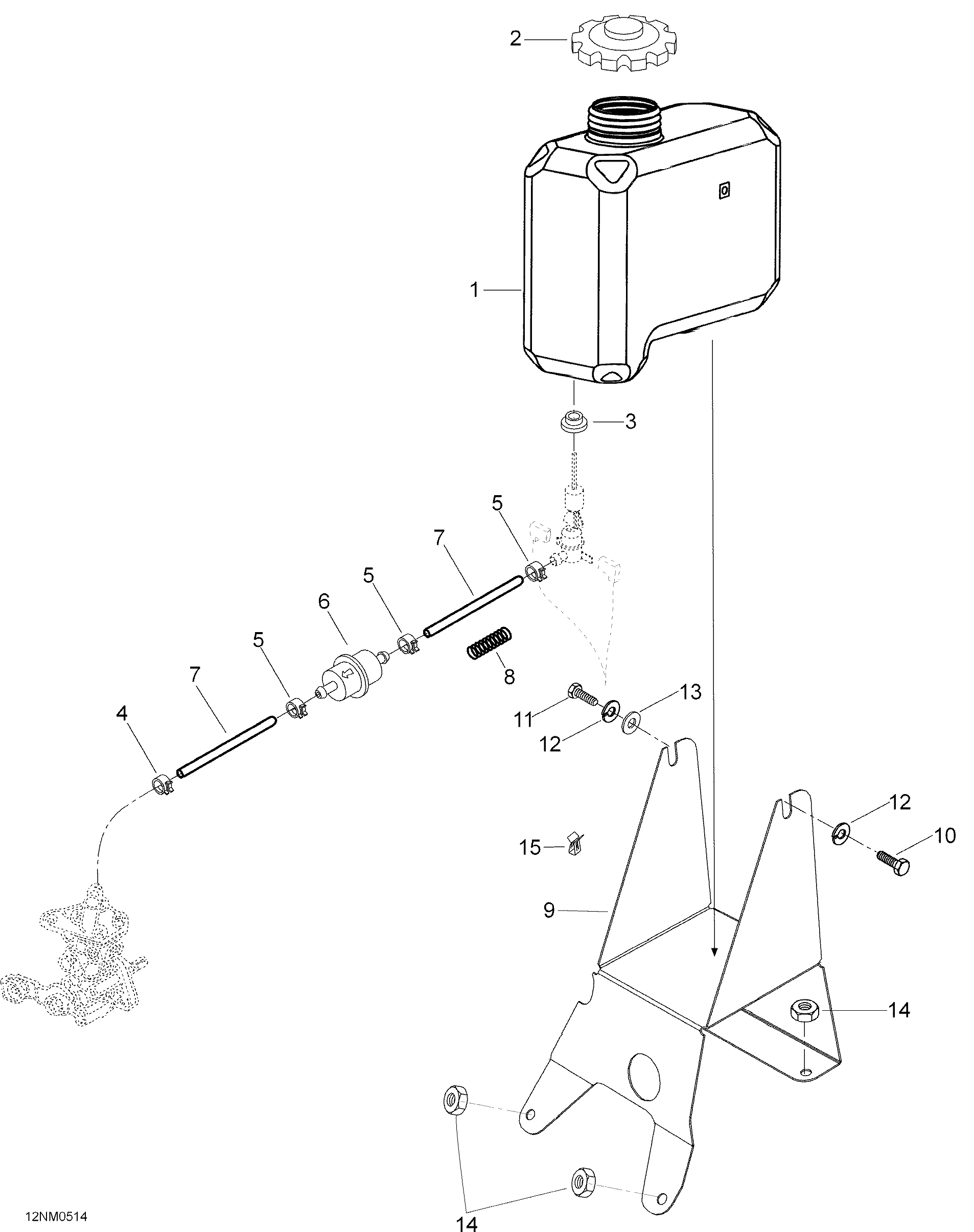

02- Oil Tank And Support для BRP Lynx Forest Fox - 2005
-
№АртикулНазвание
-
1572106700 Oil tankOil tank
-
2519000044 CapCap
-
3570023000 GrommetGrommet
-
4414420700 ClampClamp
-
5414415200 ClampClamp
-
6414536500 Oil filterOil filter
-
739046 HoseHose
-
825005 SpringSpring
-
95246036 Oil tank supportOil tank support
-
1040115 Hex. screw M6 x 12Hex. screw M6 x 12
-
1140114 hex. screw M6 x 10hex. screw M6 x 10
-
1220052 Spring washerSpring washer
-
1320009 Washer A6,4Washer A6,4
-
1433200 Elastic flanged nut M6Elastic flanged nut M6
-
15414227300 ClipClip
