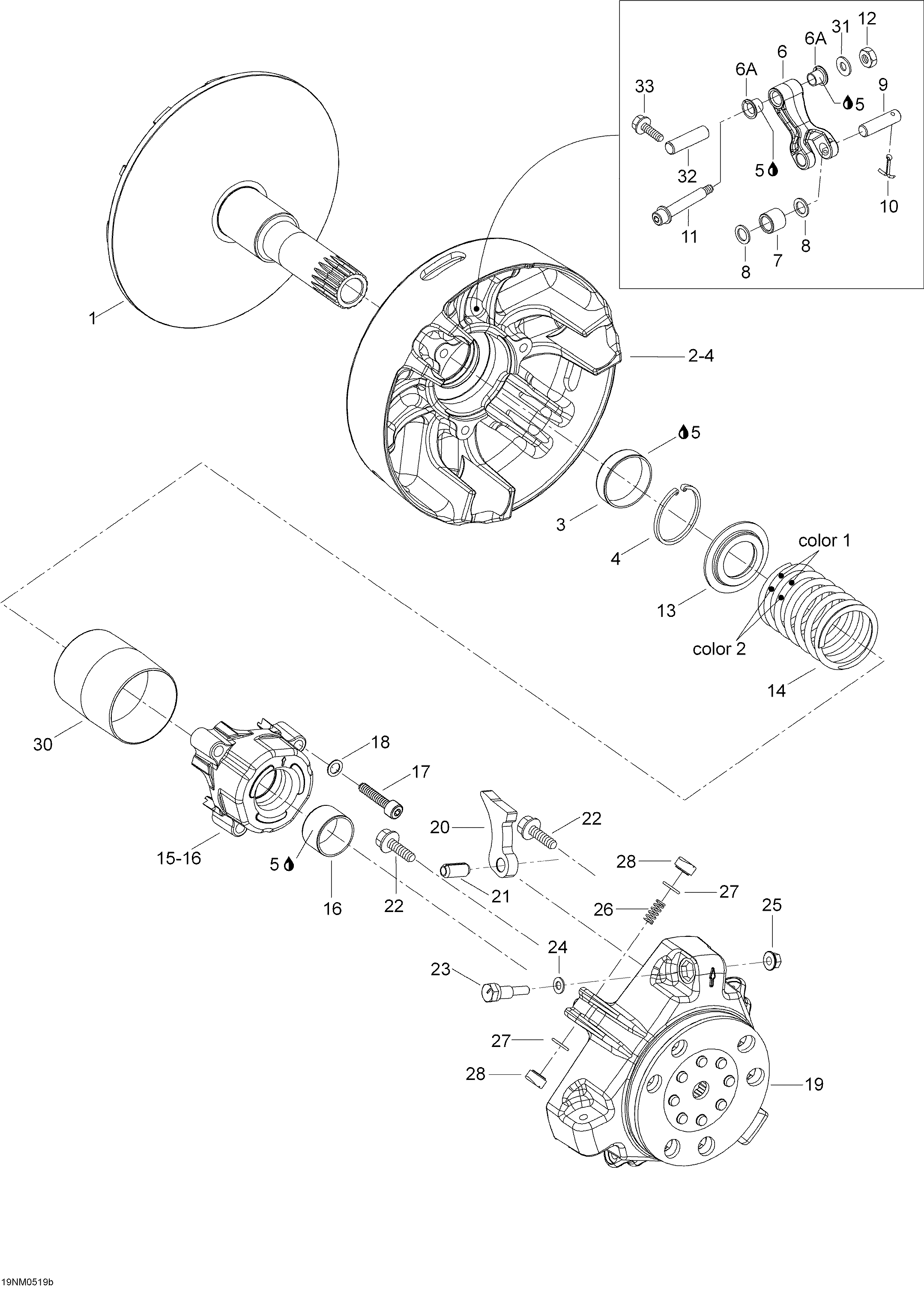

05- Drive Pulley для BRP Lynx Rave 800 - 2005
-
№АртикулНазвание
-
1417222167 Fixe flangeFixe flange
-
1417222294 Fixe flangeFixe flange
-
2…4417222171 Sliding flangeSliding flange
-
2…4417222181 Sliding flangeSliding flange
-
3417006900 Bushing outer halfBushing outer half
-
3417222182 Bushing outer halfBushing outer half
-
4293370037 CirclipCirclip
-
5413703100 Loctite 609Loctite 609
-
6…7417222671 Lever assyLever assy
-
6417222633 Flange bushingFlange bushing
-
7417003900 Roller ass'yRoller ass'y
-
8417004302 Thrust washerThrust washer
-
9417222594 PinPin
-
9417004308 PinPin
-
10732958001 Cotter pinCotter pin
-
11417222028 Fitting screwFitting screw
-
12232561414 Lock nutLock nut
-
13417222312 Spring seatSpring seat
-
14415015400 Spring, Violet/GreenSpring, Violet/Green
-
14417222371 Spring, Green/WhiteSpring, Green/White
-
15…16417007500 Spring cover ass'ySpring cover ass'y
-
16417009204 Spring cover bushingSpring cover bushing
-
17205084044 Socket head screw M6 x 40Socket head screw M6 x 40
-
18250200009 WasherWasher
-
19417222213 Gouvernor cup ass'yGouvernor cup ass'y
-
20417222546 Ramp 410Ramp 410
-
20417222515 Ramp 412Ramp 412
-
21250400009 Dowel tube M8x24Dowel tube M8x24
-
22250000059 Hex. locking screw M6 x 18Hex. locking screw M6 x 18
-
23417005500 Calibration screwCalibration screw
-
24417005600 WasherWasher
-
25233061414 Locking nut M6Locking nut M6
-
26417005700 SpringSpring
-
27732401030 O-RingO-Ring
-
28417222362 Shoe sliderShoe slider
-
28417005800 Shoe sliderShoe slider
-
30417009205 ProtectorProtector
-
31234061410 WasherWasher
-
32417009202 Lever axleLever axle
-
33210361296 Forming screwForming screw
