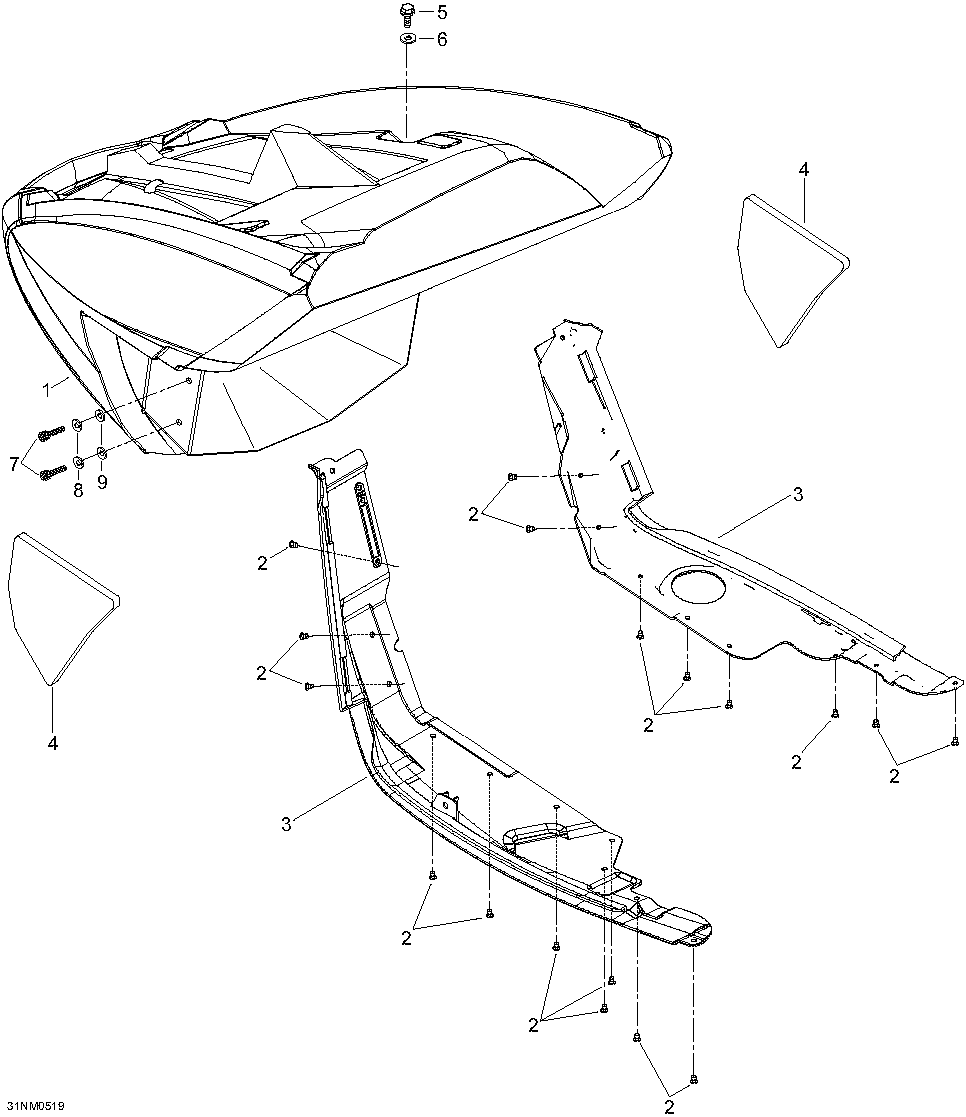

09- Bottom Pan для BRP Lynx Rave 800 - 2005
-
№АртикулНазвание
-
1605150087 Front bottom panFront bottom pan
-
236037 RivetRivet
-
3502006702 R.H. Bottom panR.H. Bottom pan
-
3502006703 L.H. Bottom panL.H. Bottom pan
-
4605151228 R.H. FoamR.H. Foam
-
4605151229 L.H. FoamL.H. Foam
-
540327 Hex. screw M6 x 12Hex. screw M6 x 12
-
620038 WasherWasher
-
740332 Socket head screw M6 x 16Socket head screw M6 x 16
-
820052 Lock washer A6Lock washer A6
-
920009 Washer A6.4Washer A6.4
