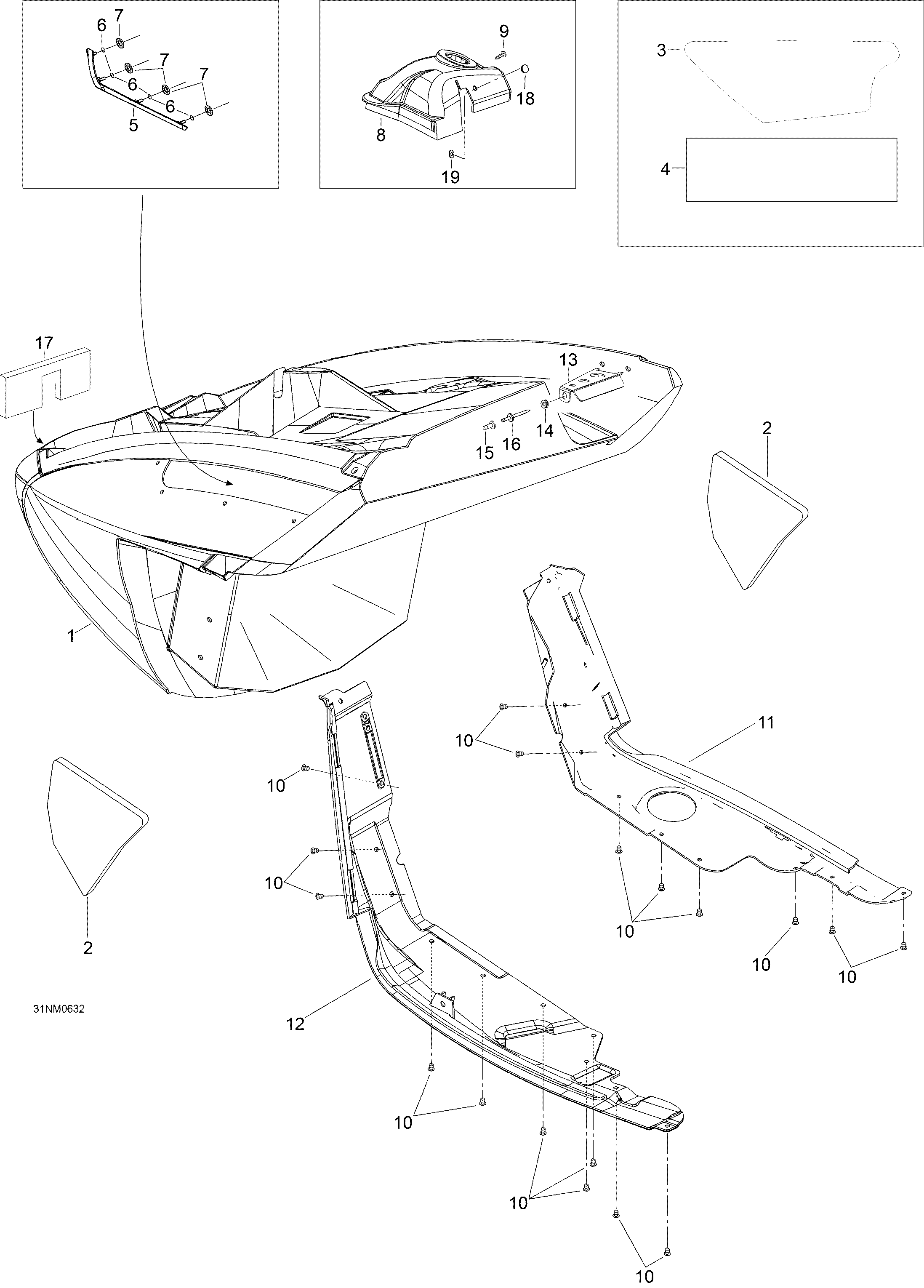

09- Bottom Pan для BRP Lynx Adventure LX 600 - 2006
-
№АртикулНазвание
-
1605153651 Front bottom pan ass'y. Includes 1 to 8Front bottom pan ass'y. Includes 1 to 8
-
2605151228 L.H. FoamL.H. Foam
-
2605151229 R.H. FoamR.H. Foam
-
3605153204 R.H. Foam (rear)R.H. Foam (rear)
-
444001 Heat protector (1000 mm x 1000 mm)Heat protector (1000 mm x 1000 mm)
-
5605253929 Intake frameIntake frame
-
648231 O-ringO-ring
-
736084 Snap ringSnap ring
-
8605353758 R.H. Shock coverR.H. Shock cover
-
8605353759 L.H. Shock coverL.H. Shock cover
-
9364450 RivetRivet
-
1036037 RivetRivet
-
11502006702 R.H. Bottom panR.H. Bottom pan
-
12502006703 L.H. Bottom panL.H. Bottom pan
-
13605353182 SupportSupport
-
14517302841 GrommetGrommet
-
1536013 RivetnutRivetnut
-
1636014 RivetRivet
-
17605353483 FoamFoam
-
18414644300 DartDart
-
1920009 Washer A6.4Washer A6.4
