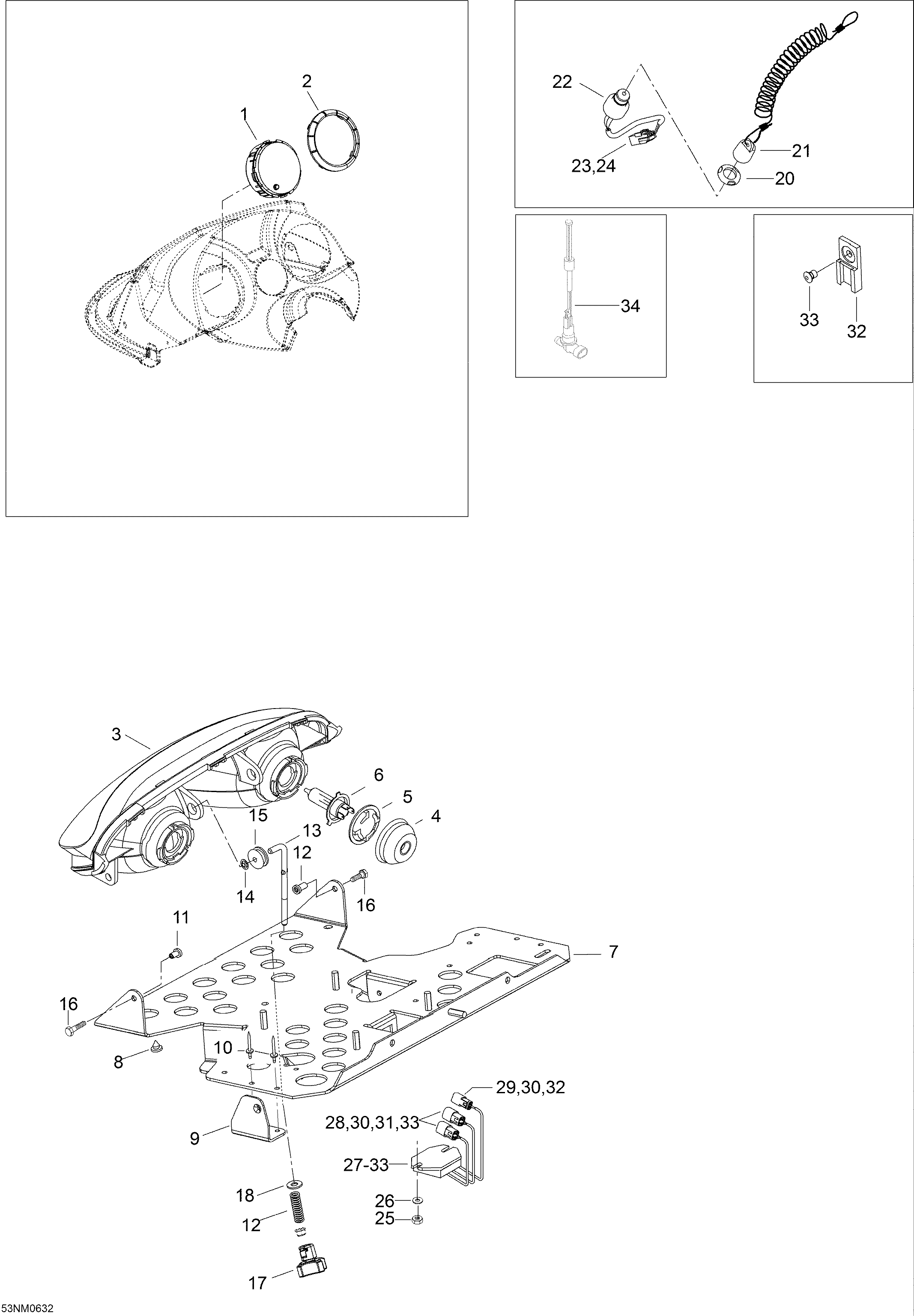

10- Electrical System для BRP Lynx Adventure LX 600 - 2006
-
№АртикулНазвание
-
1515176301 SpeedometerSpeedometer
-
2515175651 Gauge ringGauge ring
-
3515175603 Halogen headlamp ass'y. Includes 15 to 18Halogen headlamp ass'y. Includes 15 to 18
-
4410607100 CoverCover
-
5410608300 Bulp holderBulp holder
-
6410504401 Halogen bulp 60/55WHalogen bulp 60/55W
-
7605253348 Headlamp supportHeadlamp support
-
8605452114 PluggPlugg
-
9605453984 L.H. BracketL.H. Bracket
-
9605453985 R.H. BracketR.H. Bracket
-
1036108 RivetRivet
-
11250100018 Well-nutWell-nut
-
12415100600 SpringSpring
-
13517295800 Adjuster RodAdjuster Rod
-
14732610072 Nut PushNut Push
-
15415100800 GrommetGrommet
-
1640231 Hex. screw M5 x 30Hex. screw M5 x 30
-
17515175975 KnobKnob
-
1820003 Washer A6,4Washer A6,4
-
19278000508 Plastic nutPlastic nut
-
20515166900 DESS capDESS cap
-
21515175797 DESS switchDESS switch
-
2242603 Male connectorMale connector
-
2342271 Male connector housingMale connector housing
-
2433010 Elastic stop nut M6Elastic stop nut M6
-
2620009 Washer A6.4Washer A6.4
-
25515175968 Voltage regulator. Includes 37 to 43Voltage regulator. Includes 37 to 43
-
26278001477 Male terminal housingMale terminal housing
-
27278001674 Male terminal housingMale terminal housing
-
28515175568 Male terminalMale terminal
-
29278001478 Male lockMale lock
-
30278001672 Male lockMale lock
-
31293000052 Sealing capSealing cap
-
32515175917 ClipClip
-
3336005 RivetRivet
-
34605452095 Oil sensorOil sensor
