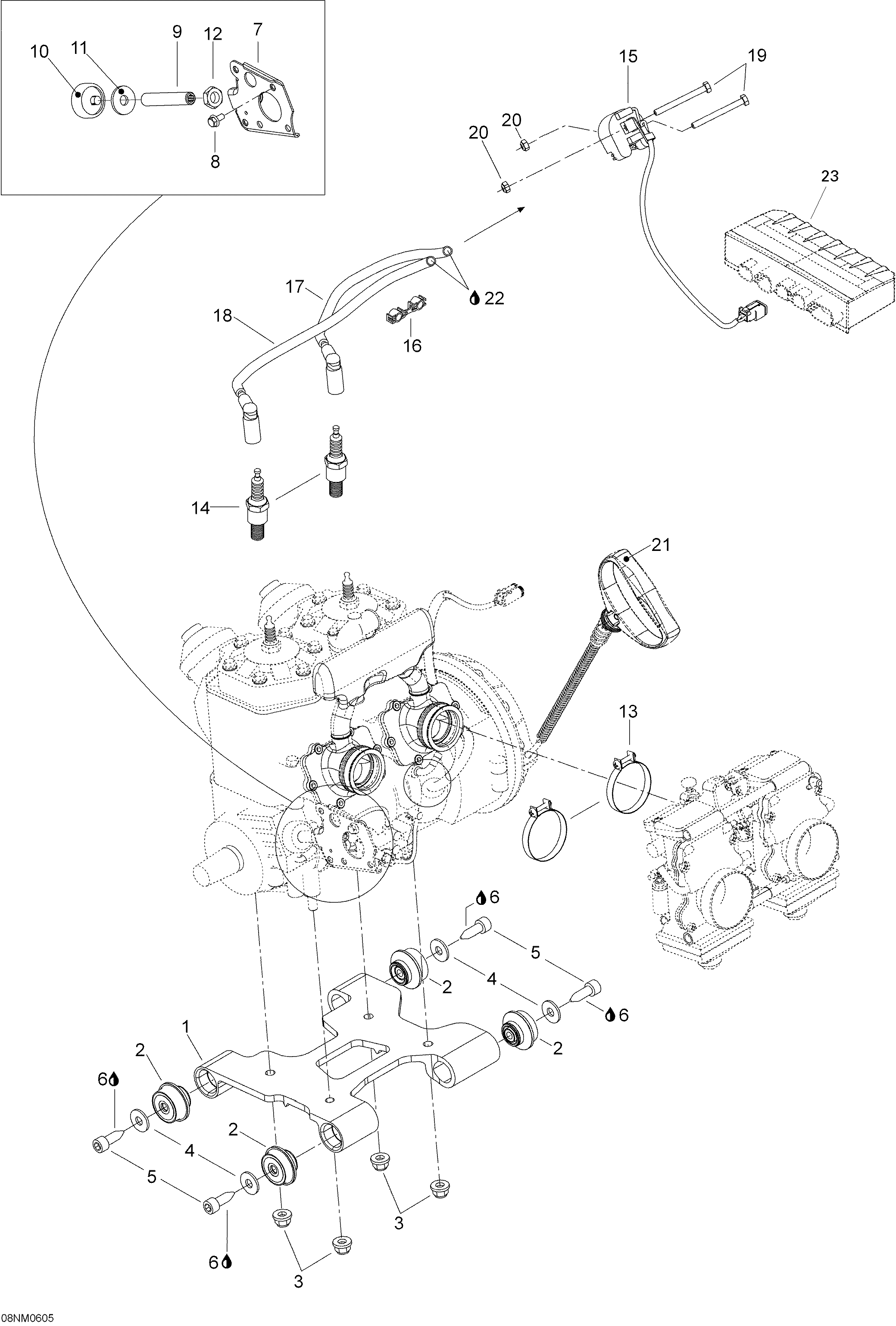

01- Engine And Engine Support для BRP Lynx Rave N-duro 600 - 2006
-
№АртикулНазвание
-
1512059689 Engine supportEngine support
-
2512059738 Rubber mountRubber mount
-
333074 Elastic flanged nut M10Elastic flanged nut M10
-
4506151251 WasherWasher
-
5250000094 Screw M10 x 30Screw M10 x 30
-
6293800060 Liima Loctite 243, 10mlLiima Loctite 243, 10ml
-
7512059840 PlatePlate
-
840327 Hex. screw M6 x 12Hex. screw M6 x 12
-
9250500007 Stopper screwStopper screw
-
10512059610 StopperStopper
-
1120023 WasherWasher
-
12232170411 Nut M14Nut M14
-
13512059835 ClampClamp
-
14512059533 Spark plug BR9 ECSSpark plug BR9 ECS
-
15512059564 Ignition coilIgnition coil
-
16410914600 Plastic clipPlastic clip
-
17512059695 Ignition cable, 300 mmIgnition cable, 300 mm
-
18512059696 Ignition cable, 375 mmIgnition cable, 375 mm
-
1940031 Screw M6 x 25Screw M6 x 25
-
2033200 Elastic stop nut M6Elastic stop nut M6
-
21572084400 GripGrip
-
22293550004 GreaseGrease
-
23512059850 Calibration moduleCalibration module
