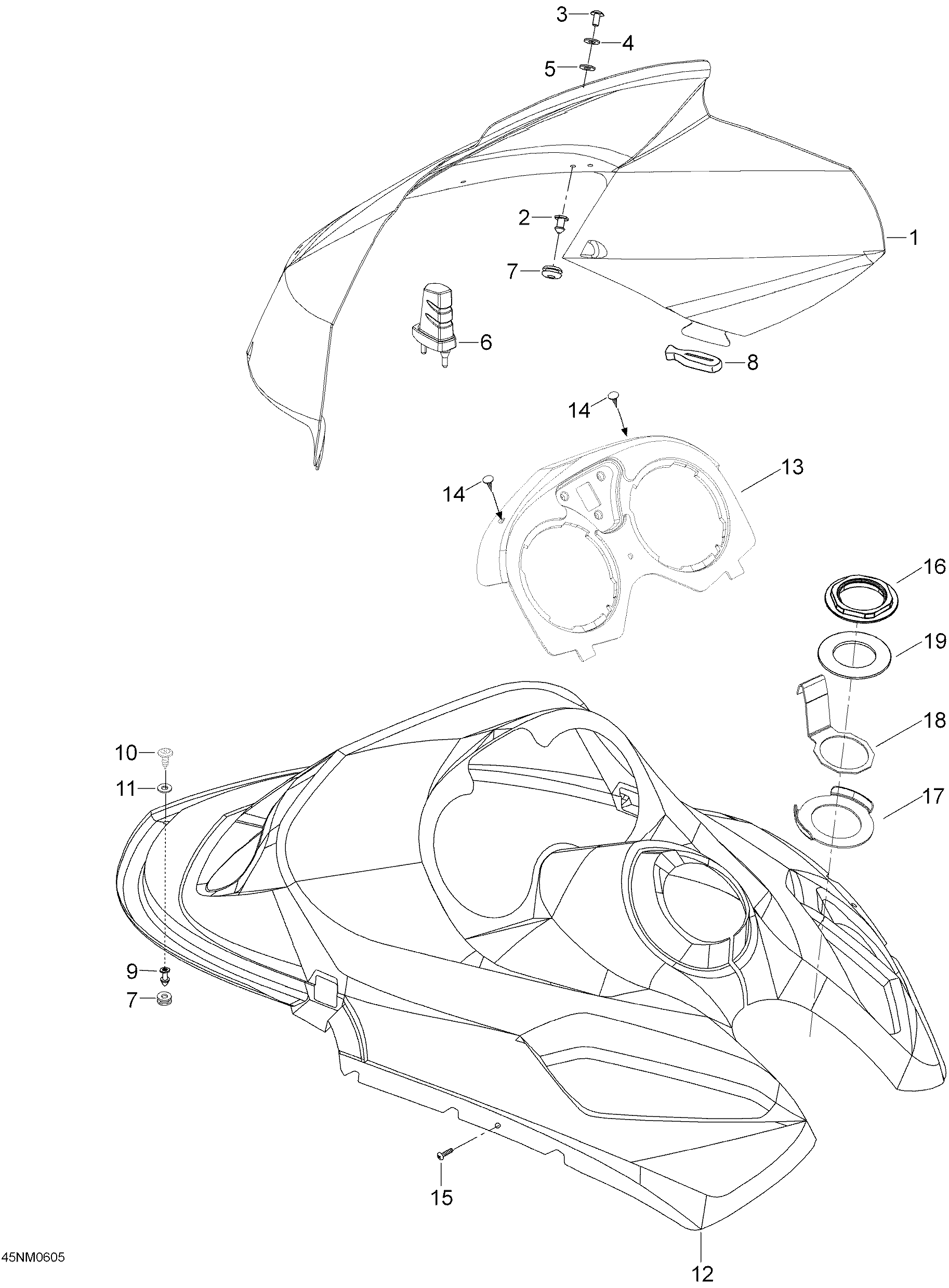

09- Windshield And Console для BRP Lynx Rave N-duro 600 - 2006
-
№АртикулНазвание
-
1605153310 Windshield,Windshield,
-
2517303439 KnobKnob
-
3250000146 ScrewScrew
-
4250200025 WasherWasher
-
5250200024 WasherWasher
-
6605353583 Windshield supportWindshield support
-
7517302841 GrommetGrommet
-
8570023800 LatchLatch
-
9517302719 KnobKnob
-
10208651481 Screw M5 x 14Screw M5 x 14
-
11250200025 WasherWasher
-
12605253304 ConsoleConsole
-
13605253398 Indicator supportIndicator support
-
14414644300 DartDart
-
1540176 Screw M5 x 12Screw M5 x 12
-
16517302043 NutNut
-
17605354206 Support plateSupport plate
-
18605354207 Cover plateCover plate
-
195447116 GasketGasket
