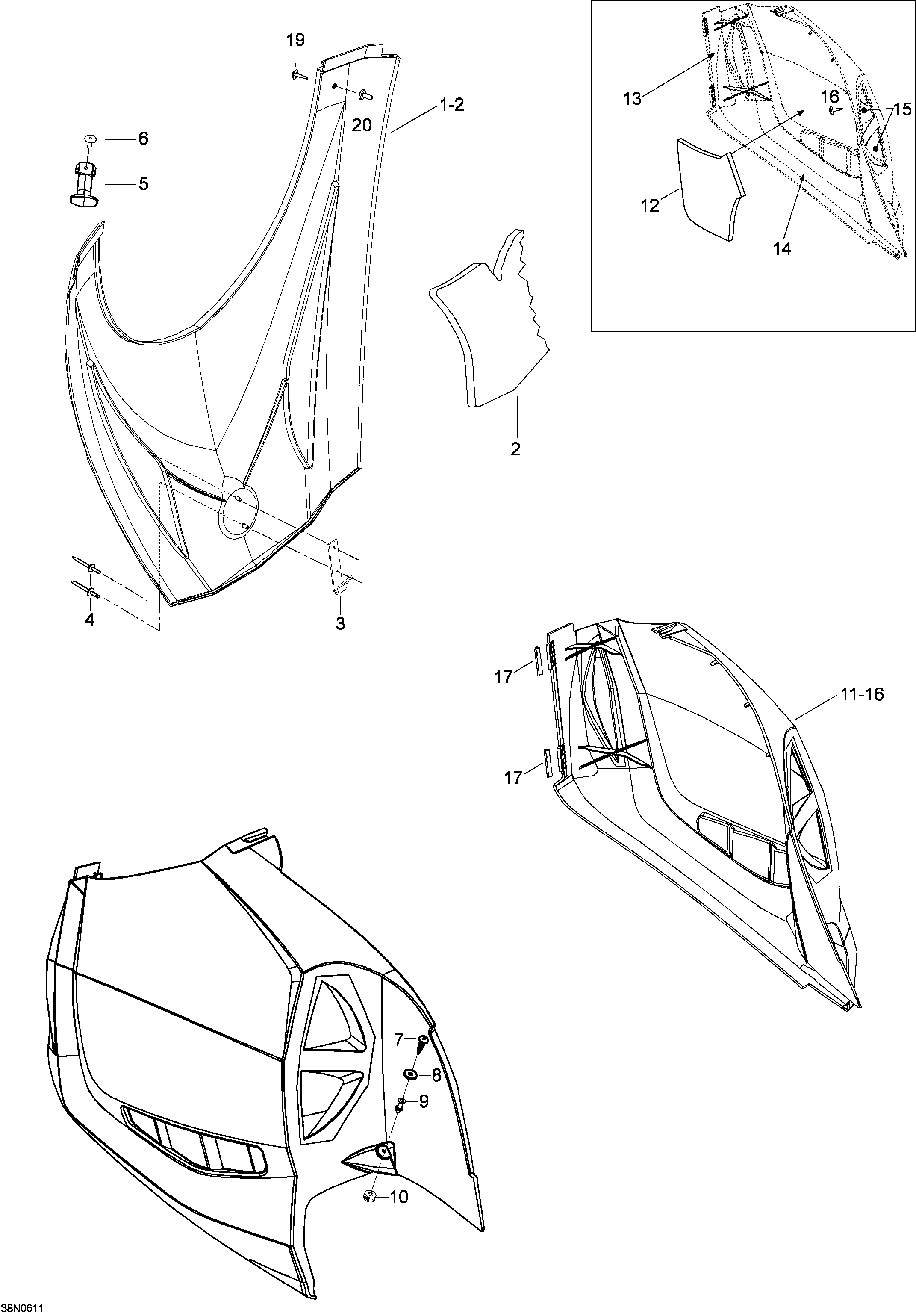

09- Hood для BRP Lynx Rave Xtrim N-Duro 600HO SDI - 2006
-
№АртикулНазвание
-
1605153160 Hood, pre ass'y, Jet Black. Includes 1 to 2Hood, pre ass'y, Jet Black. Includes 1 to 2
-
2605252248 FoamFoam
-
3605353185 BracketBracket
-
436004 RivetRivet
-
5570027100 LatchLatch
-
636037 RivetRivet
-
7208651481 Screw M5 x 14Screw M5 x 14
-
8250200025 WasherWasher
-
9517245800 KnobKnob
-
10517302841 GrommetGrommet
-
11605153150 R.H. Panel, pre ass'y, Jet Black. Includes 11 to 16R.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
-
11605153152 L.H. Panel, pre ass'y, Jet Black. Includes 11 to 16L.H. Panel, pre ass'y, Jet Black. Includes 11 to 16
-
12605251679 R.H. FoamR.H. Foam
-
12605252003 L.H. FoamL.H. Foam
-
1344001 R.H. Reflection sheetR.H. Reflection sheet
-
1444001 L.H. Reflection sheetL.H. Reflection sheet
-
15605352689 R.H. Side grillR.H. Side grill
-
15605352690 L.H. Side grillL.H. Side grill
-
1640887 Wronic-screw 4.2 x 9.5Wronic-screw 4.2 x 9.5
-
17517302823 Hinge lockHinge lock
-
1836015 Rivet nut M5Rivet nut M5
-
1940072 Screw M5 x 16Screw M5 x 16
