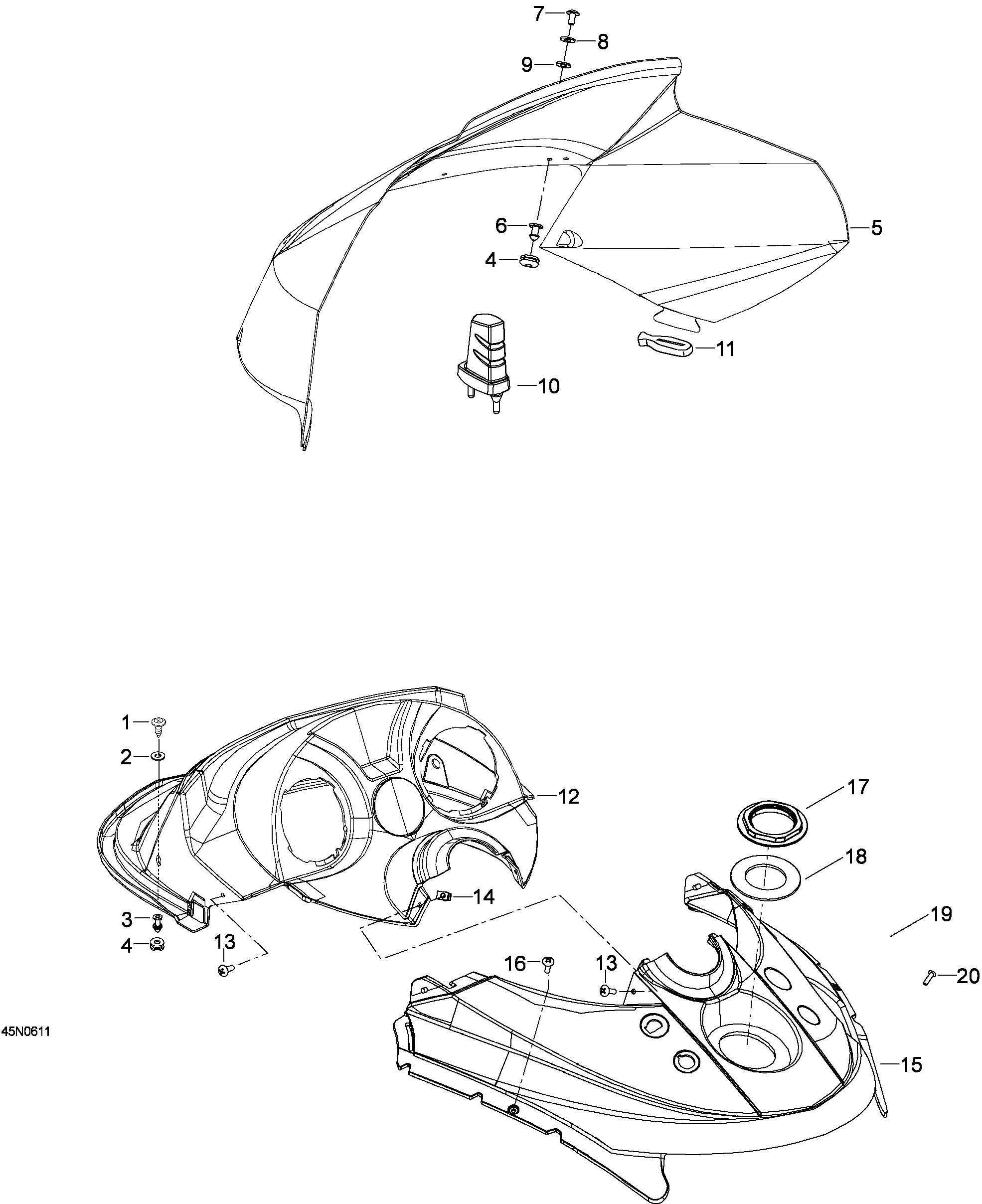

09- Windshiel And Console для BRP Lynx Rave Xtrim N-Duro 600HO SDI - 2006
-
№АртикулНазвание
-
1208651481 Screw M5 x 14Screw M5 x 14
-
2250200025 WasherWasher
-
3517302719 KnobKnob
-
4517302841 GrommetGrommet
-
5605150102 WindshieldWindshield
-
6517303439 KnobKnob
-
7250000146 ScrewScrew
-
8250200025 WasherWasher
-
9250200024 Rubber washerRubber washer
-
10605353583 SupportSupport
-
11570023800 LatchLatch
-
12605254000 Console, front, Jet BlackConsole, front, Jet Black
-
13732600030 ScrewScrew
-
1433033 NutNut
-
15605253165 Console, rear, Jet BlackConsole, rear, Jet Black
-
16
-
17517302043 NutNut
-
185447116 GasketGasket
-
19605352372 ProtectorProtector
-
2036097 RivetRivet
