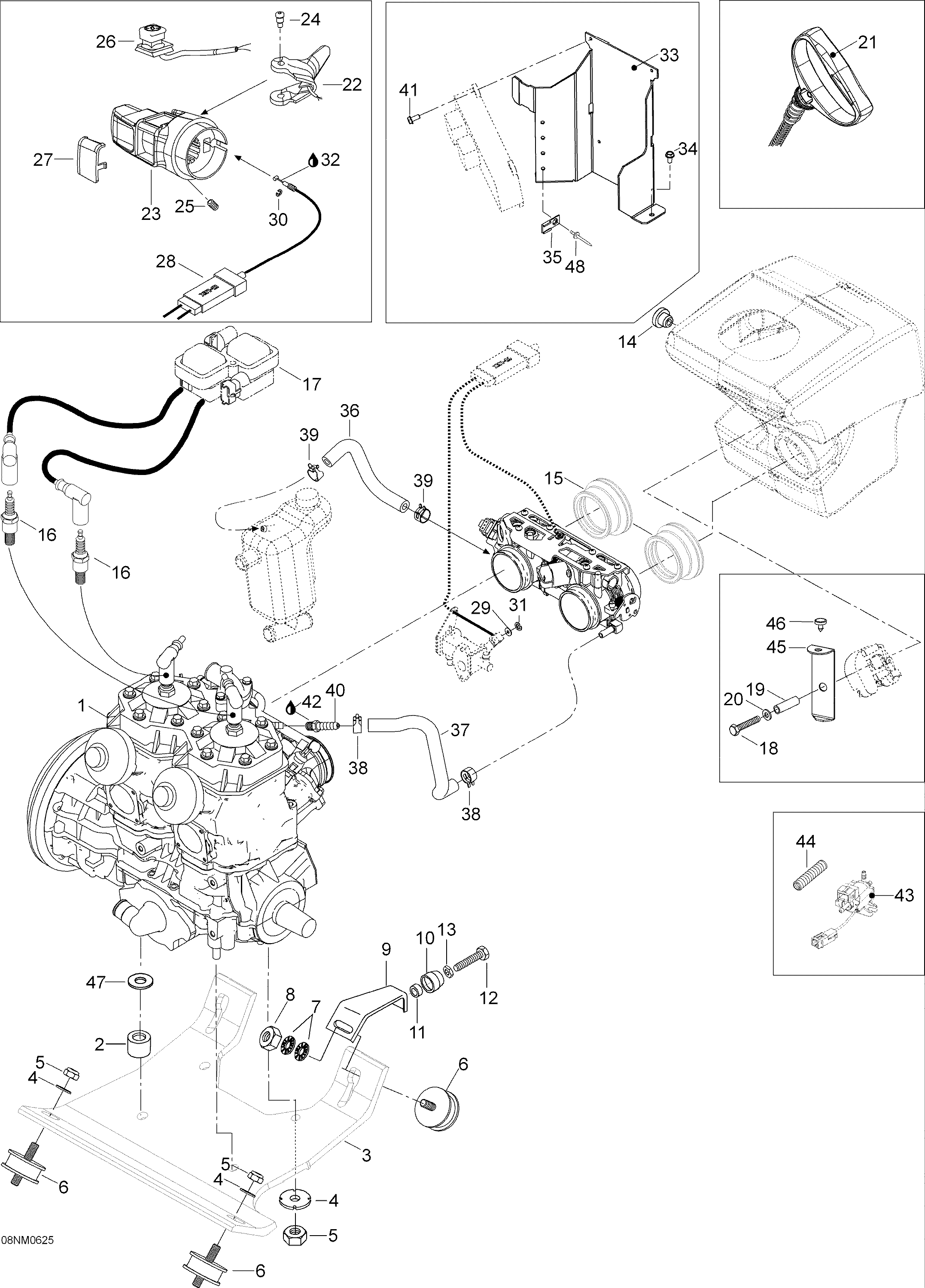

01- Engine And Engine Support для BRP Lynx Yeti 600 SDI - 2006
-
№АртикулНазвание
-
1350593395 Engine 590 SDIEngine 590 SDI
-
25446347 SleeveSleeve
-
3605251437 Engine supportEngine support
-
4512056700 Lock washerLock washer
-
533012 Elastic stop nut M10Elastic stop nut M10
-
6570128700 RubberRubber
-
720068 Lockwasher D10 (Nord-Lockwasher D10 (Nord-
-
833004 Nut M10Nut M10
-
9605352447 SupportSupport
-
10605449240 SleeveSleeve
-
112846014 Rubber sleeveRubber sleeve
-
1240121 Hex.screw M8 x 40Hex.screw M8 x 40
-
1333003 Nut M8Nut M8
-
14570065500 GrommetGrommet
-
15605351756 GrommetGrommet
-
16512060028 Spark plug BR8ECSSpark plug BR8ECS
-
17278001546 Ignition coil ass'yIgnition coil ass'y
-
1840084 Hex. screw M6 x 45Hex. screw M6 x 45
-
19512059812 SleeveSleeve
-
20234161471 Lock washer 6mmLock washer 6mm
-
21572084400 GripGrip
-
22512059107 Throttle handleThrottle handle
-
23512059763 Throttle handle housingThrottle handle housing
-
24732601143 ScrewScrew
-
25414440800 ScrewScrew
-
26515175410 Emergency switchEmergency switch
-
27572100901 CoverCover
-
28512059362 Throttle cableThrottle cable
-
29234081100 WasherWasher
-
3031035 CirclipCirclip
-
3131038 CirclipCirclip
-
32293550004 Dielectric greaseDielectric grease
-
33605353805 Support plate, ECUSupport plate, ECU
-
3440327 Hex. screw M6 x 12Hex. screw M6 x 12
-
35515175917 ClipClip
-
36509000093 HoseHose
-
37512059990 HoseHose
-
38414655700 ClampClamp
-
39293650170 ClampClamp
-
40512059970 Straight fittingStraight fitting
-
41210251680 Screw M5 x 16Screw M5 x 16
-
42293800018 Loctite 592, pipe sealant, 50mlLoctite 592, pipe sealant, 50ml
-
43512059809 SupportSupport
-
4428004 TubingTubing
-
45605352895 Support, hoodSupport, hood
-
46605452114 PluggPlugg
-
4720105 Washer, hardened M10Washer, hardened M10
-
4836005 RivetRivet
