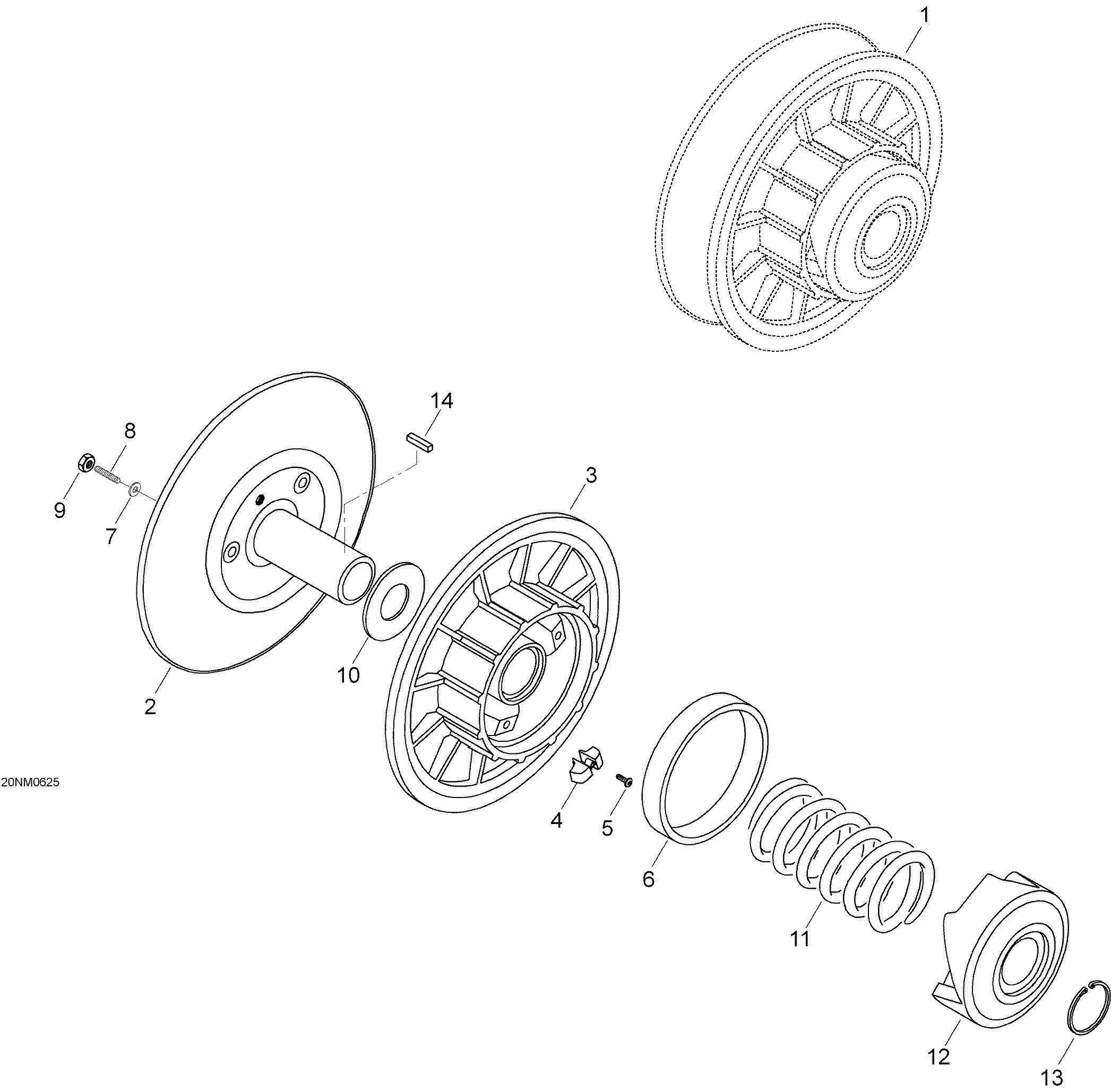

05- Driven Pulley для BRP Lynx Yeti 600 SDI - 2006
-
№АртикулНазвание
-
114490 Driven pulley ass'y. NA, Includes 1 to 13Driven pulley ass'y. NA, Includes 1 to 13
-
114489 Driven pulley ass'y. Europe, Includes 1 to 13Driven pulley ass'y. Europe, Includes 1 to 13
-
2140065 Fixed flangeFixed flange
-
3140066 Sliding flange. Includes 3 to 6Sliding flange. Includes 3 to 6
-
4140068 Shoe cam sliderShoe cam slider
-
5619100006 Hex. screw setHex. screw set
-
6140005 BushingBushing
-
7420245370 WasherWasher
-
8619100003 Screw setScrew set
-
9232061414 NutNut
-
10504099600 WasherWasher
-
11140056 Release springRelease spring
-
12140070 Cam 35/30 degr.. NACam 35/30 degr.. NA
-
12140067 Cam 40/30 degr.. EuropeCam 40/30 degr.. Europe
-
13371903100 CirclipCirclip
-
14417119400 KeyKey
