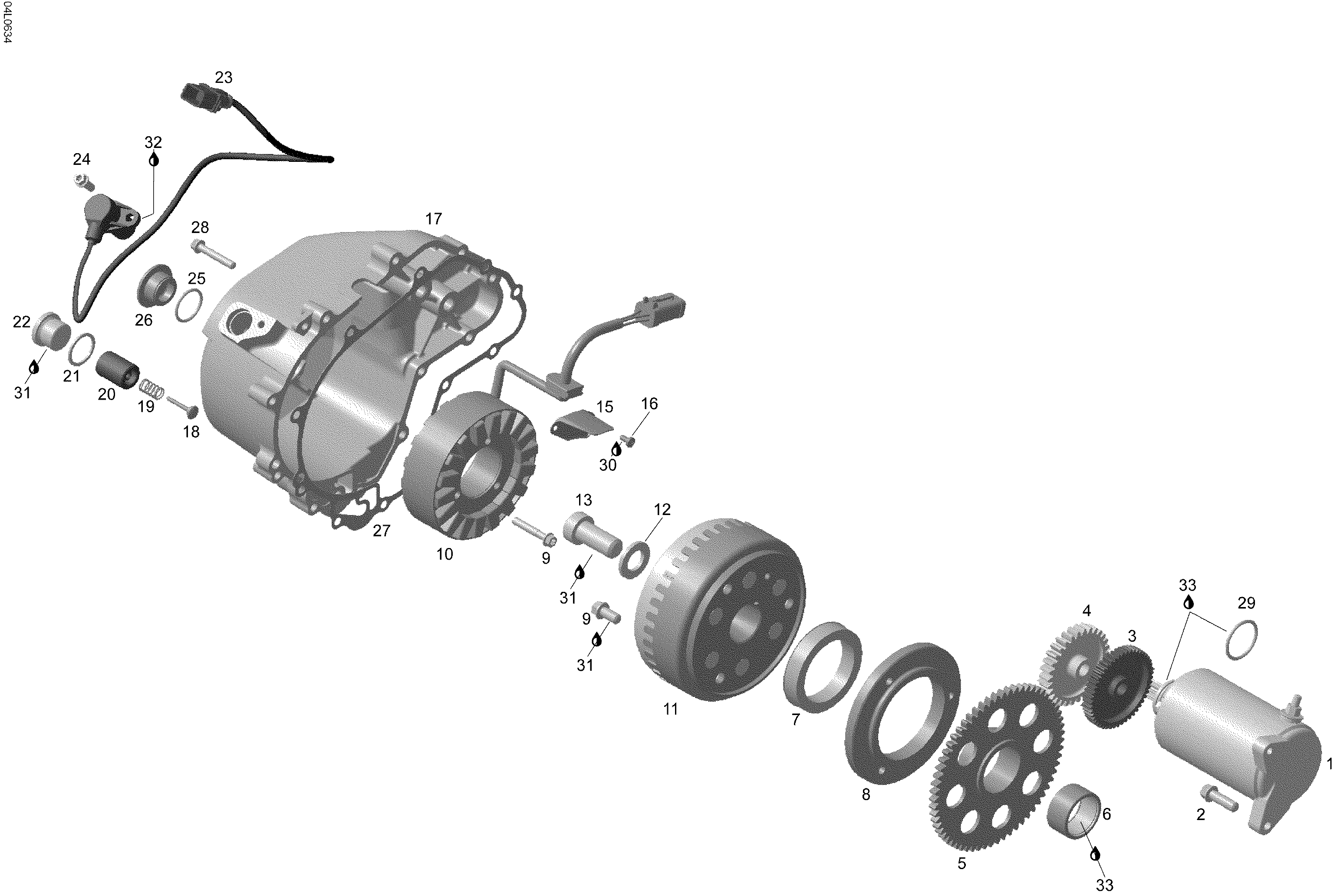

01- Ignition для BRP Lynx YETI SUV V-800 - 2006
-
№АртикулНазвание
-
1420684560 Electric starter ass'yElectric starter ass'y
-
2420440372 Screw M8 x 25Screw M8 x 25
-
3420634740 Starter double gear (11/49)Starter double gear (11/49)
-
4420634600 Starter intermediate gear (30)Starter intermediate gear (30)
-
5420434235 Gear (64)Gear (64)
-
7420659112 Sprag clutchSprag clutch
-
8420659260 Housing, sprag clutchHousing, sprag clutch
-
9420440852 Screw M8 x 16Screw M8 x 16
-
10420684852 Stator ass'yStator ass'y
-
11420684867 Magneto flywheel with trigger wheel ass'yMagneto flywheel with trigger wheel ass'y
-
12420627270 ShimShim
-
13420241545 Socket head screw M6 x 35Socket head screw M6 x 35
-
14420440277 Screw M6 x 35Screw M6 x 35
-
15420251880 Cable holderCable holder
-
16420240195 Screw M4 x 8Screw M4 x 8
-
17420611130 Ignition coverIgnition cover
-
18420656370 Pressure retaining valvePressure retaining valve
-
19420939480 SpringSpring
-
20420256486 Pressure retaining valve housingPressure retaining valve housing
-
21420650465 Gasket ringGasket ring
-
22420640270 PlugPlug
-
23420966570 Crank position triggerCrank position trigger
-
24420440167 Screw M6 x 16Screw M6 x 16
-
25420430782 O-ringO-ring
-
26420241630 PlugPlug
-
27420651200 GasketGasket
-
28420440277 Screw M6 x 35Screw M6 x 35
-
29420250140 O-ringO-ring
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31420899788 Loctite 648, 5gLoctite 648, 5g
-
32293550014 Grease, super lubeGrease, super lube
-
33293600054 Engine oil 4 strokes, 0 W 40, 12 x 1 literEngine oil 4 strokes, 0 W 40, 12 x 1 liter
-
34420297430 Copa slipCopa slip
