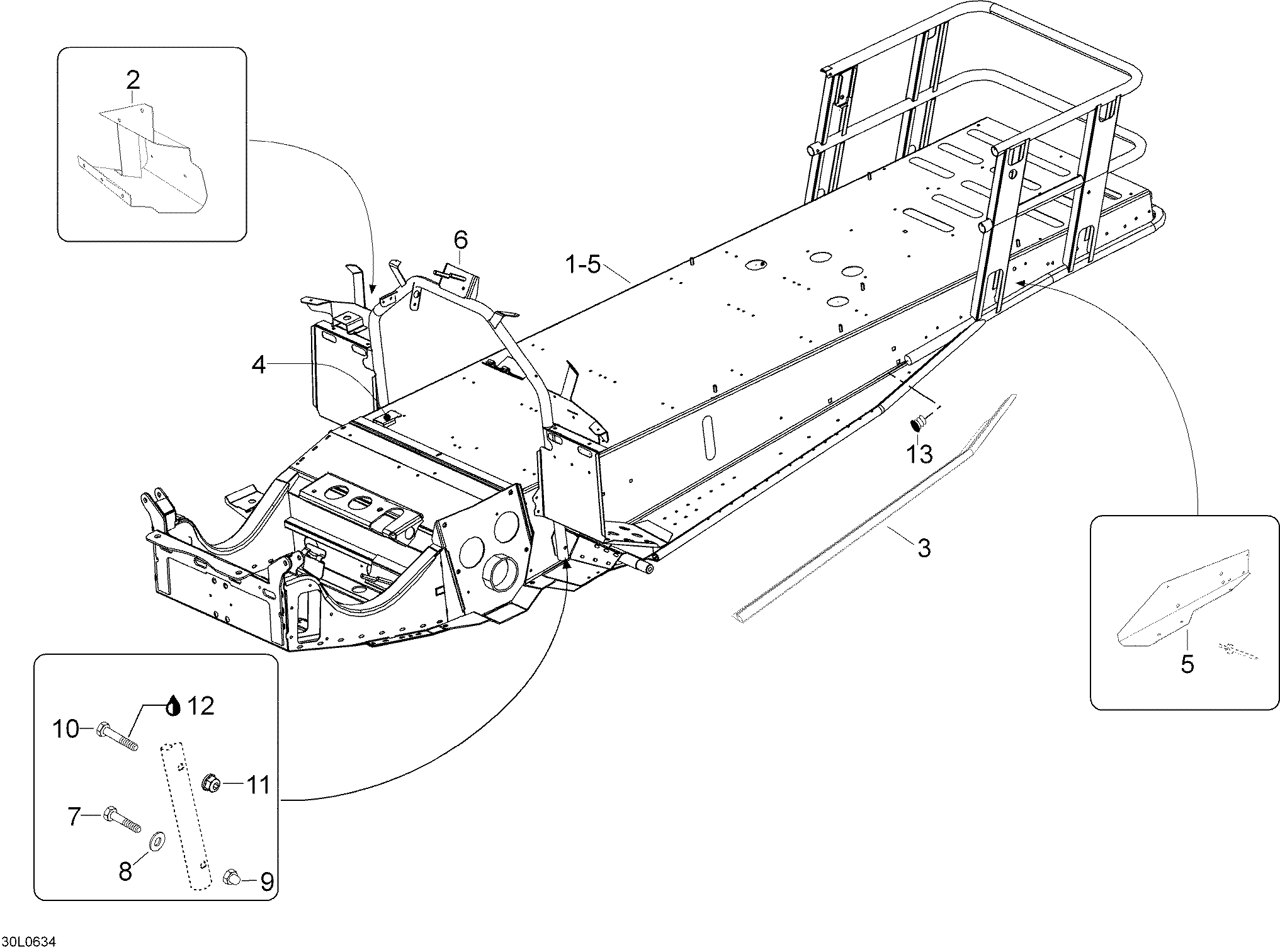

09- Frame для BRP Lynx YETI SUV V-800 - 2006
-
№АртикулНазвание
-
1605152944 Frame ass'y. Includes 1 to 5Frame ass'y. Includes 1 to 5
-
2605350839 R.H. FootrestR.H. Footrest
-
2605350840 L.H. FootrestL.H. Footrest
-
3605250773 L.H. SupportL.H. Support
-
3605250774 R.H. SupportR.H. Support
-
4605351505 BracketBracket
-
5605350845 L.H. BracketL.H. Bracket
-
5605350846 R.H. BracketR.H. Bracket
-
6605150605 Steering supportSteering support
-
740003 Hex. screw M6 x 35Hex. screw M6 x 35
-
820003 Washer A6,4Washer A6,4
-
933051 Nut M6Nut M6
-
1040002 Hex. screw M6 x 40Hex. screw M6 x 40
-
1133200 Elastic flanged nut M6Elastic flanged nut M6
-
12293800060 Loctite 243 10mlLoctite 243 10ml
-
1328210 PlugPlug
