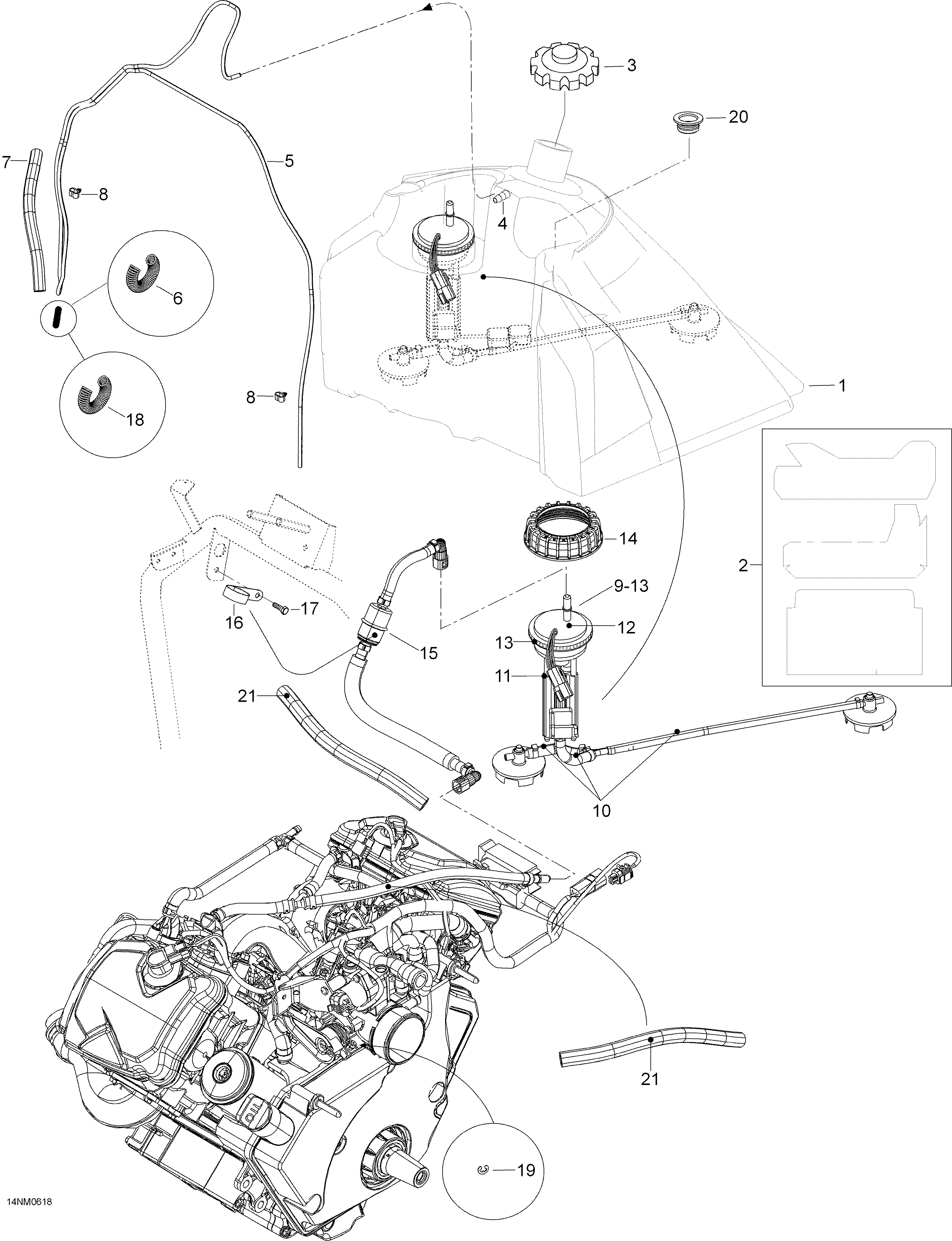

02- Fuel system для BRP Lynx YETI TUV V-1300 - 2006
-
№АртикулНазвание
-
1605153637 Fuel tankFuel tank
-
2619690001 Reflective sheet (1000mm x 1000 mm)Reflective sheet (1000mm x 1000 mm)
-
3580259400 CapCap
-
419051 NippelNippel
-
539035 HoseHose
-
625006 SpringSpring
-
8513032923 Tube clampTube clamp
-
9605351840 Fuel pump ass'y. Includes 9 to 13Fuel pump ass'y. Includes 9 to 13
-
1019183 Fuel hose kitFuel hose kit
-
11861302600 Pump kitPump kit
-
12861302100 Rekulator kitRekulator kit
-
1319186 GasketGasket
-
14513033040 CoverCover
-
15513033106 Fuel hose + filterFuel hose + filter
-
16513033047 ClampClamp
-
1740327 Hex. screw M6 x 12Hex. screw M6 x 12
-
1825003 SpringSpring
-
1931035 CirclipCirclip
-
20293720058 GrommetGrommet
-
2139065 Al-tubingAl-tubing
