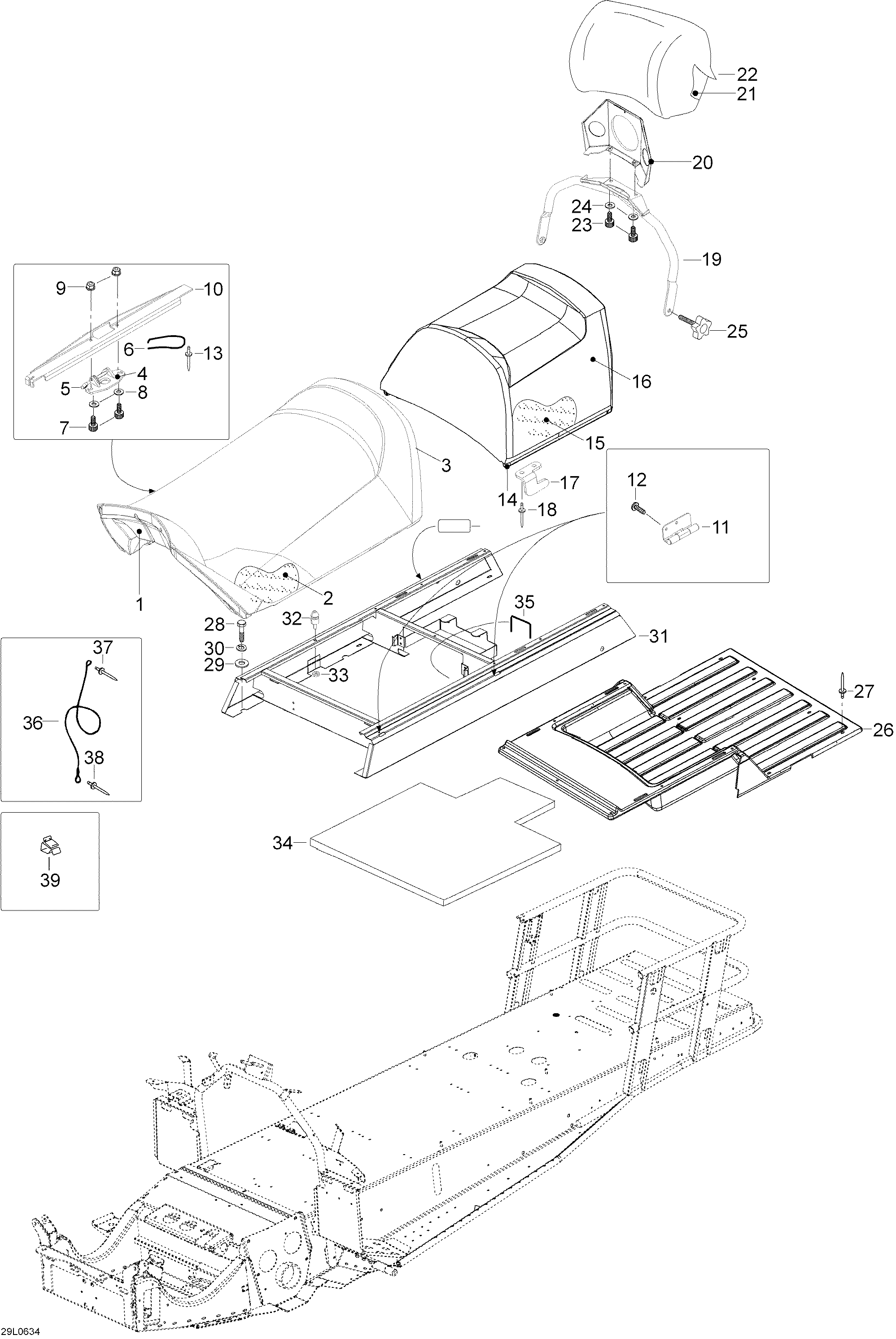

09- Seat для BRP Lynx YETI TUV V-1300 - 2006
-
№АртикулНазвание
-
1605251388 Seat baseSeat base
-
2605251389 FoamFoam
-
3605251422 CoverCover
-
4269700076 CoverCover
-
5269700077 Lock plateLock plate
-
6269700017 SpringSpring
-
740276 Socket head screw M6 x 25Socket head screw M6 x 25
-
820003 Washer A6,4Washer A6,4
-
933010 Elastic stop nut M6Elastic stop nut M6
-
10605352483 BracketBracket
-
11605351798 HingeHinge
-
1240890 Wronic-screw 4,2 x 16Wronic-screw 4,2 x 16
-
1336088 RivetRivet
-
14605251390 Seat baseSeat base
-
15605251391 FoamFoam
-
16605251425 CoverCover
-
17605351808 L.H. Locking plateL.H. Locking plate
-
17605352007 R.H. Locking plateR.H. Locking plate
-
1836087 RivetRivet
-
19605251731 BackrestBackrest
-
20605252096 Support plateSupport plate
-
21605252104 FoamFoam
-
22605251431 CoverCover
-
2340066 Socket head screw M8 x 16Socket head screw M8 x 16
-
2420014 Lock washer A8Lock washer A8
-
25510003533 Handle M8 x 35Handle M8 x 35
-
26605151397 Tunnel coverTunnel cover
-
2736036 RivetRivet
-
2840029 Screw M6 x 16Screw M6 x 16
-
2920009 Washer A6,4Washer A6,4
-
3020052 Lock washer A6Lock washer A6
-
31605251807 Seat boxSeat box
-
32605452035 PinPin
-
3333010 Elastic stop nut M6Elastic stop nut M6
-
34605352460 FoamFoam
-
3528413 Sealing listSealing list
-
36546777 Retainer cableRetainer cable
-
3736037 RivetRivet
-
3836489 RivetRivet
-
39414227300 ClipClip
